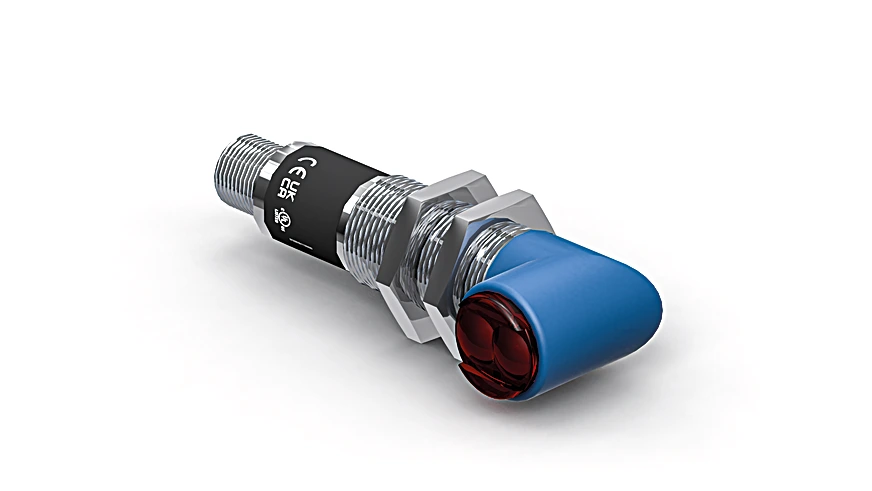

Wenglor HW11PA3 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$224.00
Part Number
  • HW11PA3
Highlights...

Features

  • Stainless steel housing
  • Adjustable switching distance
  • Electronic background suppression
  • Red light
  • Range: 120 mm
  • Setting Range: 35 to 120 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 600 Hz
  • Response Time: 833 µs

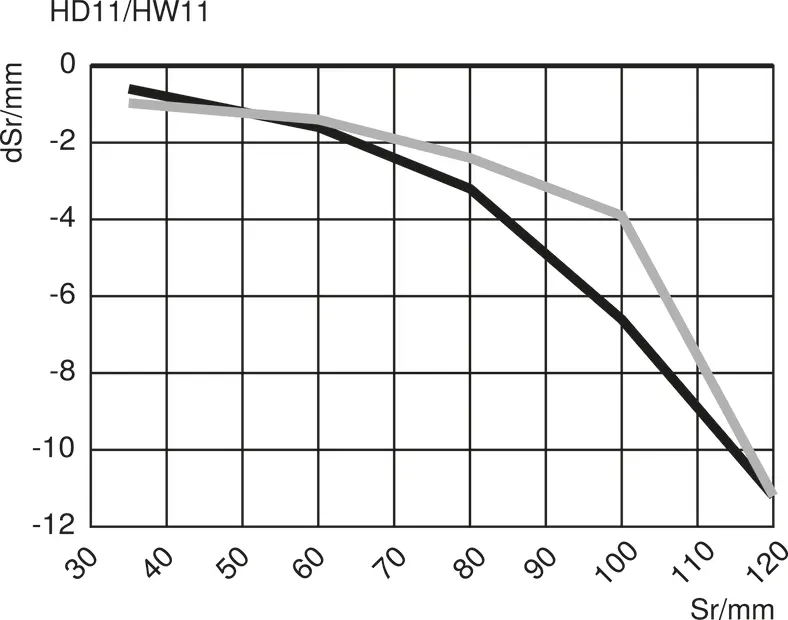

  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

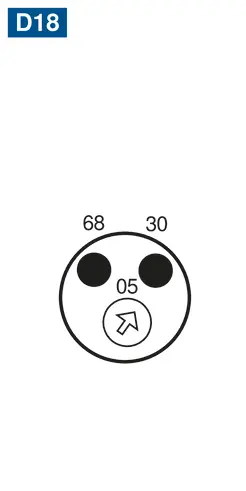

  • Setting Method: Potentiometer
  • Housing Material: Stainless steel, V2A (1.4305/303), Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 39 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • PNP NC, PNP NO: yes
  • Circuit: NC, NC+NO, NO
  • Detection Range: 60 mm, 120 mm
  • Light Spot Diameter: 2,5 mm, 5 mm
  • Complementary Products: PNP-NPN Converter BG2V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
