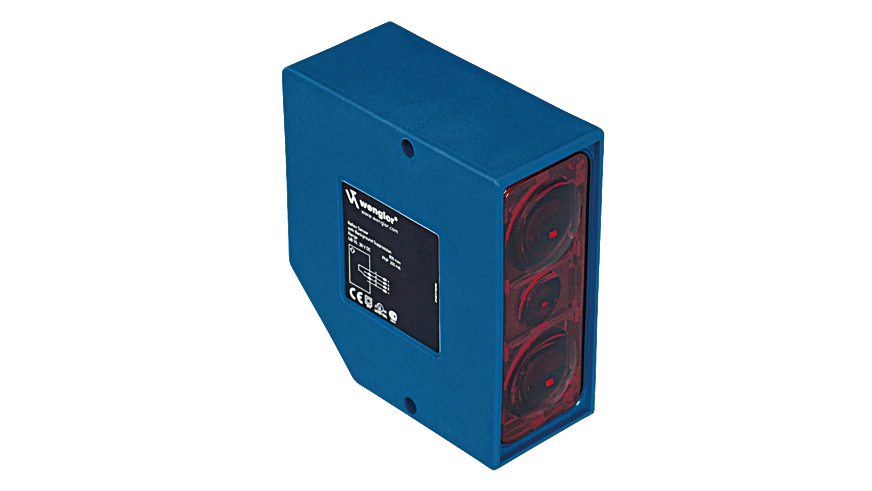

Wenglor HT77PBV3 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$569.00
Part Number
  • HT77PBV3
Highlights...

Features

  • Triple beam correction principle
  • Infrared light
  • Plug can be rotated
  • Adjustable time delay
  • Range: 1,500 mm
  • Setting Range: 300 to 1,500 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): 40 mA
  • Switching Frequency: 300 Hz
  • Response Time: 1.7 ms
  • Off-Delay: 0 to 1 s
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Contamination Output Voltage Drop: < 2.5 V
  • PNP Contamination Output/Switching Current: 50 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

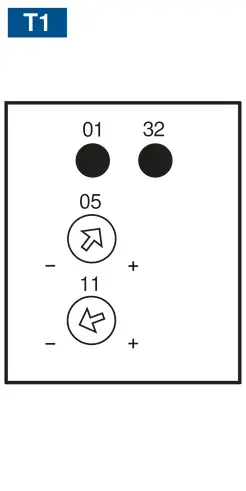

  • Setting Method: Potentiometer
  • Housing Material: Plastic, PBT
  • Degree of Protection: IP67

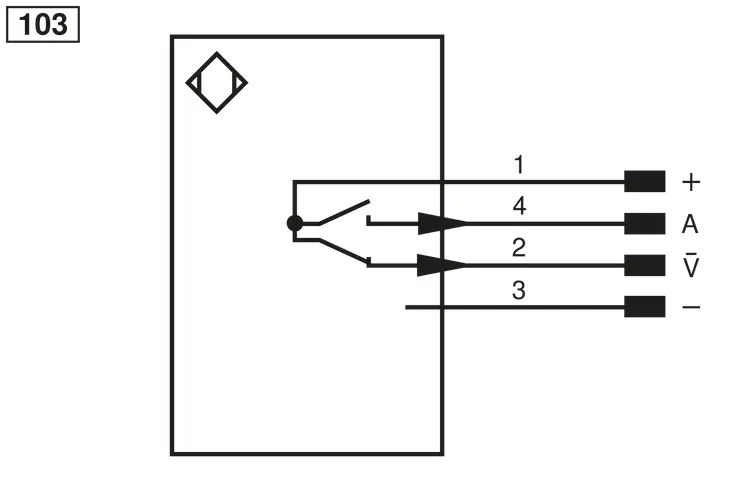

  • Connection: M12 × 1; 4-pin
  • Weight: 125 g
  • Scope of delivery: 1 × BEF-SET-03 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Contamination Output: yes
  • PNP NO: yes
  • Detection Range: 300 mm, 800 mm, 1500 mm
  • Light Spot Diameter: 6 mm, 18 mm, 30 mm
  • Complementary Products: PNP-NPN Converter BG2V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
