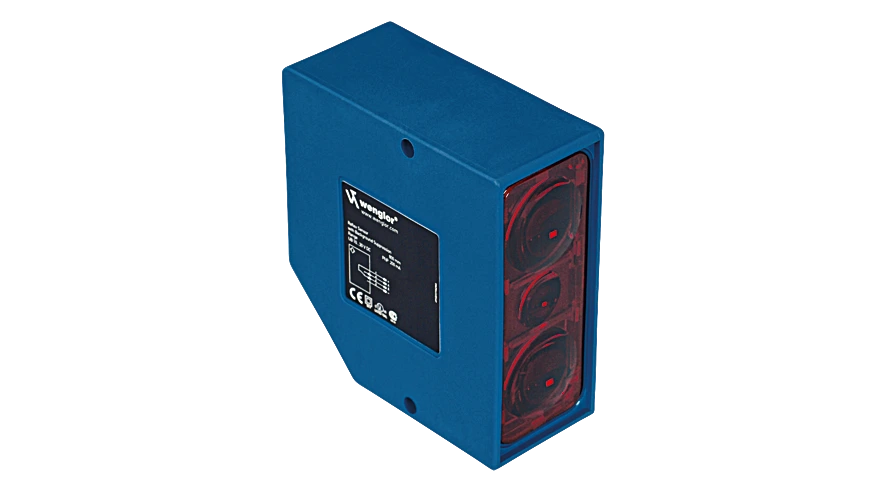

Wenglor HT77MGV80 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$816.00
Part Number
  • HT77MGV80
Highlights...

Features

  • Digital, analog and error output
  • Triple beam correction principle
  • Go/no-go testing possible
  • Infrared light
  • Working Range: 300 to 1,300 mm
  • Measuring Distance: 800 mm
  • Measuring Range: 1,000 mm
  • Resolution: see table 1

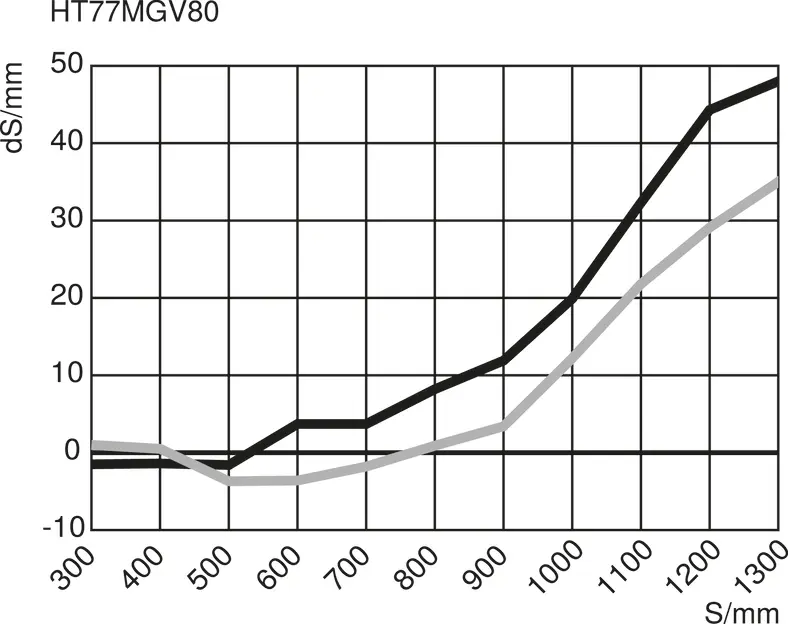

  • Linearity: 5 %
  • Switching Hysteresis: 50 mm
  • Light Source: Infrared Light
  • Wavelength: 880 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Principle: Triangulation
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 50 mA
  • Cut-Off Frequency: 50 Hz
  • Response Time: 10 ms
  • Temperature Drift: 500 µm/K
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Error Output Voltage Drop: < 2.5 V
  • PNP Error Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Output Current Analog Output: 500 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Plastic, PBT
  • Degree of Protection: IP67
  • Connection: M12 × 1; 8-pin
  • Weight: 192 g
  • Scope of delivery: 1 × BEF-SET-03 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • PNP NO: yes
  • Analog Output: yes
  • Working Distance: 300 mm, 800 mm, 1300 mm
  • Light Spot Diameter: 6 mm, 18 mm, 30 mm
  • Resolution: 0,2 mm, 8 mm, 30 mm
  • Complementary Products: Analog Evaluation Unit AW02, IO-Link converter

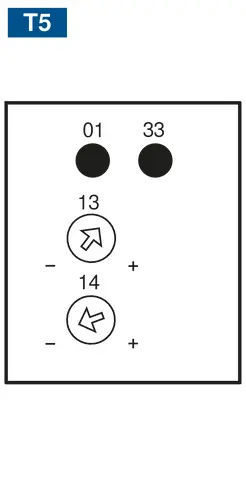

These sensors are equipped with an analog output, as well as a digital output. The upper and lower switching points of the digital output can be adjusted with two potentiometers. The digital output is activated when an object is located within the window defined in this way.
