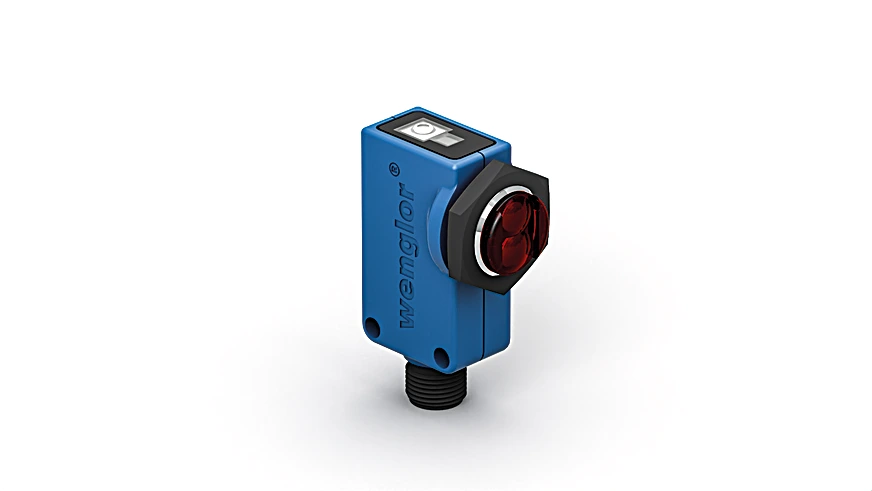

Wenglor HR12PCT2 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$456.00
Part Number
  • HR12PCT2
Highlights...

Features

  • Electronic background suppression
  • Red light
  • Simple installation
  • Teach-in, external teach-in
  • Range: 120 mm
  • Setting Range: 35 to 120 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 750 Hz
  • Response Time: 667 µs
  • On-/Off-Delay (RS-232): 0 to 1 s
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: HT, VT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 45 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • PNP NO: yes
  • RS-232 with Adapterbox: yes
  • External teach-in input: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay
  • Detection Range: 60 mm, 120 mm
  • Light Spot Diameter: 2,5 mm, 5 mm
  • Complementary Products: Adapterbox A232, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M, Software
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance. The sensor is easy to install with its integrated M18 threaded fixation, and can be easily protected as well.
