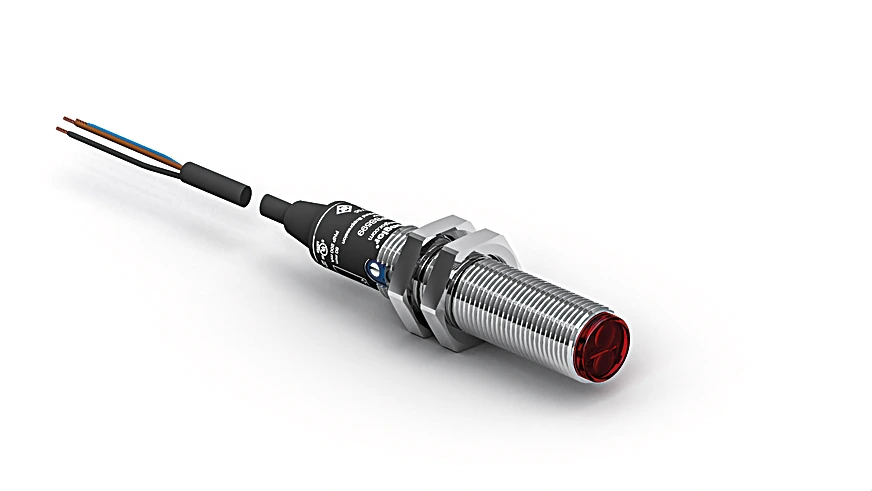

Wenglor HO08PBS599 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$540.00
Part Number
  • HO08PBS599
Highlights...

Features

  • High switching frequency
  • Adjustable switching distance
  • Large detection range
  • Excellent ambient light suppression
  • Range: 80 mm
  • Setting Range: 25 to 80 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1 kHz
  • Response Time: 500 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V

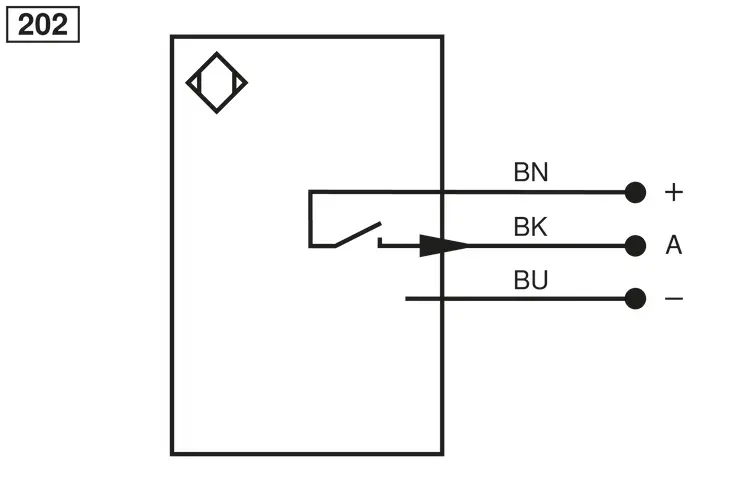

  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

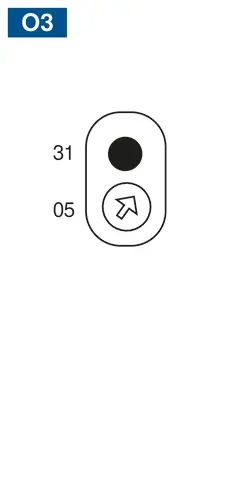

  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: Plug
  • Cable length (L): 250 mm
  • Cable Jacket Material: PVC
  • Weight: 19 g
  • MTTFd (EN ISO 13849-1): 2,489.75 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
  • PNP NO: yes
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance. Also these sensors don't influence each other if their light spots are pointed onto the same spot or against each other.
