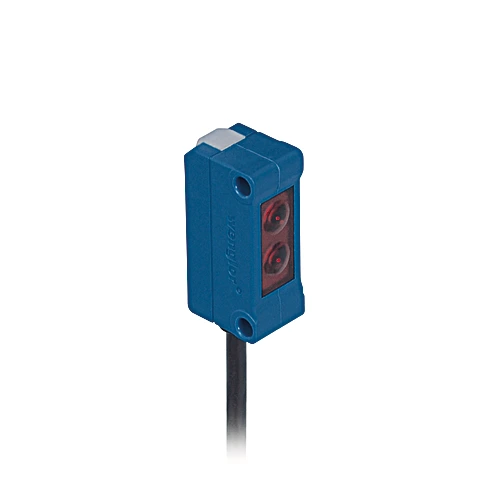

Wenglor HK12NA Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$385.00
Part Number
  • HK12NA
Highlights...

Features

  • Electronic background suppression
  • Miniature design
  • Red light
  • Switching distance adjuster
  • Range: 120 mm
  • Setting Range: 18 to 120 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 1,300 Hz
  • Response Time: 385 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III

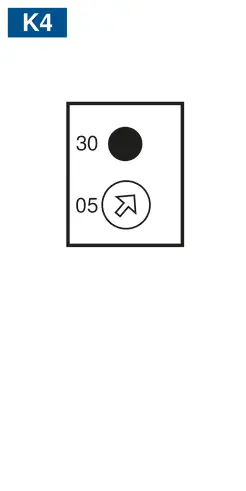

  • Setting Method: Potentiometer
  • Housing Material: Plastic
  • Full Encapsulation: yes
  • Degree of Protection: IP67

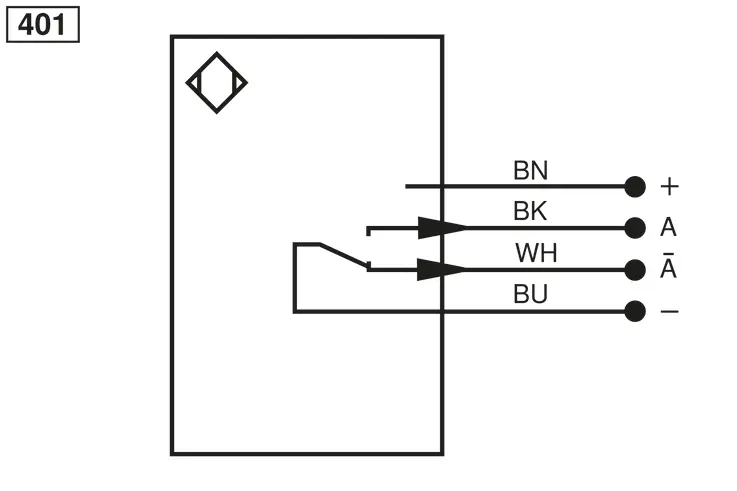

  • Connection: Cable; 4-wire
  • Cable length (L): 2 m
  • Wire cross-section: 0.14 mm²
  • Weight: 82 g
  • Scope of delivery: 1 × BEF-SET-01 mounting set, 1 × initial start-up instructions, 1 × sensor
  • NPN NC, NPN NO: yes
  • Circuit: NC, NC+NO, NO
  • Detection Range: 30 mm, 75 mm, 120 mm
  • Light Spot Diameter: 4 mm, 6 mm, 10 mm
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
