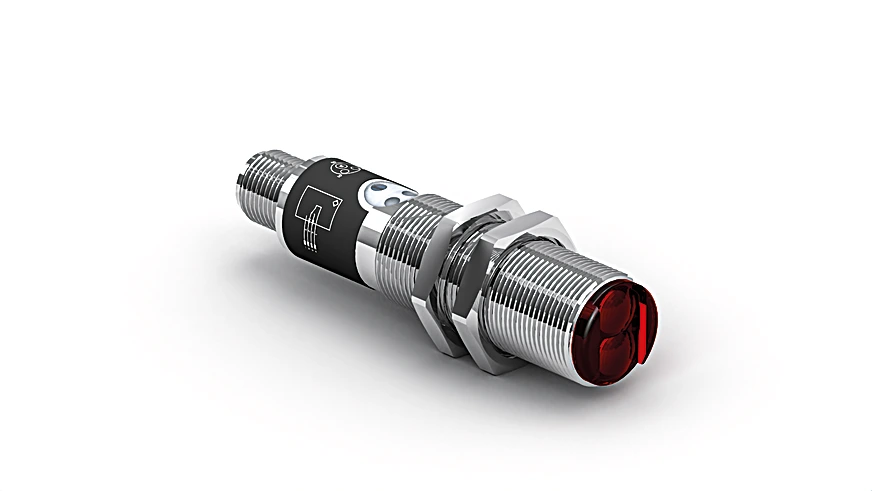

Wenglor HD12PCT3S745 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$694.00
Part Number
  • HD12PCT3S745
Highlights...

Features

  • Red light
  • Stainless steel housing
  • Electronic background suppression
  • Teach-in, external teach-in
  • Range: 120 mm
  • Setting Range: 35 to 120 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 750 Hz
  • Response Time: 667 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: HT, VT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 73 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • PNP NO: yes
  • RS-232 with Adapterbox: yes
  • External teach-in input: yes
  • Circuit: NC, NC/NO, NO
  • External Information: Off-Delay: 100 ms
  • Complementary Products: Adapterbox A232, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
