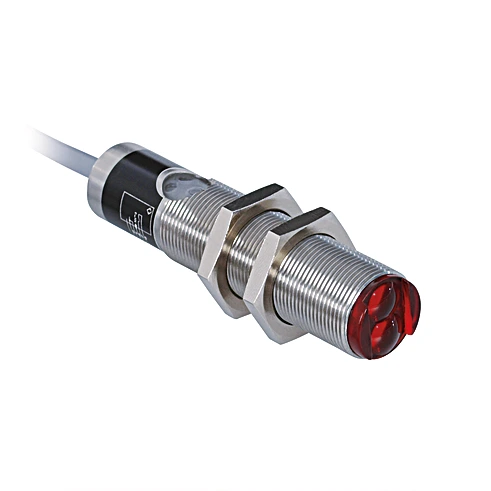

Wenglor HD09MG-P24 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$708.00
Part Number
  • HD09MG-P24
Highlights...

Features

  • Error message
  • Red light
  • Analog output
  • Working Range: 35 to 85 mm
  • Measuring Distance: 60 mm
  • Measuring Range: 50 mm
  • Resolution: 500 µm

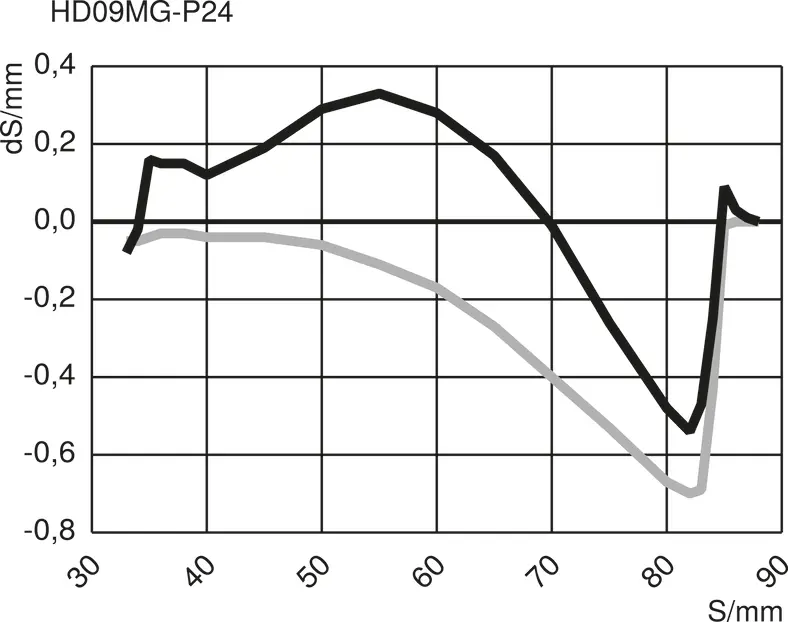

  • Linearity: < 2 %
  • Light Source: Red Light
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 2 mm
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Cut-Off Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Drift: 35 µm/K
  • Temperature Range: 14°F to 140°F
  • PNP Error Output/Switching Current: 200 mA
  • Analog Output: 0 to 10 V
  • Output Current Analog Output: 500 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

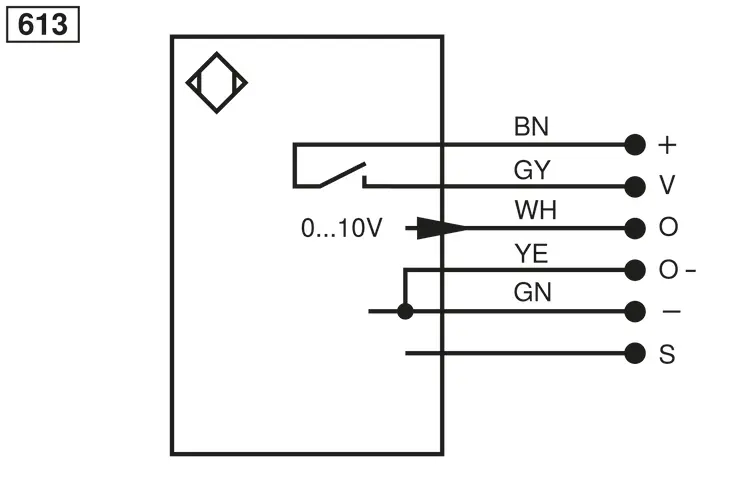

  • Connection: Cable; 6-wire
  • Cable length (L): 6 m
  • Cable Jacket Material: PVC
  • Wire cross-section: 0.14 mm²
  • Weight: 290 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • Analog Output: yes
  • Complementary Products: Analog Evaluation Unit AW02, IO-Link converter, Dust Extraction Tube STAUBTUBUS-01
These sensors can measure distances and display analog output. Their high resolution and wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object's color.
