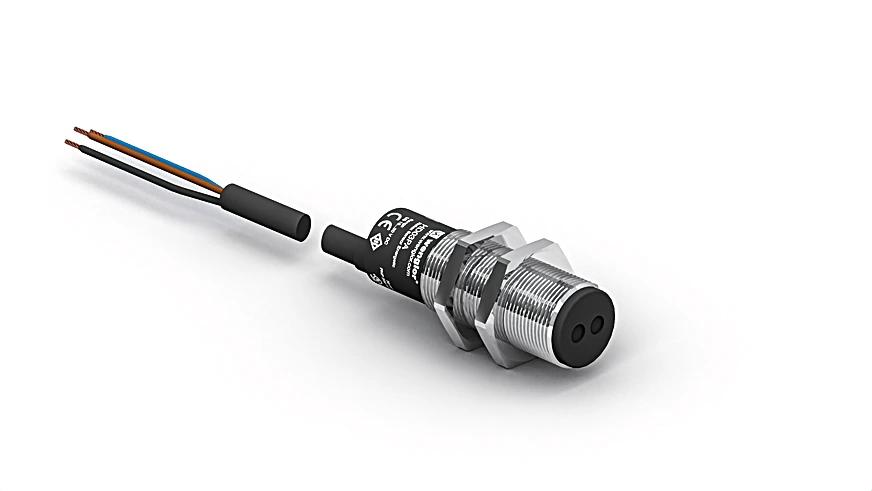

Wenglor HD03PA Reflex Sensor Energetic

Features

• Low-cost
• Quasi-background-suppression
• Fine focused optics
• Range: 30 mm
• Switching Hysteresis: < 15 %
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 12 °
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 1,500 Hz
• Response Time: 330 µs
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Brass, nickel-plated
• Full Encapsulation: yes
• Degree of Protection: IP67

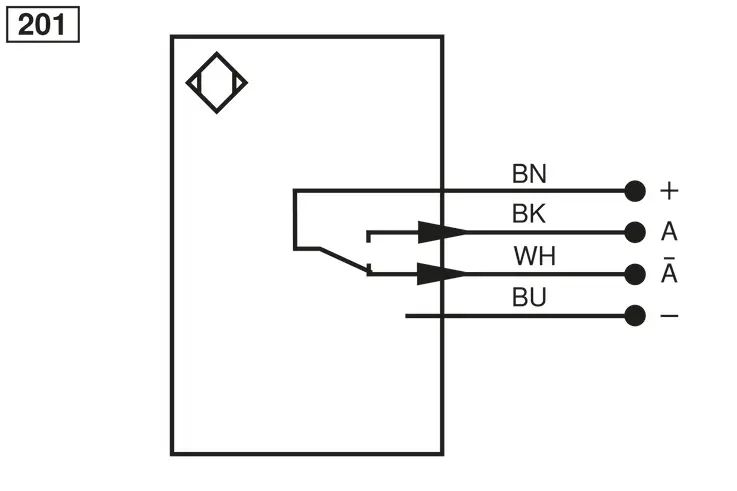

• Connection: Cable; 4-wire
• Cable length (L): 2 m
• Cable Jacket Material: Plastic, PVC
• Wire cross-section: 0.5 mm²
• Weight: 183 g
• MTTFd (EN ISO 13849-1): 2,337.8 a
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E001 hex nut, 1 × sensor
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• Complementary Products: Dust Extraction Tube STAUBTUBUS-01
