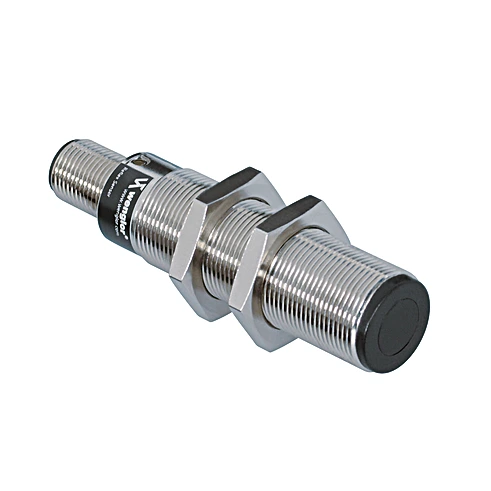

Wenglor HD03NB3 Reflex Sensor Energetic

Reflex Sensor Energetic.

$363.00
Part Number
  • HD03NB3
Highlights...

Features

  • Low-cost
  • Quasi-background-suppression
  • Fine focused optics
  • Range: 30 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 12 °
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1,500 Hz
  • Response Time: 330 µs
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • NPN Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67

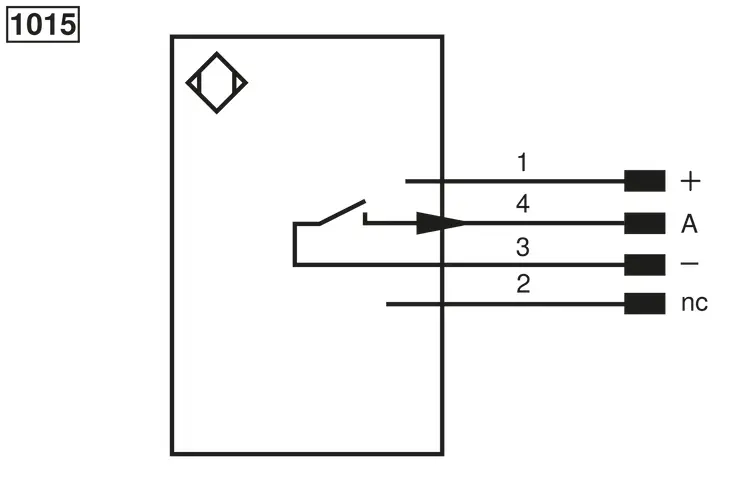

  • Connection: M12 × 1; 4-pin
  • Weight: 36 g
  • MTTFd (EN ISO 13849-1): 2,164.99 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E001 hex nut, 1 × sensor
  • NPN NO: yes
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01
Thanks to fine focusing optics the background is suppressed beyond 50 mm.
