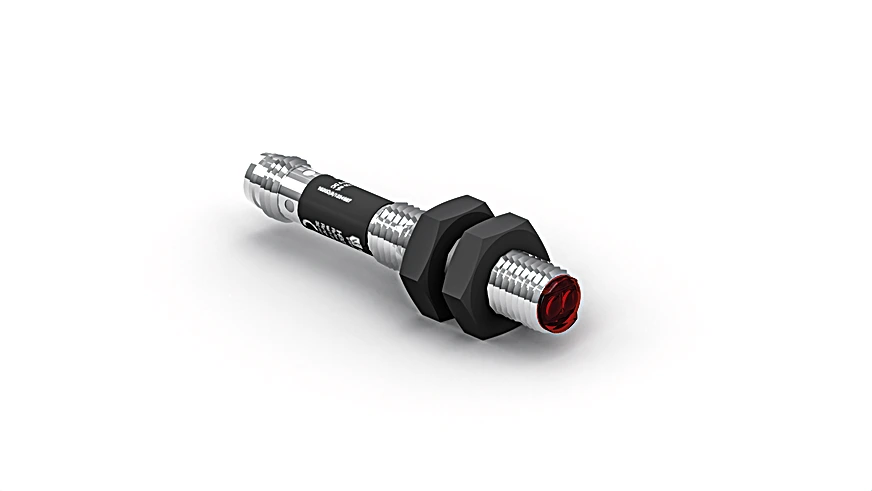

Wenglor HB03PDT7 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$201.00
Part Number
  • HB03PDT7
Highlights...

Features

  • Enclosed in M8 housing
  • Red light
  • Adjustable switching distance
  • Electronic background suppression
  • Range: 30 mm
  • Setting Range: 10 to 30 mm
  • Switching Hysteresis: < 10 %
  • Light Source: Red Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: 2 mm
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 600 Hz
  • Response Time: 833 µs
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP65 *

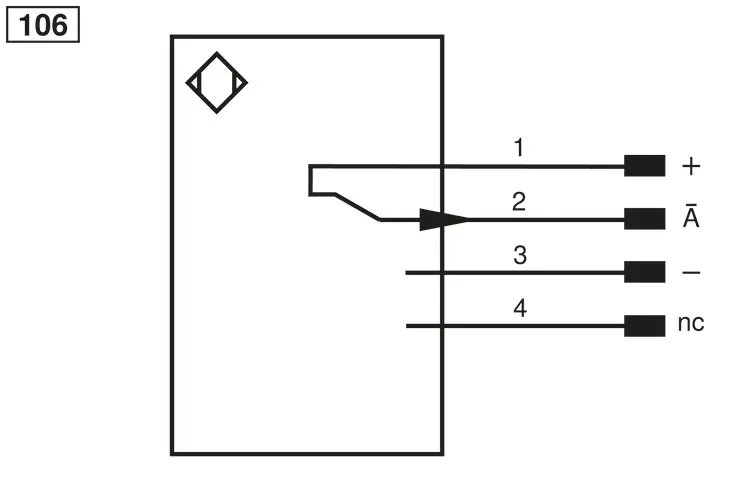

  • Connection: M8 × 1; 4-pin
  • Weight: 6 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M8-E002 hex nut, 1 × sensor
  • PNP NC: yes
  • Complementary Products: PNP-NPN Converter BG7V1P-N-2M
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
