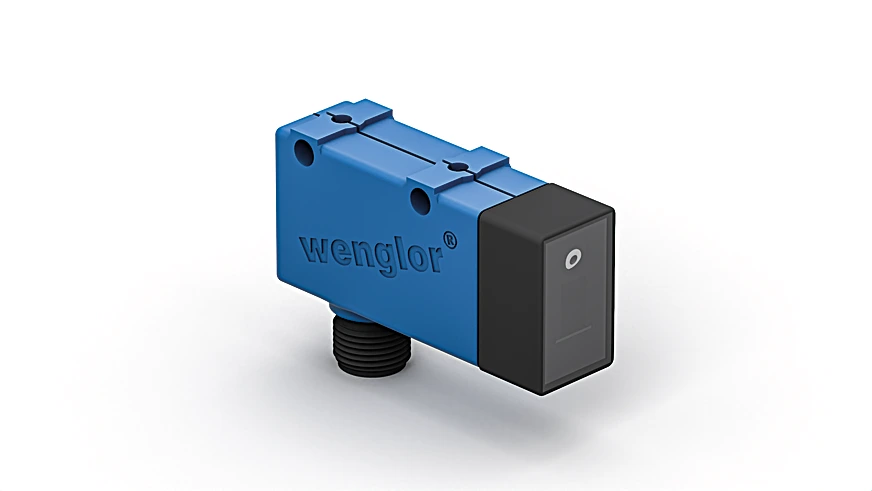

Wenglor GM04PB2 Gloss Sensor

Features

• Adjustable gloss level
• Practically independent of distance
• Reliable differentiation between glossy and matte objects
• IO-Link 1.1
• Working Range: 5 to 40 mm
• Light Source: Laser (red)
• Wavelength: 650 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 1
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 2
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 1,900 Hz
• Switching Frequency (interference-free mode): 1,200 Hz
• Response Time: 0.26 ms
• Response time (interference-free mode): 0.4 ms
• Temperature Drift: < 5 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• FDA Accession Number: 0820517-000
• IO-Link Version: 1.1
• Interface: IO-Link V1.1

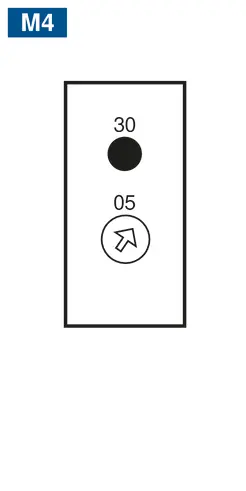

• Setting Method: Potentiometer
• Housing Material: Plastic, ABS, Plastic, PBT
• Optic Cover: Glass
• Full Encapsulation: yes
• Degree of Protection: IP67

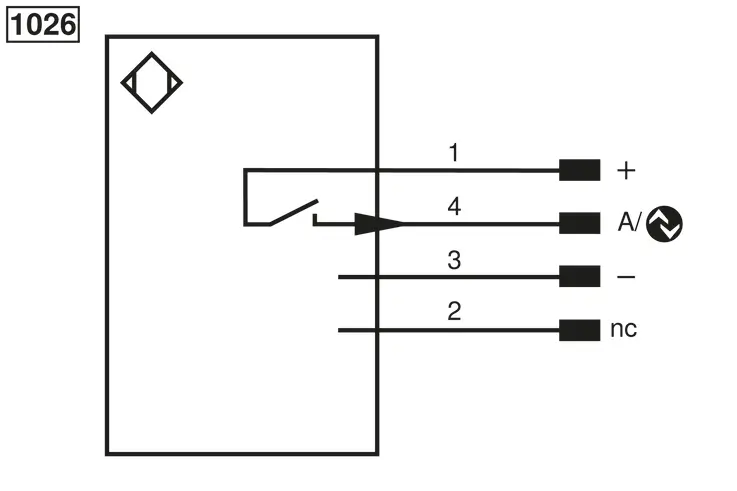

• Connection: M12 × 1; 4-pin
• Weight: 33 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NO: yes
• IO-Link: yes
• Circuit: NC, NC/NO, NO
• Remission from Object: > 30 %, ~ 18 %, ~ 6 %

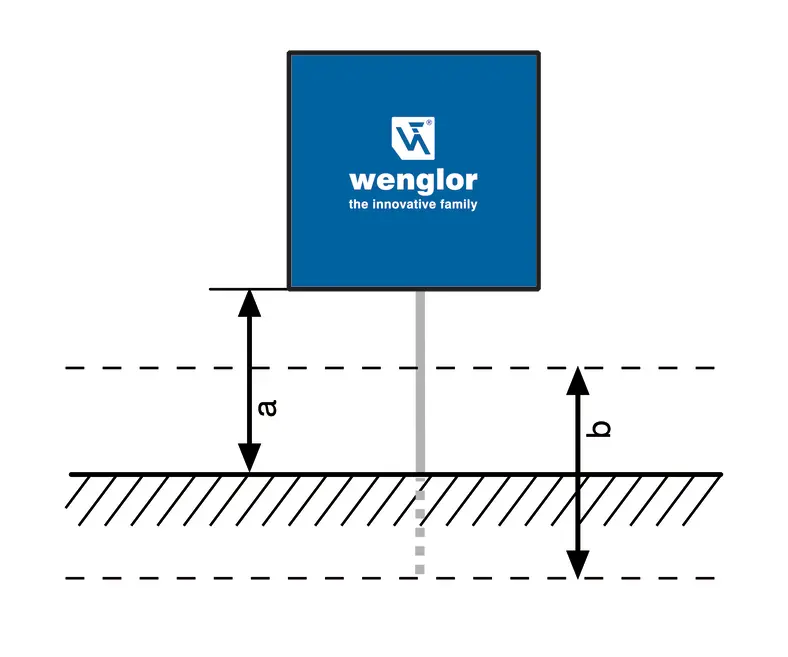

• Ideal Working Distance: 20 mm, 15 mm, 10 mm
• Working Range: ± 15 mm, ± 10 mm, ± 5 mm
• Complementary Products: IO-Link Master, Software
