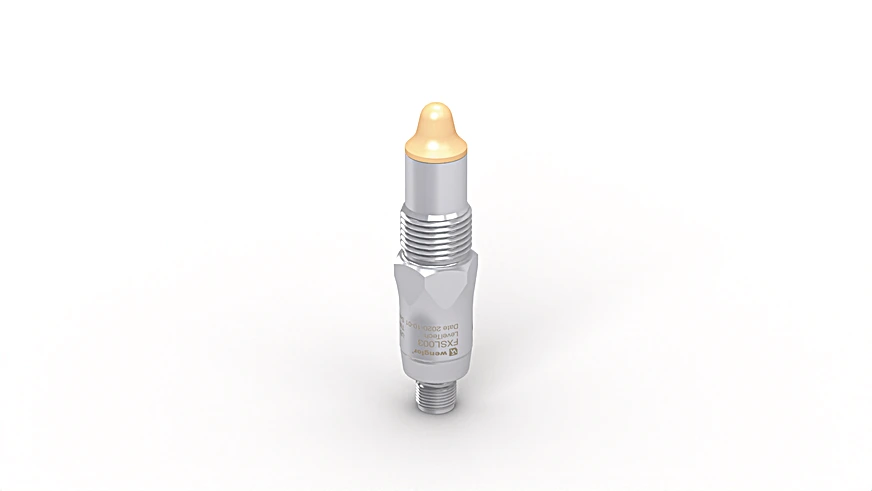

Wenglor FXSL003 Fill-level Sensor with IO-Link

Fill-level Sensor with IO-Link.

$328.00
Part Number
  • FXSL003
Highlights...

Features

  • Fill-level measurement in all media: liquid, pasty, sticky or solid
  • Process optimization with IO-Link 1.1
  • Quick sensor replacement with data storage
  • Two adjustable switching outputs
  • Measuring principle: Frequency sweep
  • Measuring Range > DK***: 1.5
  • Medium: Liquids, granulate, powder
  • Response Time: 0.04 s
  • Media temperature TM (TU < 122°F): -40°F to 239°F**
  • Media temperature TM brief
  • (TU < 122°F, t < 1 h): -40°F to 266°F
  • Ambient temperature: -40°F to 185°F
  • Storage temperature: -40°F to 185°F
  • Pressure Resistance: 10 bar
  • EMC: DIN EN 61326 *
  • Vibration resistance per DIN IEC 60068-2-6: 1,6 mm p-p (2 to 25 Hz), 4 g (25 to 100 Hz)
  • Supply Voltage: 8 to 36 V DC
  • Current Consumption (Ub = 24 V): < 35 mA
  • Number of Switching Outputs: 2
  • Power-up Time: < 3 s
  • Switching Output/Switching Current: 100 mA
  • Switching Output Voltage Drop: < 0.7 V
  • Signal source: Change of medium
  • Leakage Current: < 100 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: IO-Link V1.1
  • Setting Method: IO-Link
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Material in contact with media: Stainless steel, V4A (1.4404/316L), Plastic, PEEK
  • Degree of Protection: IP67, IP69K

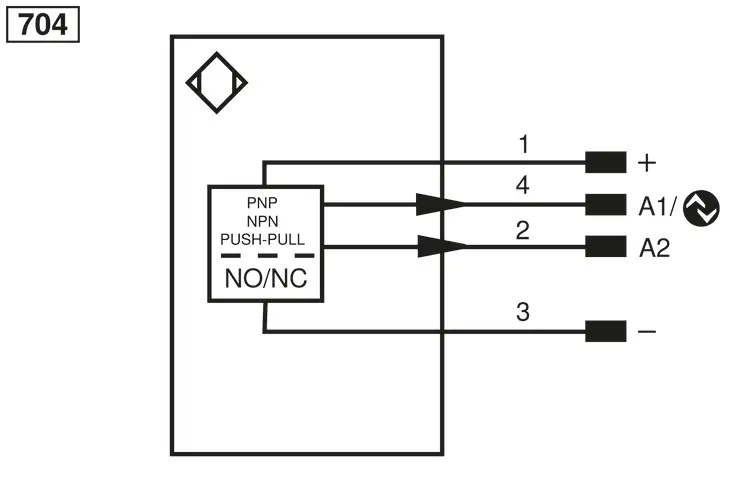

  • Connection: M12 × 1; 4-pin
  • Connector Plug Material: Stainless Steel
  • Process Connection: G 1/2'' hygienic
  • Weight: 75 g
  • MTTFd (EN ISO 13849-1): 686 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Attenuation (adjustable): 0 to 10 s
  • Selective fill-level measurement: yes
  • IO-Link: yes
  • Push-Pull: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: 2 switching points
  • Complementary Products: IO-Link Master, Software
LevelTech fill-level sensors work in accordance with the innovative frequency sweep principle. With the help of this functional principle, the sensors detect any desired medium on the basis of the measured resonant frequency. With their two adjustable switching outputs, the sensors are capable of differentiating between foam and liquid or two different media. Sensor parameters, as well as filter and output functions, can be individually configured via IO-Link. The stainless steel housing is FDA compliant and can be installed in the tightest of spaces thanks to its compact design.
