Wenglor FXFF104 Flow Sensor

Features

• 2 analog outputs: 4 to 20 mA
• FDA compliant
• A single sensor for flow and temperature
• Measurement independent of flow direction and instillation position
• Measuring Range: 10 to 400 cm/s
• Temperature of the medium, flow measurement: 32°F to 257°F**
• Temperature of the medium, temperature measurement: -13°F to 302°F
• Setting Range: 10 to 400 cm/s
• Medium: Water
• Measuring error (total): ≤ 2 %
• Temperature measurement error: ± 33.8°F
• MTTFd (EN ISO 13849-1): 1,210.41 a
• Response time in case of temperature jump: 10 s
• Step response time T90: < 5 s
• Ambient temperature: -13°F to 176°F
• Storage temperature: -13°F to 176°F
• Pressure Resistance: 100 bar
• EMC: DIN EN 61326-1
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 5 g (10 to 2000 Hz)
• Supply Voltage: 12 to 32 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Number of analog outputs: 2
• Analog Output: 4 to 20 mA
• Signal source: Flow
• Response Time: 1 to 5 s
• Operating delay time: < 10 s
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V4A (1.4404/316L)
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Rubber, FKM
• Degree of Protection: IP69K *, IP68 *

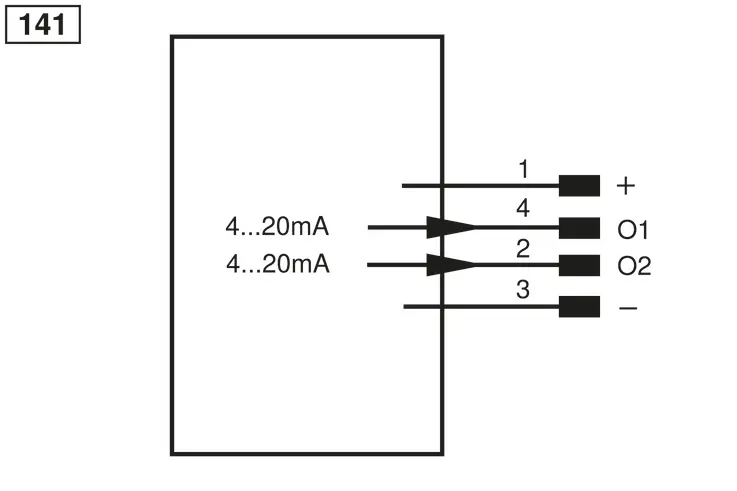

• Connection: M12 × 1; 4-pin
• Process Connection: Sealing cone M18 × 1,5
• Process Connection Length (PCL): 132 mm
• Probe Length (PL): 100 mm
• Rod diameter: 6 mm
• Weight: 303 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Approvals: FDA compliant
• Analog output flow: yes
• Analog output temperature: yes
• Signal source: Flow, Temperature
• Complementary Products: IO-Link converter, Software
