Wenglor FXFF007 Flow Sensor with IO-Link

Flow Sensor with IO-Link.

$478.00
Part Number
  • FXFF007
Highlights...

Features

  • A single sensor for flow and temperature
  • FDA compliant
  • Ready for Industry 4.0 with IO-Link 1.1
  • Measurement independent of flow direction and instillation position
  • Measuring Range: 10 to 400 cm/s
  • Temperature of the medium, flow measurement: 32°F to 257°F**
  • Temperature of the medium, temperature measurement: -13°F to 302°F
  • Setting Range: 10 to 400 cm/s
  • Medium: Water
  • Measuring error (total): ≤ 2 %
  • Temperature measurement error: ± 33.8°F
  • MTTFd (EN ISO 13849-1): 1,210.41 a
  • Response time in case of temperature jump: 10 s
  • Step response time T90: < 5 s
  • Ambient temperature: -13°F to 176°F
  • Storage temperature: -13°F to 176°F
  • Pressure Resistance: 100 bar
  • EMC: DIN EN 61326-1
  • Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
  • Vibration resistance per DIN IEC 60068-2-6: 5 g (10 to 2000 Hz)
  • Supply Voltage: 12 to 32 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Number of Switching Outputs: 2
  • Number of analog outputs: 1
  • Analog Output: 4 to 20 mA
  • Signal source: Flow
  • Response Time: 1 to 5 s
  • Switching Output/Switching Current: ± 100 mA
  • Switching Output Voltage Drop: < 2 V
  • Load Current Voltage Output: ≤ 20 mA
  • Operating delay time: < 10 s
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Interface: IO-Link V1.1
  • Setting Method: IO-Link
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Material in contact with media: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP69K *, IP68 *
  • Connection: M12 × 1; 4-pin

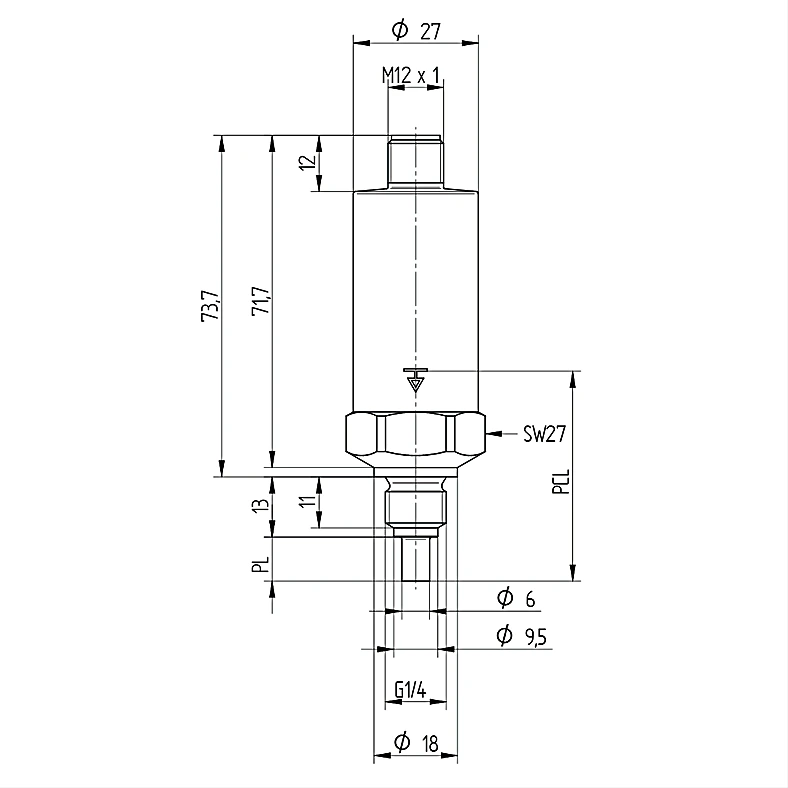

  • Process Connection: G 1/4"
  • Process Connection Length (PCL): 45 mm
  • Probe Length (PL): 9.5 mm
  • Rod diameter: 6 mm
  • Weight: 256 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: FDA compliant
  • Analog output flow: yes
  • IO-Link: yes
  • PNP NO: yes

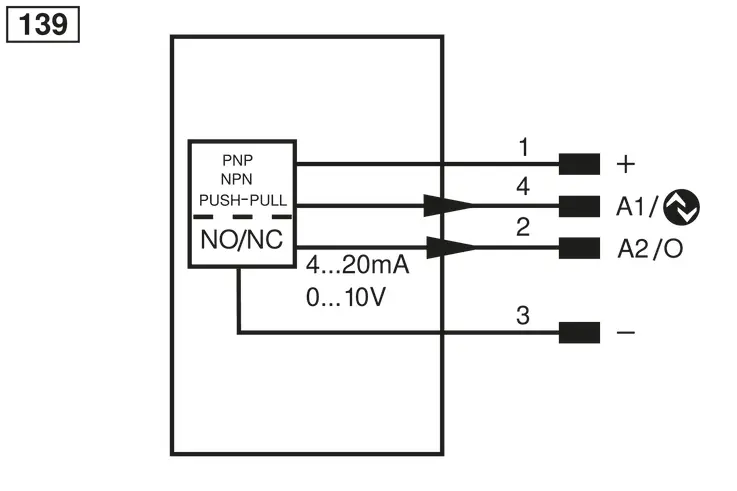

  • Output: Analog Output, Push-pull, NPN, PNP
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Signal source: Flow, Temperature
  • Circuit: NC, NC/NO, NO
  • Other parameters: 2 switching points, Selectable measurement range
  • Complementary Products: IO-Link converter, IO-Link Master, Software
weFlux² flow sensors simultaneously measure flow velocity and the temperature of aqueous liquids regardless of position and flow direction. The advantage: The number of measuring points and the diversity of sensor variants are cut in half, ensuring the greatest possible flexibility when installing in closed piping systems. Either 2 switching outputs or 1 switching output and 1 analog output are available depending on application requirements. The outputs can be configured as desired via IO-Link in order to flexibly adapt the sensors to the respective application.
