Wenglor FXDD018 Temperature Sensor

Temperature Sensor.

$212.00
Part Number
  • FXDD018
Highlights...

Features

  • Robust stainless steel housing with IP69K
  • FDA compliant
  • Response time T90: < 2 seconds
  • Temperature measuring range: -58°F to 392°F
  • Sensor element: PT100, Class B
  • Temperature Measurement Range: -58°F to 392°F
  • Medium: Liquids, gases
  • Response Time: < 2 s
  • Temperature of medium: -58°F to 392°F
  • Ambient temperature: -13°F to 176°F
  • Storage temperature: -13°F to 176°F
  • Pressure Resistance: 25 bar
  • Shock Resistance: IEC 60751
  • Vibration resistance: IEC 60751
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Material in contact with media: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP68 *, IP69K *

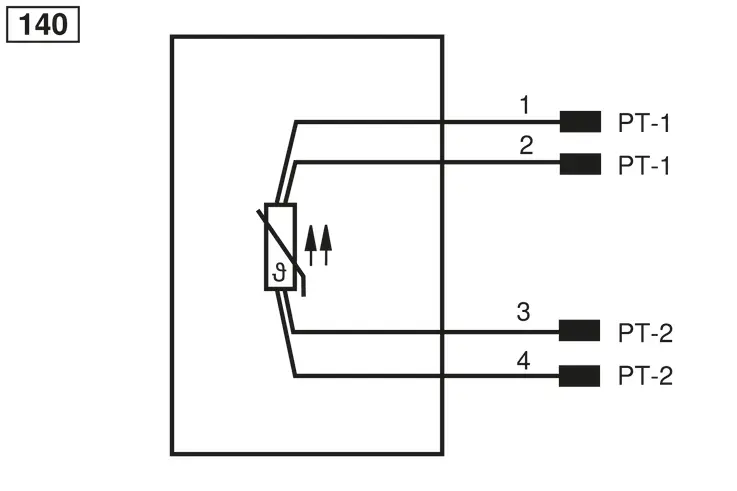

  • Connection: M12 × 1; 4-pin

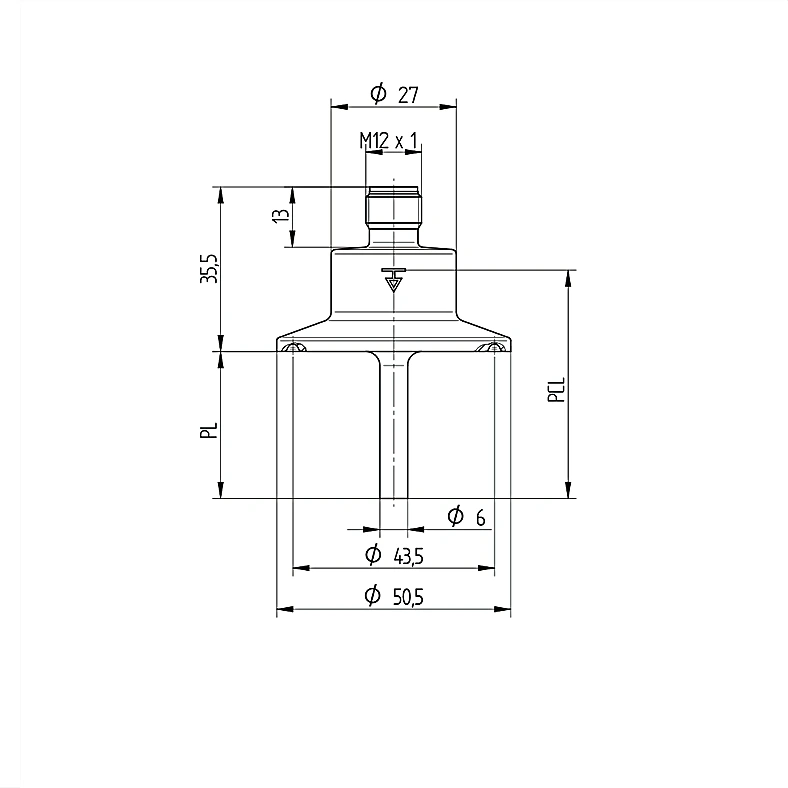

  • Process Connection: Clamp diameter: 50,5 mm
  • Process Connection Length (PCL): 214 mm
  • Probe Length (PL): 200 mm
  • Weight: 320 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: FDA compliant
  • PT100: yes
weFlux² Temperature Sensors ensure precise temperature measurement of liquids and gases in closed piping systems. It's easy to incorporate the standardized PT100/PT1000 resistance value into the controller. The compact housing with a diameter of just 27 mm is made of V4A stainless steel and features an easy-to-clean surface. Thanks to their rugged housing and functional design, the Temperature Sensors are FDA compliant.
