Wenglor FXCA201 Pressure Sensor

Features

• FDA compliant
• Robust stainless steel housing with IP69K
• Sensor element: Stainless steel membrane
• Measuring Range: 0 to 10 bar
• Measurement Type: absolute
• Maximum overload pressure: 42 bar
• Bursting pressure: 60 bar
• Medium: Liquids, gases
• Response Time: 1 ms
• Pressure response time (t90): < 1 ms
• Measuring error (total): + 0.3 %
• Hysteresis: < ± 0.01 %
• Linearity Deviation: < ± 0.1 %
• Zero-point error: < ± 0.1 %
• Repeat Accuracy: < ± 0.01 %
• Temperature coefficient zero-point: <± 0,01% /10K
• Temperature coefficient range: <± 0,06% /10K
• Reproducibility: < ± 0.05 %
• Temperature of medium: -4°F to 257°F
• Ambient temperature: 14°F to 185°F
• Storage temperature: -13°F to 185°F
• EMC: DIN EN 61326-1
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 10 g (10 to 2000 Hz)
• Supply Voltage: 12 to 32 V DC
• Current Consumption (Ub = 24 V): < 21 mA
• Analog Output: 4 to 20 mA
• Signal source: Pressure
• Current Output Load Resistance: < 500 Ohm
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V4A (1.4404/316L)
• Material in contact with media: Stainless steel, V4A (1.4435/316L)
• Degree of Protection: IP68 *, IP69K *

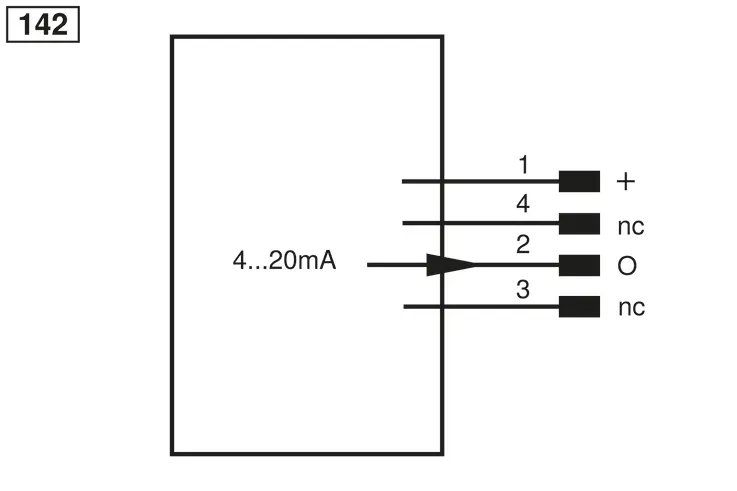

• Connection: M12 × 1; 4-pin

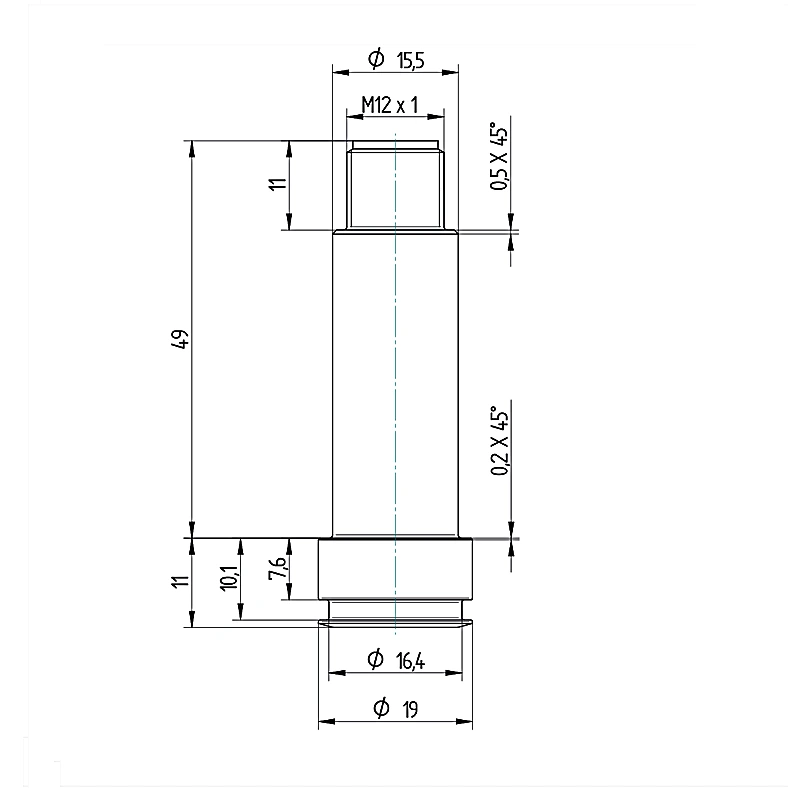

• Process Connection: 19 mm dia., flush mounted
• Weight: 39 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Approvals: FDA compliant
• Analog Output: yes
• Complementary Products: IO-Link converter
