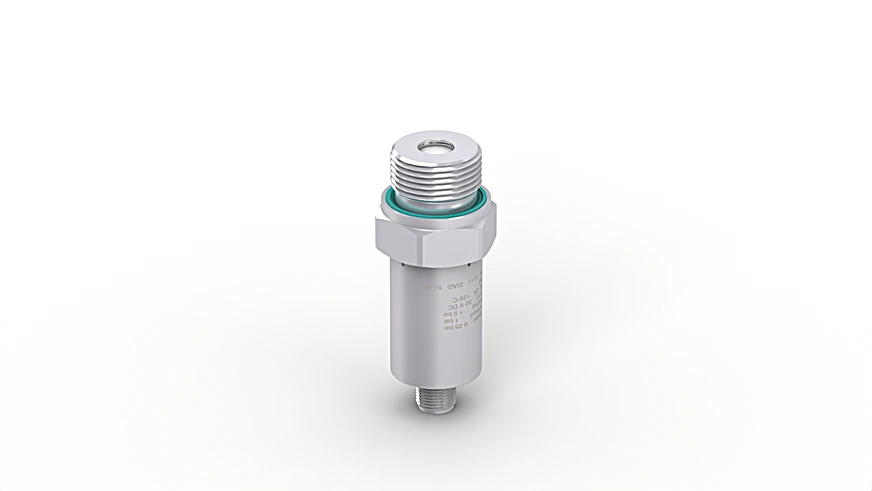

Wenglor FX5Q011 Pressure Sensor with IO-Link

Pressure Sensor with IO-Link.

$512.00
Part Number
  • FX5Q011
Highlights...

Features

  • Pressure and temperature measurement with a single sensor
  • Individual parameter configuration via IO-Link 1.1
  • Compact, laser-welded stainless steel 316L housing
  • Temperature-compensated pressure measurement
  • Sensor element: Ceramic membrane
  • Measuring Range: -1 to 10 bar
  • Measurement Type: relative
  • Maximum overload pressure: 20 bar
  • Bursting pressure: 30 bar
  • Medium: Liquids, gases
  • Temperature Measurement Range: -40°F to 257°F
  • Response time (t90) Temp: < 1 s
  • Pressure response time (t90): < 10 ms
  • Resolution: > 11 bit
  • Temperature Measurement Accuracy: < ± 33.8°F
  • Measuring error (total): ± 0.5 %
  • Hysteresis: < ± 0.1 %
  • Linearity Deviation: < ± 0.5 %
  • Zero-point error: < ± 0.1 %
  • Repeat Accuracy: < ± 0.1 %
  • Temperature coefficient zero-point: <± 0,05% /10K
  • Temperature coefficient range: <± 0,05% /10K
  • Long-term stability: < ± 0.1 %
  • Temperature of medium: -40°F to 257°F**
  • Ambient temperature: -13°F to 176°F
  • Storage temperature: -13°F to 176°F
  • EMC: DIN EN 61326-2-3
  • Shock resistance per DIN IEC 68-2-27: 50 g / 11 ms
  • Vibration resistance per DIN IEC 60068-2-6: 10 g (10 to 2000 Hz)
  • Supply Voltage: 12 to 32 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Number of Switching Outputs: 2
  • Switching Output/Switching Current: 100 mA
  • Switching Output Voltage Drop: < 1.5 V
  • Number of analog outputs: 1
  • Analog Output: 4 to 20 mA
  • Signal source: Pressure
  • Current Output Load Resistance: < 500 Ohm
  • Voltage output load resistance: > 1 kOhm
  • Interface: IO-Link V1.1
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Setting Method: IO-Link
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Material in contact with media: Stainless steel, V4A (1.4404/316L), Rubber, EPDM, Ceramic
  • Degree of Protection: IP65 *

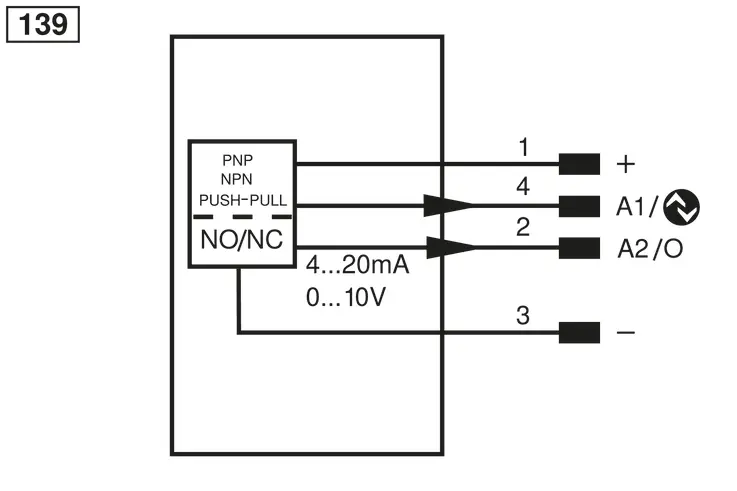

  • Connection: M12 × 1; 4-pin
  • Process Connection: G3/4"; front
  • Thread: External thread
  • Seal material: Rubber, EPDM
  • Weight: 285 g
  • MTTFd (EN ISO 13849-1): 1,157.11 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Analog Output: yes
  • PNP NO: yes
  • IO-Link: yes
  • Analog output: 0 to 10 V, 4 to 20 mA
  • Signal source: Pressure, Temperature
  • Output: Analog Output, Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Other parameters: 2 switching points
  • Complementary Products: IO-Link converter
weFlux² pressure sensors are equipped with an innovative measuring cell which includes an integrated temperature element. This makes it possible for the sensors to measure relative pressure as well as the temperature of any desired medium. Depending on application requirements, either two switching outputs or one switching output and one analog output can be selected to output measured values. Furthermore, weFlux² pressure sensors offer new dimensions in individual parameter configurability. Sensor parameters, filter and output functions as well as the unit of measurement of the measured values (bar, PSI or Pascal) can be adjusted as needed.
