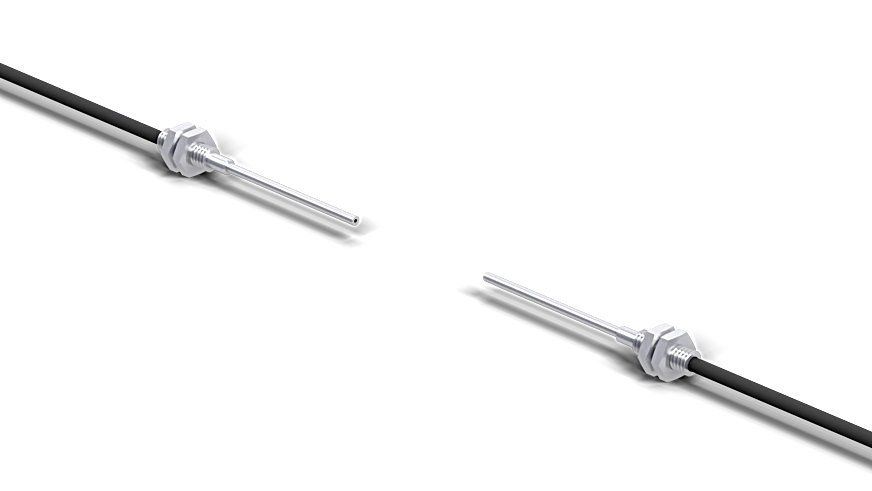

Wenglor FTS03-2M-10HF Plastic Fiber-Optic Cable Through-Beam Mode

Features

• Especially suitable in applications where only minimal space is available
• Fiber-optic cable can be cut to length by the cutting tool
• Fiber Core Diameter: 1 mm
• Fiber: Step Index
• Fiber Distribution: parallel arrangement
• Range with P1XD0xx: 370 mm
• Range P1XD10x/11x: 500 mm
• Range P1XD12x/13x: 420 mm
• Range P1XD2xx red light: 430 mm
• Range P1XD2xx blue light: 560 mm
• Range P1XD2xx pink light: 600 mm
• Opening Angle: 131°Fable type: High-flex
• Temperature Range: -40°F to 140°F
• Bending Radius: 2 mm
• Fiber-Optic Length L: 2 m
• Jacket Material: Plastic, PE
• Fiber Optic Material: Plastic, PMMA
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• End sleeve shape: Standard
• Flexible End Sleeve: yes
• Bending Radius End Sleeve: 60 mm
• Jacket Diameter: 2.2 mm
• Light Emission: straight
• End Sleeve No.: FTS03
• Weight: 200 g
• Packaging unit: 2 Pieces
• Scope of delivery: 1 × Z0015 cutting tool, 2 × fiber-optic cables, 4 × M4 hex nuts
