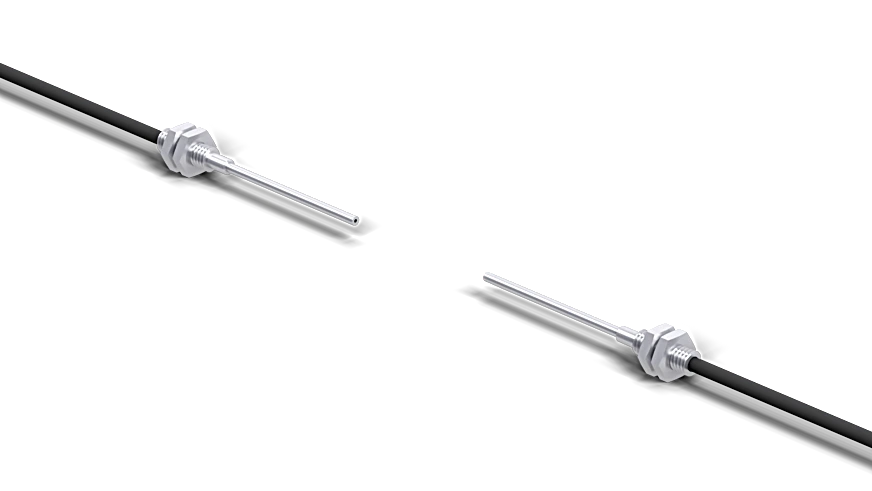

Wenglor FTS03-2M-10 Plastic Fiber-Optic Cable Through-Beam Mode

Plastic Fiber-Optic Cable Through-Beam Mode.

$308.00
Part Number
  • FTS03-2M-10
Highlights...

Features

  • Especially suitable in applications where only minimal space is available
  • Fiber-optic cable can be cut to length by the cutting tool
  • Fiber Core Diameter: 1 mm
  • Fiber: Step Index
  • Fiber Distribution: parallel arrangement
  • Range with P1XD0xx: 500 mm
  • Range P1XD10x/11x: 670 mm
  • Range P1XD12x/13x: 600 mm
  • Range P1XD2xx red light: 580 mm
  • Range P1XD2xx blue light: 720 mm
  • Range P1XD2xx pink light: 800 mm
  • Opening Angle: 131°Fable type: Standard
  • Temperature Range: -40°F to 158°F
  • Bending Radius: 30 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: Plastic, PE
  • Fiber Optic Material: Plastic, PMMA
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • End sleeve shape: Standard
  • Flexible End Sleeve: yes
  • Bending Radius End Sleeve: 60 mm
  • Jacket Diameter: 2.2 mm
  • Light Emission: straight
  • End Sleeve No.: FTS03
  • Weight: 26 g
  • Packaging unit: 2 Pieces
  • Scope of delivery: 1 × Z0015 cutting tool, 2 × fiber-optic cables, 4 × M4 hex nuts
Plastic fiber-optic cables are very flexible and suitable for use in confined spaces. The fiber optics are supplied in 2 m lengths. Special lengths of up to 50 m are possible. Users can shorten the fiber optics using the Z0015 cutting tool.
