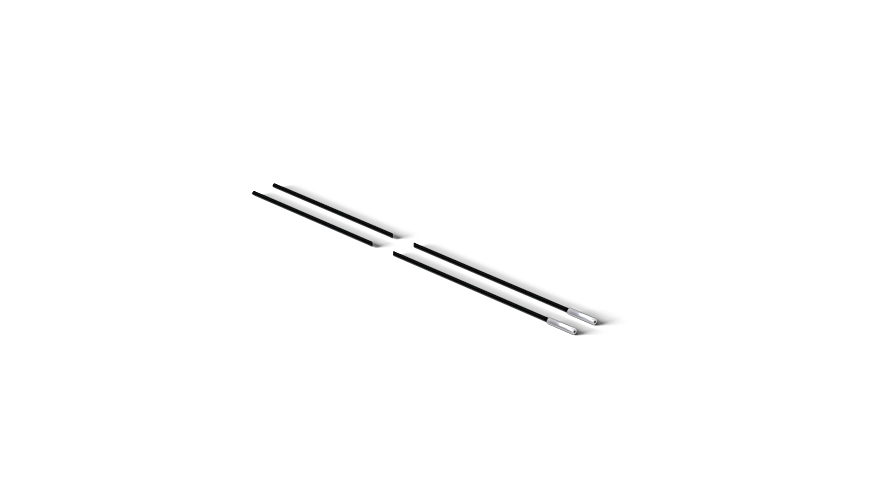

Wenglor FTM01-2M-05 Plastic Fiber-Optic Cable Through-Beam Mode

Plastic Fiber-Optic Cable Through-Beam Mode.

$231.00
Part Number
  • FTM01-2M-05
Highlights...

Features

  • Especially suitable in applications where only minimal space is available
  • Fiber-optic cable can be cut to length by the cutting tool
  • Fiber Core Diameter: 0.5 mm
  • Fiber: Step Index
  • Fiber Distribution: parallel arrangement
  • Range with P1XD0xx: 130 mm
  • Range P1XD10x/11x: 170 mm
  • Range P1XD12x/13x: 150 mm
  • Range P1XD2xx red light: 140 mm
  • Range P1XD2xx blue light: 170 mm
  • Range P1XD2xx pink light: 200 mm
  • Opening Angle: 131°Fable type: Standard
  • Temperature Range: -40°F to 158°F
  • Bending Radius: 15 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: Plastic, PE
  • Fiber Optic Material: Plastic, PMMA
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • End sleeve shape: Miniature
  • Jacket Diameter: 1 mm
  • Light Emission: straight
  • End Sleeve No.: FTM01
  • Weight: 7 g
  • Packaging unit: 2 Pieces
  • Scope of delivery: 1 × Z1XC001 mounting adapter, 1 × Z0015 cutting tool, 2 × fiber-optic cables
  • Complementary Products: Lens LA29
Plastic fiber-optic cables are very flexible and suitable for use in confined spaces. The fiber optics are supplied in 2 m lengths. Special lengths of up to 50 m are possible. Users can shorten the fiber optics using the Z0015 cutting tool.
