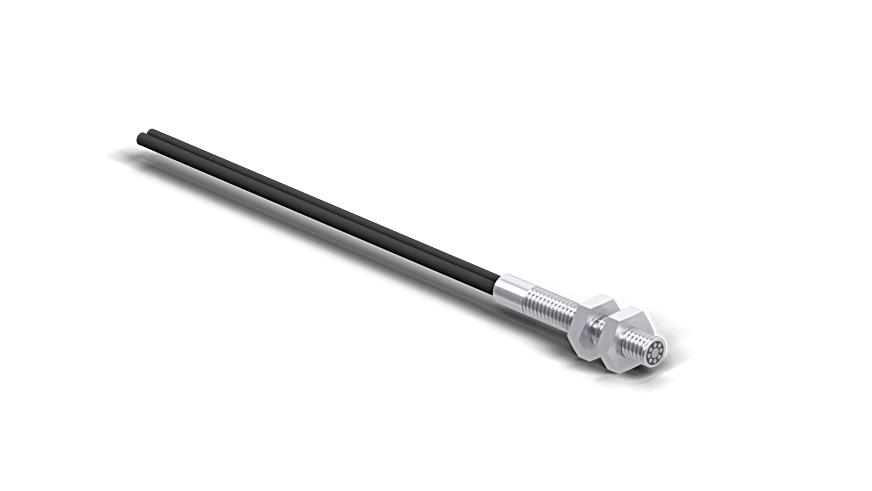

Wenglor FRS07-2M-05C Plastic Fiber-Optic Cable Reflex Mode

Plastic Fiber-Optic Cable Reflex Mode.

$231.00
Part Number
  • FRS07-2M-05C
Highlights...

Features

  • Especially suitable in applications where only minimal space is available
  • Fiber-optic cable can be cut to length by the cutting tool
  • Fiber Core Diameter: 0.5 mm
  • Fiber: Step Index
  • Fiber Distribution: coaxial arrangement
  • Detection range with P1XD0xx: 75 mm
  • Detection range P1XD10x/11x: 110 mm
  • Detection range P1XD12x/13x: 90 mm
  • Detection range P1XD2xx red light: 80 mm
  • Detection range P1XD2xx blue light: 90 mm
  • Detection range P1XD2xx pink light: 140 mm
  • Range with LA28: 10 mm
  • Opening Angle: 55 °
  • Light Spot Diameter with LA28: 0.6 mm
  • Cable type: Coaxial
  • Temperature Range: -40°F to 158°F
  • Bending Radius: 15 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: Plastic, PE
  • Fiber Optic Material: Plastic, PMMA
  • End sleeve shape: Standard
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • Jacket Diameter: 1.3 mm *
  • Light Emission: straight
  • End Sleeve No.: FRS07
  • Weight: 14 g
  • Packaging unit: 1 Piece
  • Scope of delivery: 1 × Z1XC002 mounting adapter, 1 × fiber-optic cable, 1 × Z0015 cutting tool, 2 × M3 hex nuts
  • Complementary Products: Lens LA28
Plastic fiber-optic cables are very flexible and suitable for use in confined spaces. The fiber optics are supplied in 2 m lengths. Special lengths of up to 50 m are possible. Users can shorten the fiber optics using the Z0015 cutting tool.
