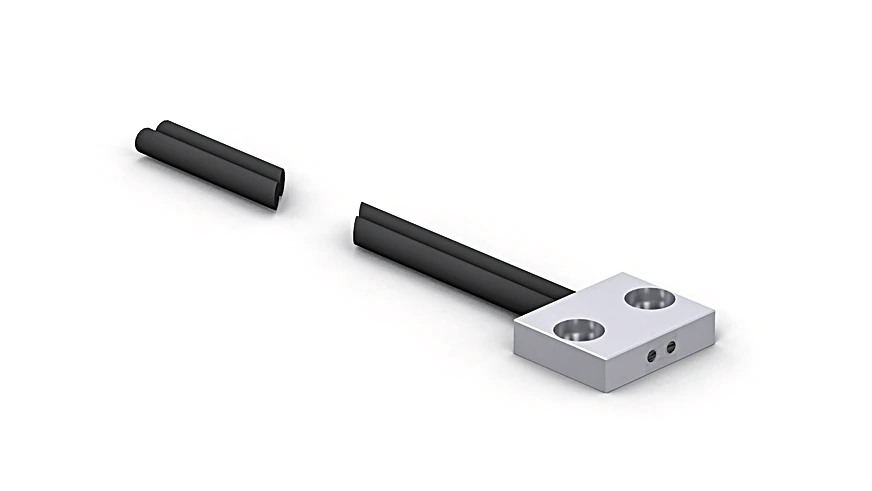

Wenglor FRF01-2M-10HF Plastic Fiber-Optic Cable Reflex Mode

Plastic Fiber-Optic Cable Reflex Mode.

$231.00
Part Number
  • FRF01-2M-10HF
Highlights...

Features

  • Especially suitable in applications where only minimal space is available
  • Fiber-optic cable can be cut to length by the cutting tool
  • Fiber Core Diameter: 1 mm
  • Fiber: Step Index
  • Fiber Distribution: parallel arrangement
  • Detection range with P1XD0xx: 110 mm
  • Detection range P1XD10x/11x: 150 mm
  • Detection range P1XD12x/13x: 120 mm
  • Detection range P1XD2xx red light: 160 mm
  • Detection range P1XD2xx blue light: 90 mm
  • Detection range P1XD2xx pink light: 180 mm
  • Opening Angle: 131°Fable type: High-flex
  • Temperature Range: -40°F to 140°F
  • Bending Radius: 2 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: Plastic, PE
  • Fiber Optic Material: Plastic, PMMA
  • End sleeve shape: Flat
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • Jacket Diameter: 2.2 mm
  • Light Emission: straight
  • End Sleeve No.: FRF01
  • Weight: 160 g
  • Packaging unit: 1 Piece
  • Scope of delivery: 1 × BEF-SET-23 mounting set, 1 × fiber-optic cable, 1 × Z0015 cutting tool
Plastic fiber-optic cables are very flexible and suitable for use in confined spaces. The fiber optics are supplied in 2 m lengths. Special lengths of up to 50 m are possible. Users can shorten the fiber optics using the Z0015 cutting tool.
