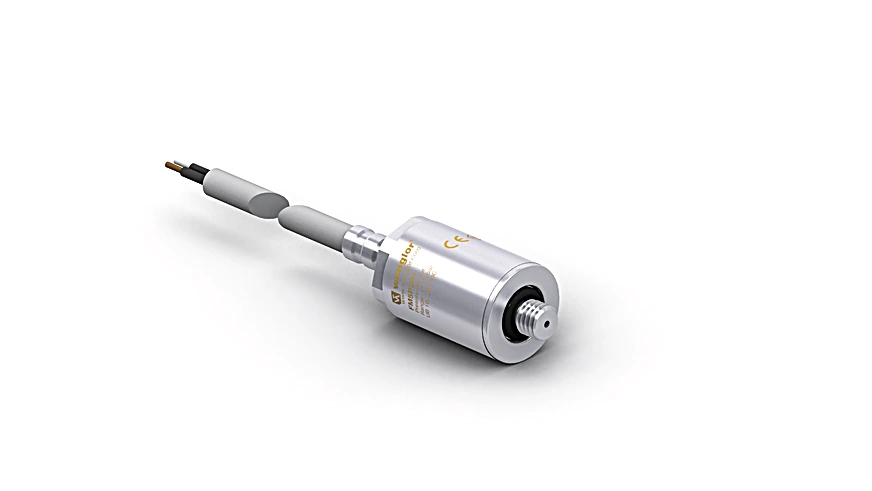

Wenglor FM4P201 Pressure Sensor

Features

• Compact, laser-welded stainless steel 316L housing
• Analog output: 4…20 mA
• Very fast response time of < 1 s
• Very low weight at 13 g (without cable)

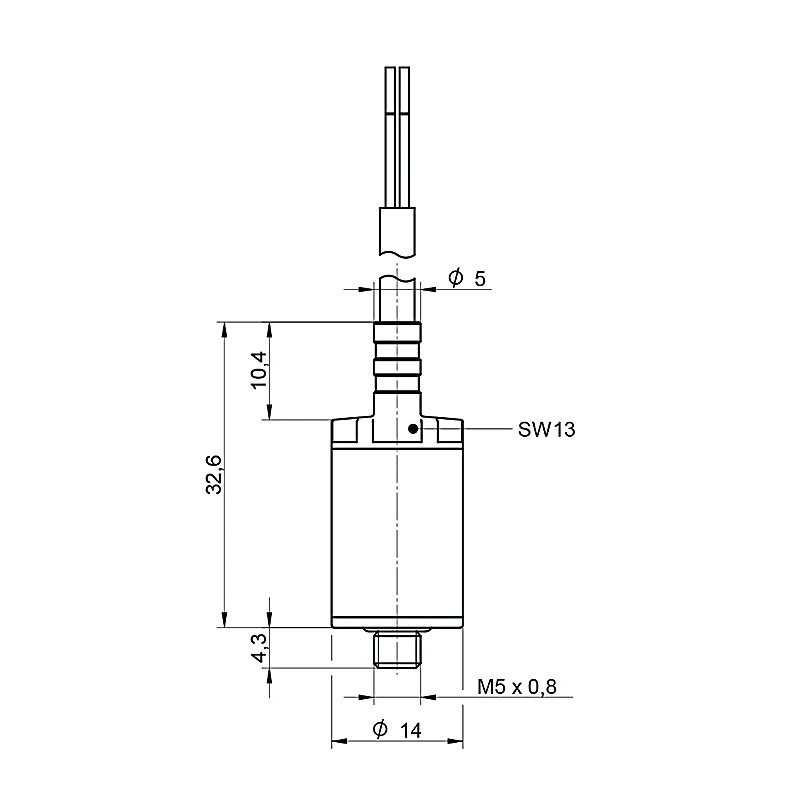

• Very small format at Ø 14 mm, SW13
• Measuring Range: -1 to 5 bar
• Measurement Type: relative
• Maximum overload pressure: 10 bar
• Bursting pressure: 15 bar
• Medium: Liquids;** gases
• Pressure response time (t90): < 1 ms
• Measuring error (total): ± 1.6 %
• Hysteresis: < ± 0.7 %
• Linearity Deviation: < ± 0.7 %
• Zero-point error: < ± 0.8 %
• Repeat Accuracy: < ± 0.2 %
• Temperature coefficient zero-point: <± 0,2% /10K
• Temperature coefficient range: <± 0,15% /10K
• Temperature of medium: -13°F to 257°F*
• Ambient temperature: -13°F to 176°F
• Storage temperature: -13°F to 176°F
• EMC: DIN EN 61326-2-3
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
• Supply Voltage: 12 to 28 V DC
• Current Consumption (Ub = 24 V): ≤ 30 mA
• Number of analog outputs: 1
• Analog Output: 4 to 20 mA
• Current Output Load Resistance: < 500 Ohm
• Short Circuit Protection: yes
• Reverse Polarity Protection: no
• Protection Class: III
• Housing Material: Stainless steel, V4A (1.4404/316L)
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4548/630), Rubber, FKM
• Degree of Protection: IP67, IP68
• Cable length (L): 2 m

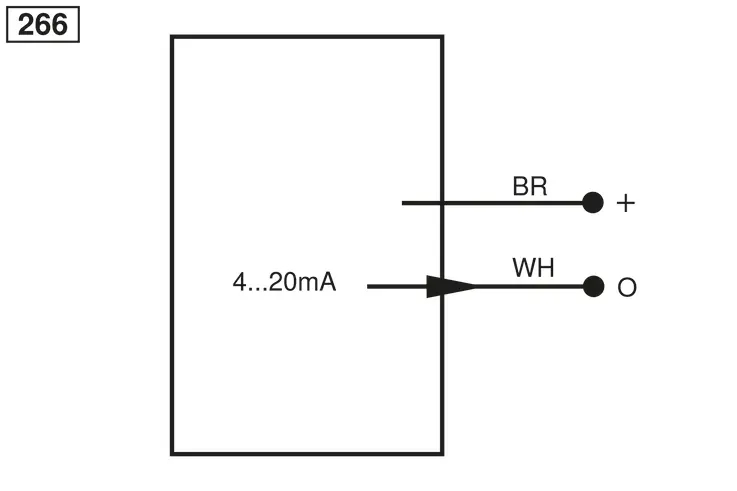

• Connection: Cable; 2-wire
• Cable Jacket Material: PVC
• Process Connection: M5 x 0.8
• Thread: External thread
• Seal material: Fluororubber, FKM
• Bending radius (used in motion): 5 × d
• Bending radius (fixed installation): ≥ 3 × d
• Drag Chain Suitable: yes
• Weight: 77 g
• MTTFd (EN ISO 13849-1): 3,842.62 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Analog Output: yes
