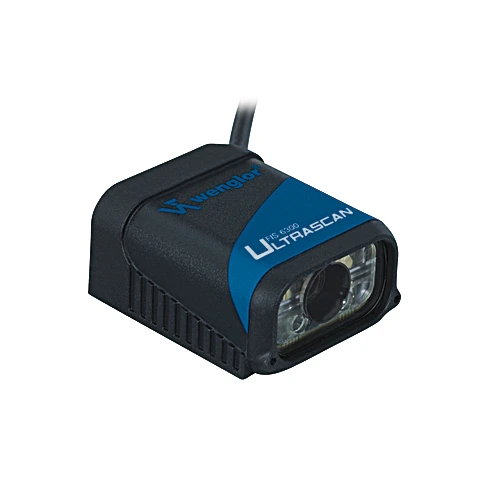

Wenglor FIS-6300-5113 1D/2D Code Scanner
1D/2D Code Scanner.
Overview
Features
- Autofocus
- Teach-in
- For dynamic applications
- Perfect scans with global-shutter
- Barcode Density: Ultra high density

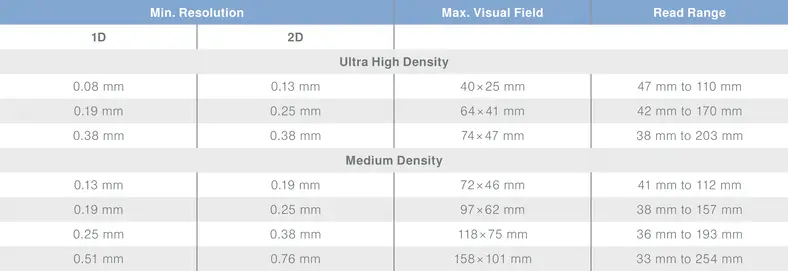

- Read Range: 38 to 203 mm
- Resolution: 752 × 480 Pixel
- Focal distance: 11.12 mm
- Pixel Size: 6 × 6 µm
- Light Source: Red Light
- Wavelength: 617 nm
- Service Life (T = 77°F): 40,000 h
- Temperature Range: 32°F to 104°F
- Supply Voltage: 5 V DC
- Power Consumption: 2,200 mW
- Scan Rate: 60 scans/sec
- Switching Output: TTL
- Number of Switching Outputs: 3
- Switching Output/Switching Current: 10 mA
- Network Possibilities: Daisy Chain, Multidrop
- Interface: RS-232/422/485
- Transmission rate: 115.2 Kbit/s
- Trigger Input: NPN
- Signal Input: NPN
- Number of Signal Inputs: 1
- Acoustic signal: yes
- Housing Material: Aluminum
- Degree of Protection: IP54

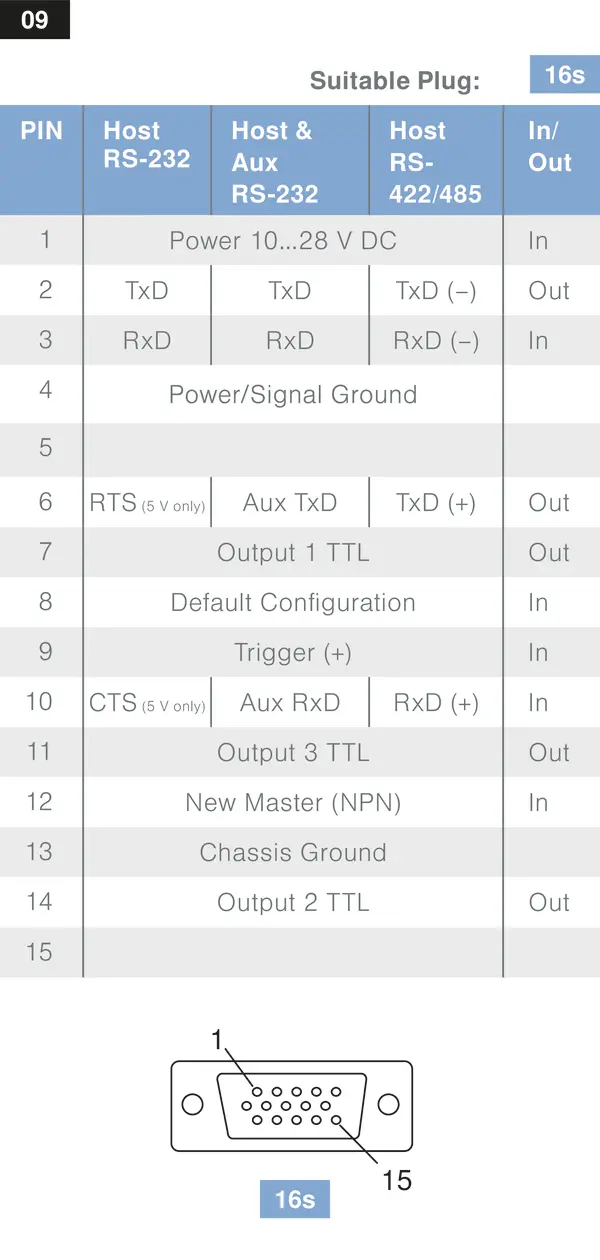

- Connection: SubD 15-pin
- Minimum object distance: 38 mm
- Weight: 220 g
- TTL positive/negative switchable: yes
- Complementary Products: Connection Box AB-0003-1, Path-Folding Mirror LA26, Protective Housing ZSV-0x-01, Fieldbus Gateway ZAGxxxN01, EPGG001, Software
Description
These 2D code scanners are suitable for omnidirectional scanning of 1D and 2D codes. The following code types can be processed: 1D codes: Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, Pharmacode, Planet, PostNet, Japanese Post, Australian Post, Royal Mail, Intelligent Mail, KIXCode 2D codes: DataMatrix ECC 0 to 200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar. Additional code types upon request.
