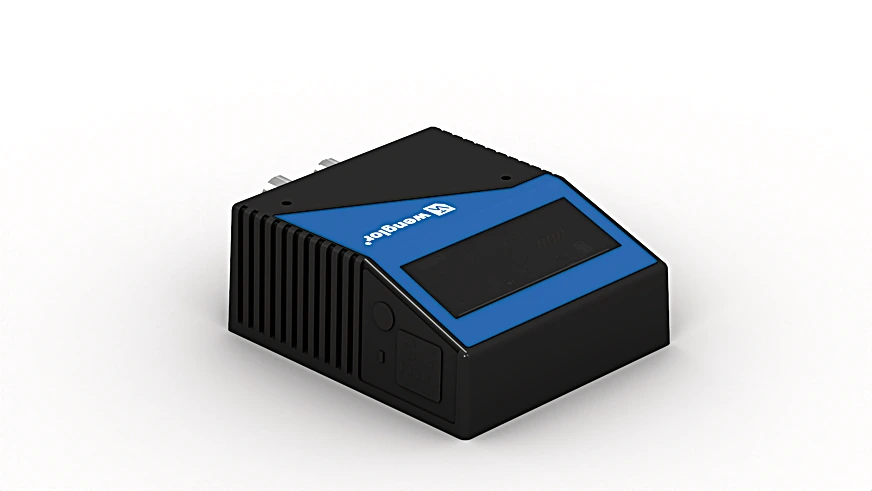

Wenglor FIS-0870-0108 Barcode Sweep Raster Scanner

Features

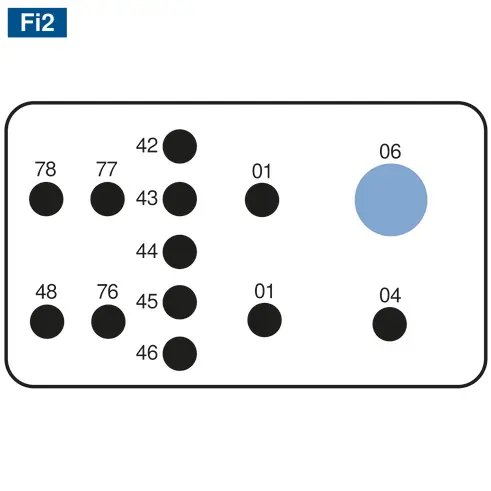

• LED scanning rate indicator
• Diagnosis functions
• Maximum oscillation rate: 80 oscillations/second
• Teach-in
• Integrated code reconstruction
• Barcode Density: Medium density

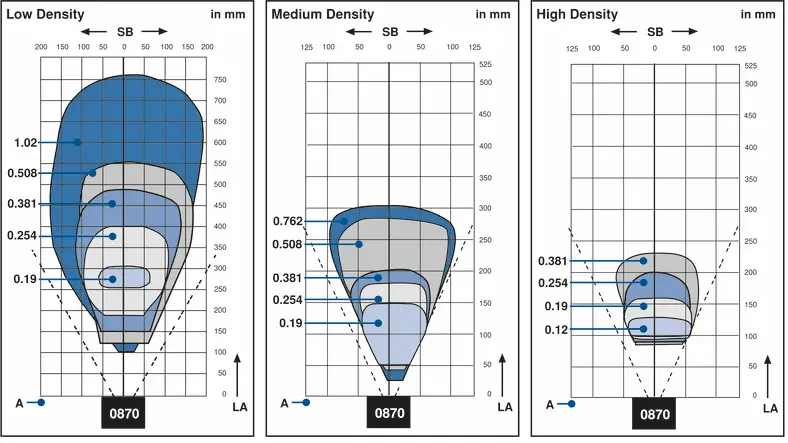

• Read Range: 25 to 304 mm
• Light Source: Laser (red)
• Wavelength: 655 nm
• Service Life (T = 77°F): 50,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 4,840 Lux
• Opening Angle: 60 °
• Adjustable Scan Width: yes
• Barcode Printing Contrast: > 25 %
• Temperature Range: 32°F to 122°F
• Atmospheric humidity: < 90%, non-condensing
• Supply Voltage: 10 to 28 V DC
• Power Consumption: 6,480 mW
• Scan Rate: 300 to 1,400 scans/sec
• Switching Output: Optoisolator
• Number of Switching Outputs: 3
• Switching Output/Switching Current: 100 mA
• Reverse Polarity Protection: yes
• Network Possibilities: Daisy Chain, Multidrop
• Interface: RS-232/422/485
• Transmission rate: 115.2 Kbit/s
• Trigger Input: Optoisolator
• Signal Input: Optoisolator
• Number of Signal Inputs: 3
• Acoustic signal: yes
• Protection Class: III
• FDA Accession Number: 8310057-012
• Housing Material: Aluminum
• Optic Cover: Glass
• Degree of Protection: IP65
• UL Enclosure Type: 1

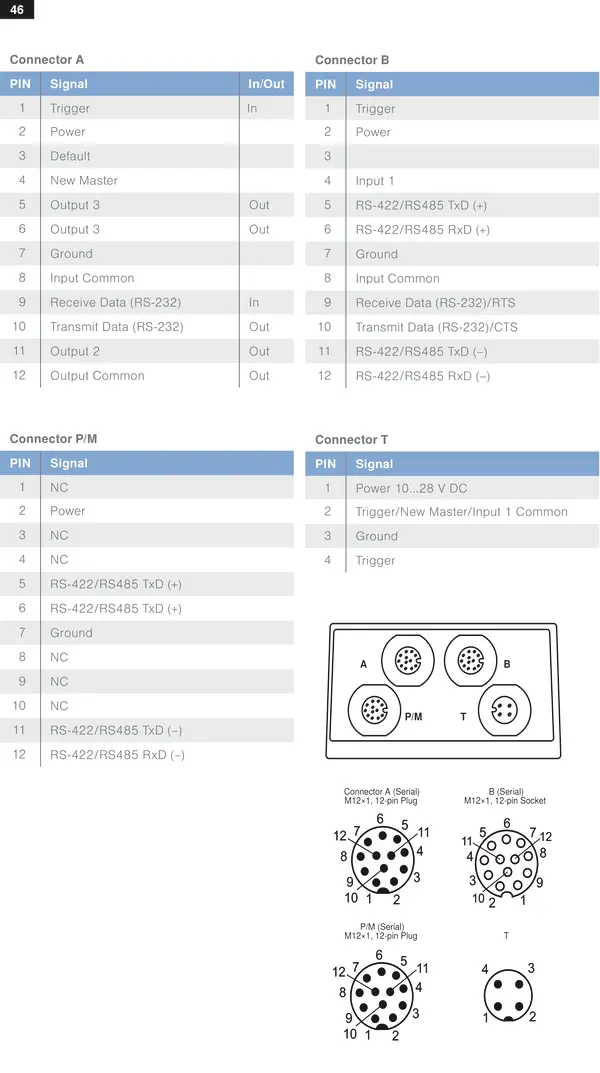

• Connection: M12 × 1; 12-pin
• Weight: 637 g
• PNP NO/NC switchable: yes
• NPN NO/NC switchable: yes
• RS-232 Interface: yes
• RS-422 Interface: yes
• RS-485 Interface (half duplex): yes
• Raster Sweep Angle: 0°...10°, 11°...20°, 21°...34°
• Sweeps/sec: 80, 60, 40
• Complementary Products: Connection Box ZAA12NN01, Power Supply Unit NT10, Fieldbus Gateway ZAGxxxN01, EPGG001, Software
