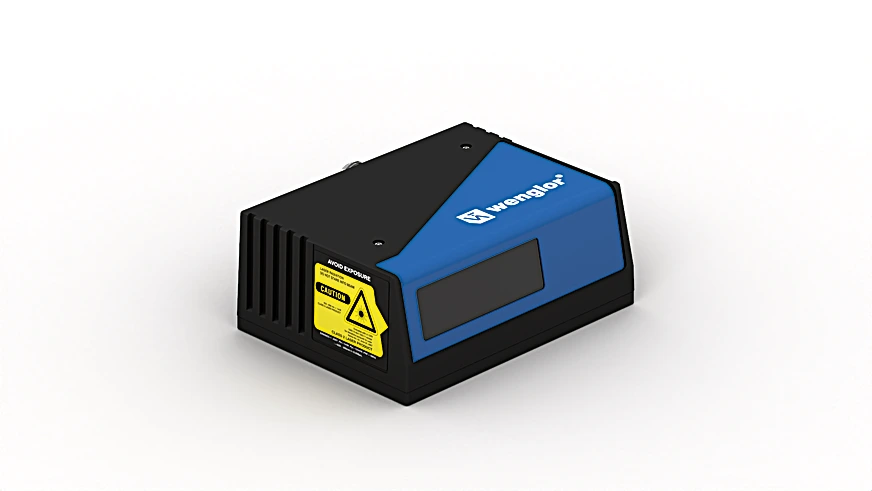

Wenglor FIS-0830-1101 Barcode Raster Scanner

Features

• Adaptable 90° mirror
• Adjustable scanning width
• Diagnosis functions
• Ethernet TCP/IP and EtherNet/IP™
• Integrated code reconstruction
• Barcode Density: Medium density
• Deflection Angle: 2 °
• Number of Raster Scan Lines: 10

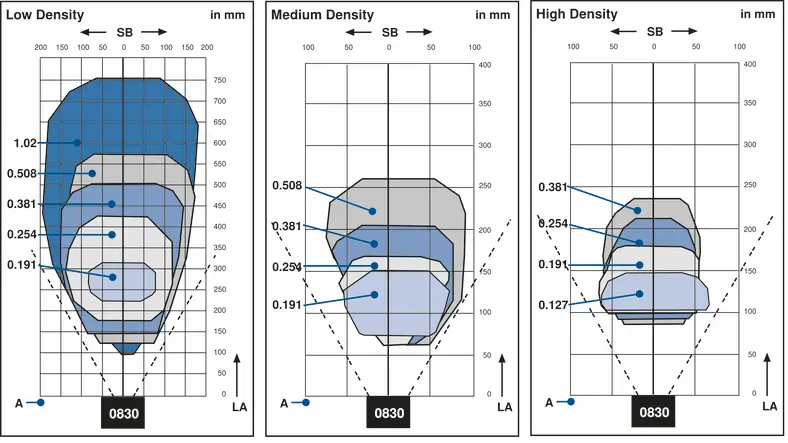

• Read Range: 51 to 254 mm
• Light Source: Laser (red)
• Wavelength: 655 nm
• Service Life (T = 77°F): 50,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 4,840 Lux
• Opening Angle: 60 °
• Adjustable Scan Width: yes
• Barcode Printing Contrast: > 25 %
• Temperature Range: 32°F to 122°F
• Supply Voltage: 10 to 28 V DC
• Power Consumption: 4,320 mW
• Scan Rate: 300 to 1,400 scans/sec
• On-/Off-Delay (RS-232): 0 to 2.55 s
• Switching Output: Optoisolator
• Number of Switching Outputs: 3
• Switching Output/Switching Current: 100 mA
• Reverse Polarity Protection: yes
• Network Possibilities: Daisy Chain, Multidrop
• Interface: RS-232
• Transmission rate: 100 Mbit/s
• Trigger Input: Optoisolator
• Signal Input: Optoisolator
• Number of Signal Inputs: 2
• Acoustic signal: yes
• Protection Class: III
• FDA Accession Number: 8310057-012
• Housing Material: Aluminum
• Optic Cover: Glass
• Degree of Protection: IP54
• UL Enclosure Type: 1

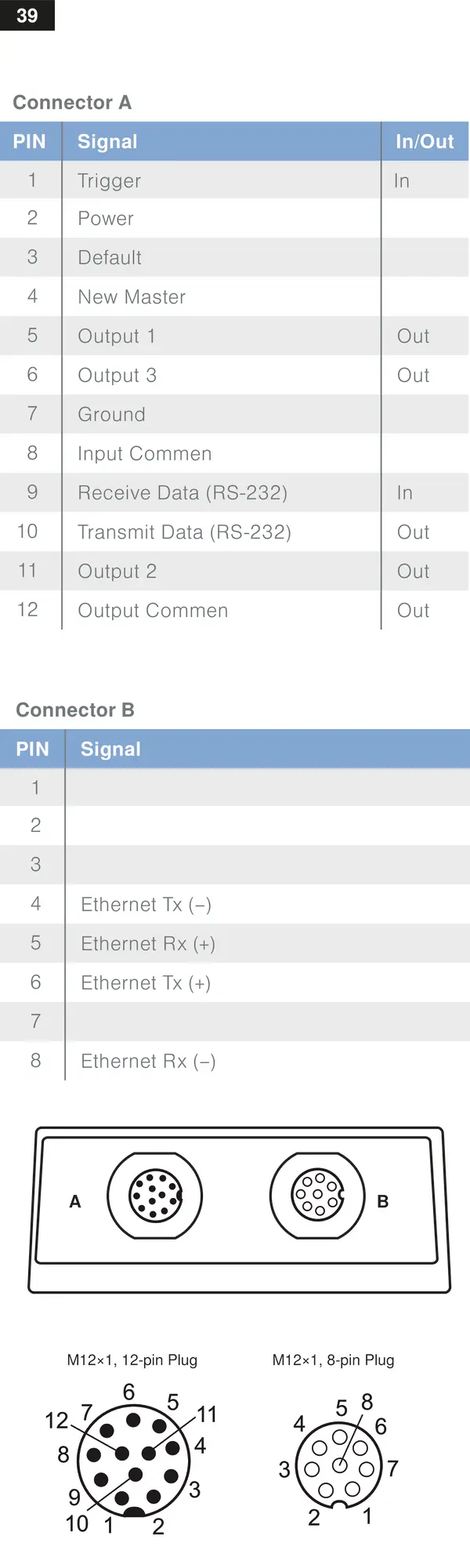

• Connection: M12 × 1; 12-pin
• Type of Connection Ethernet: M12 × 1; 8-pin
• Weight: 357 g
• PNP NO/NC switchable: yes
• NPN NO/NC switchable: yes
• RS-232 Interface: yes
• Ethernet: yes
• EtherNet/IP™: yes
• Complementary Products: Connection Box ZAA12NN01, Power Supply Unit NT10, Path-Folding Mirror LA19, Connection Cable ZAV88Rx01, Fieldbus Gateway ZAGxxxN01, EPGG001, Connection Cable ZCYV00x, Software
