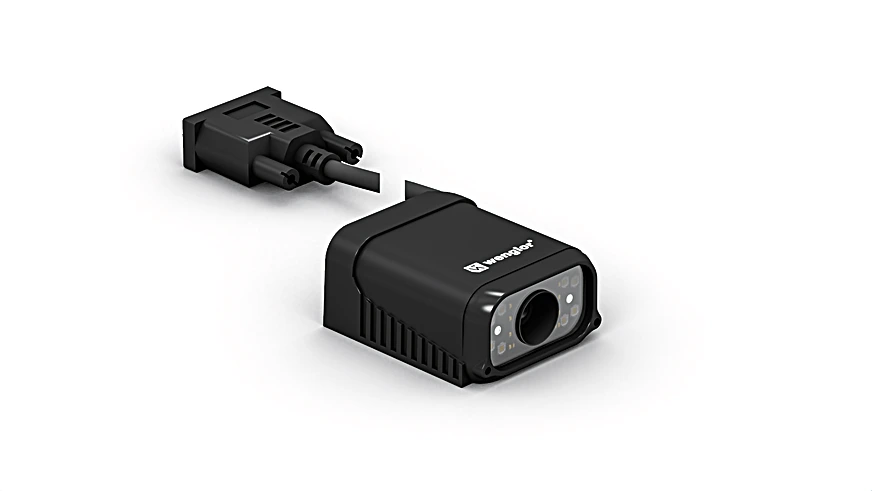

Wenglor FIS-0004-0102 1D/2D Code Scanner

Features

• High depth of focus
• For static applications
• Teach-in

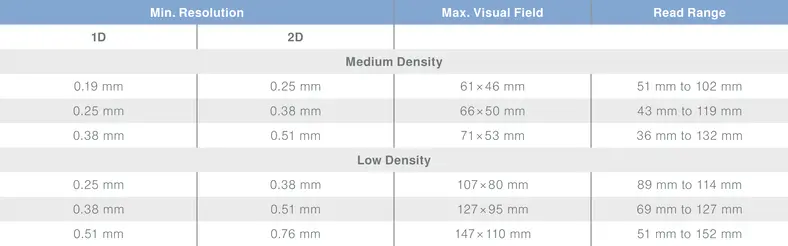

• Barcode Density: Low density
• Read Range: 51 to 152 mm
• Resolution: 640 × 480 Pixel
• Focal distance: 7 mm
• Pixel Size: 5.2 × 5.2 µm
• Light Source: Red Light
• Wavelength: 617 nm
• Service Life (T = 77°F): 40,000 h
• Max. Ambient Light: 3,000 Lux
• Barcode Printing Contrast: > 20 %
• Temperature Range: 32°F to 104°F
• Supply Voltage: 5 V DC
• Power Consumption: 1,970 mW
• Scan Rate: 10 scans/sec
• Switching Output: TTL
• Number of Switching Outputs: 3
• Switching Output/Switching Current: 10 mA
• Network Possibilities: Daisy Chain, Multidrop
• Interface: RS-232/422/485
• Transmission rate: 115.2 Kbit/s
• Trigger Input: NPN
• Signal Input: NPN
• Number of Signal Inputs: 1
• Acoustic signal: yes
• Housing Material: Aluminum
• Degree of Protection: IP54

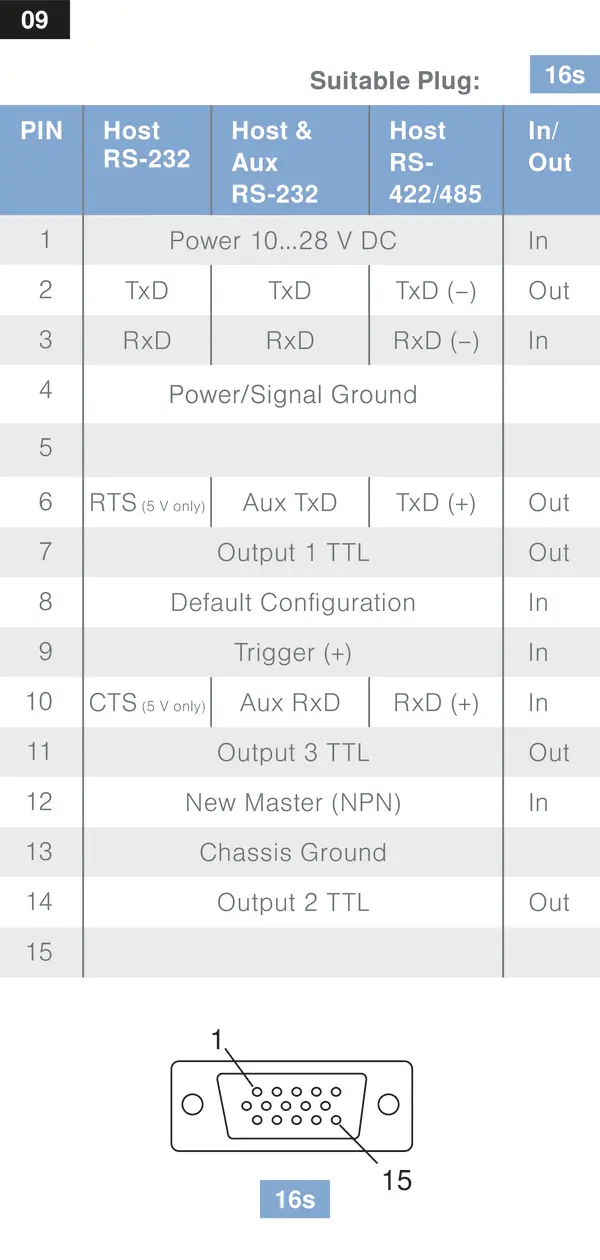

• Connection: SubD 15-pin
• Minimum object distance: 51 mm
• Weight: 233 g
• TTL positive/negative switchable: yes
• Complementary Products: Connection Box AB-0003-1, Path-Folding Mirror LA26, Protective Housing ZSV-0x-01, Fieldbus Gateway ZAGxxxN01, EPGG001, Software
