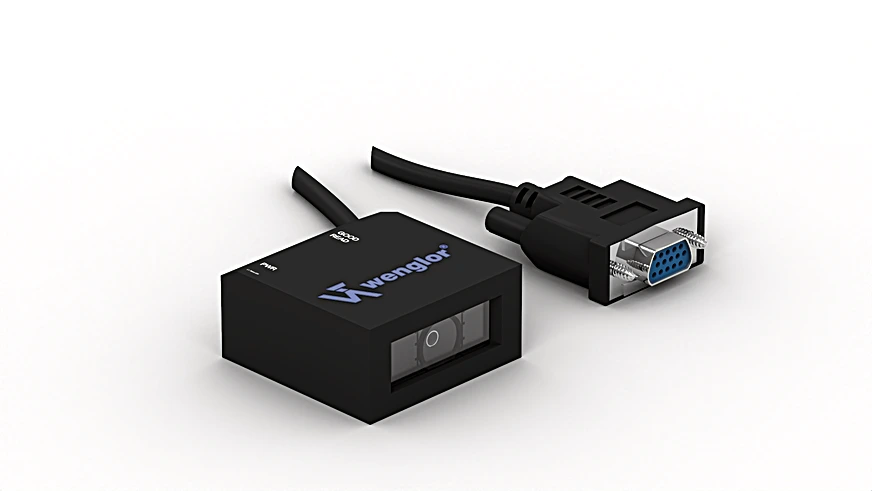

Wenglor FIS-0003-0106 Barcode Raster Scanner

Barcode Raster Scanner.

$1,821.00
Part Number
  • FIS-0003-0106
Highlights...

Features

  • Min. readable barcode density: 0,084 mm
  • Teach-in
  • Adjustable scanning width
  • Diagnosis functions
  • Barcode Density: High density
  • Deflection Angle: 3 °
  • Number of Raster Scan Lines: 7

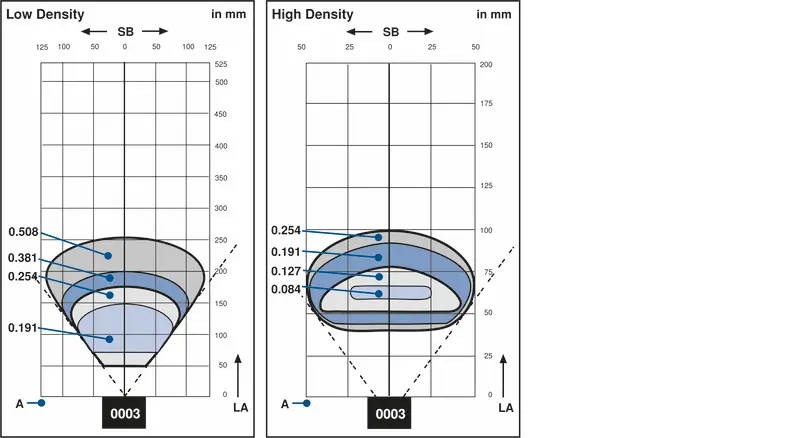

  • Read Range: 38 to 102 mm
  • Light Source: Laser (red)
  • Wavelength: 650 nm
  • Service Life (T = 77°F): 40,000 h
  • Laser Class (EN 60825-1): 2
  • Max. Ambient Light: 8,600 Lux
  • Opening Angle: 70 °
  • Barcode Printing Contrast: > 25 %
  • Temperature Range: 32°F to 122°F
  • Supply Voltage: 5 V DC
  • Power Consumption: 1,300 mW
  • Scan Rate: 350 to 1,000 scans/sec
  • On-/Off-Delay (RS-232): 0 to 65 s
  • Switching Output: TTL
  • Number of Switching Outputs: 3
  • Switching Output/Switching Current: 2 mA
  • Network Possibilities: Daisy Chain, Multidrop
  • Interface: RS-232/422/485
  • Transmission rate: 115.2 Kbit/s
  • Trigger Input: NPN
  • Signal Input: NPN
  • Number of Signal Inputs: 1
  • Acoustic signal: yes
  • FDA Accession Number: 9921562-003
  • Housing Material: Magnesium, colored
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP54
  • UL Enclosure Type: 1

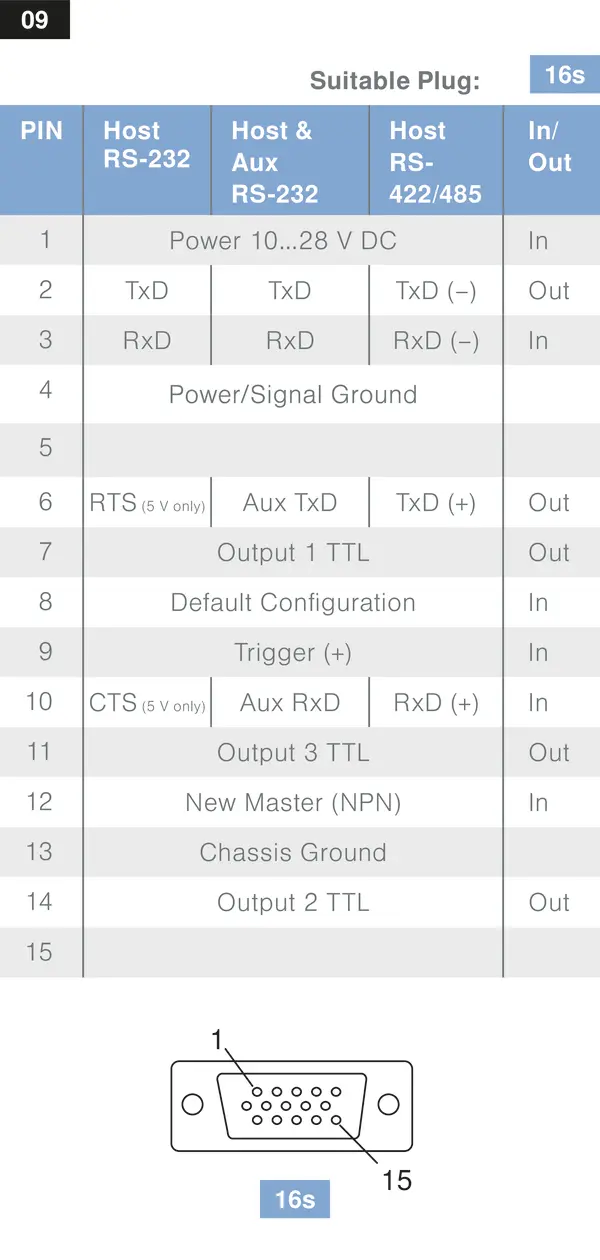

  • Connection: SubD 15-pin
  • Cable length (L): 900 mm
  • Weight: 220 g
  • TTL positive/negative switchable: yes
  • RS-232 Interface: yes
  • RS-422 Interface: yes
  • RS-485 Interface (half duplex): yes
  • Complementary Products: Connection Box AB-0003-1, Protective Housing ZSV-0x-01, Fieldbus Gateway ZAGxxxN01, EPGG001, Software
This barcode scanner is suitable for reading very high density barcodes. An auto-calibration mode can be started with the teach-in key. The scanner automatically adapts the barcode type, the sample rate and the scanning width to the respective application in this operating mode. Thanks to its compact design, the scanner requires only minimal installation space. Readable code types: Code39, Code93, Code128, Codabar, Interleaved 2 of 5, Pharmacode, UPC/EAN.
