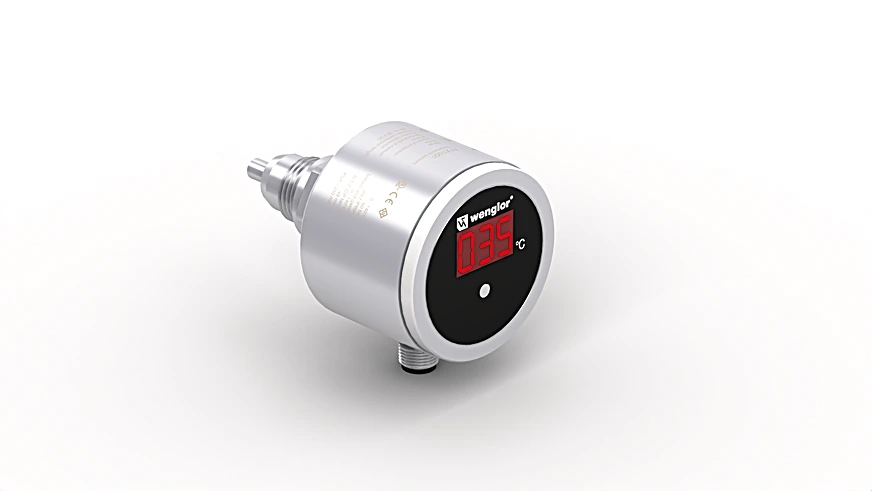

Wenglor FFXT001 Temperature Sensor

Features

• Simple operation via the display
• Temperature range: 32°F to 392°F available
• Hygienic design makes it easy to clean
• Robust stainless steel housing with IP69K
• FDA compliant
• Temperature Measurement Range: 32°F to 284°F
• Setting Range: 35.6°F to 282.2°F
• Medium: Liquids, gases
• Measuring error: ± 33.8°F
• Resolution: 33.8°F
• Switching Hysteresis: 35.6°F
• Response Time: 2 to 4 s
• Temperature of medium: 32°F to 284°F
• Ambient temperature: -4°F to 176°F
• Pressure Resistance: 60 bar
• EMC: DIN EN 61326-2-3
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
• Supply Voltage: 16 to 32 V DC
• Current Consumption (Ub = 24 V): 60 mA
• Number of Switching Outputs: 1
• Switching Output/Switching Current: < 250 mA
• Switching Output Voltage Drop: < 2 V
• Analog Output: 4 to 20 mA
• Signal source: Temperature
• Current Output Load Resistance: < 500 Ohm
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• Setting Method: Menu
• Housing Material: Stainless steel, V4A (1.4404/316L), Plastic, PC

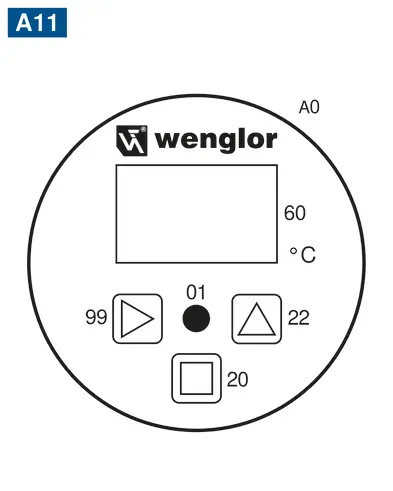

• Material Control Panel: Polyester
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4435/316L)
• Degree of Protection: IP67 *, IP69K *

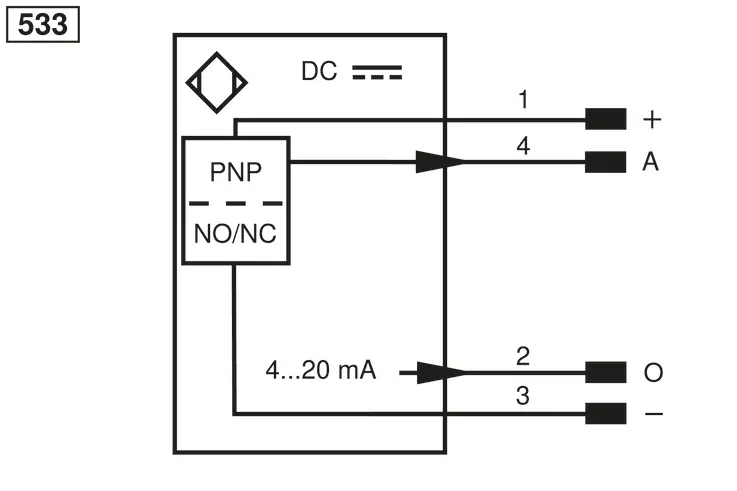

• Connection: M12 × 1; 4-pin
• Process Connection: G 1/2" CIP-capable

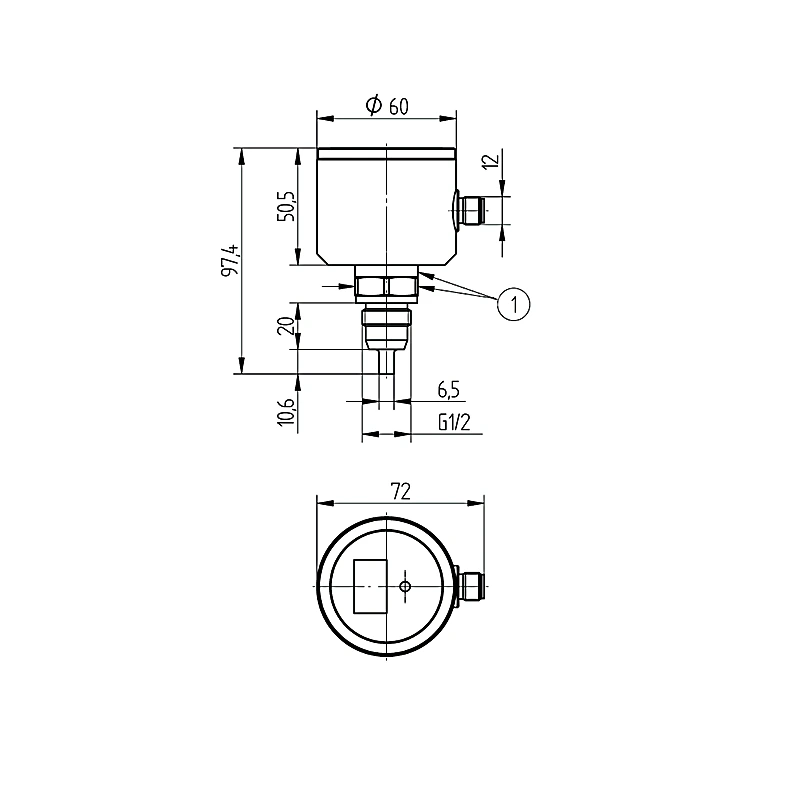

• Process Connection Length (PCL): 48 mm
• Probe Length (PL): 10 mm
• Weight: 750 g
• MTTFd (EN ISO 13849-1): 1,194.55 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Approvals: FDA compliant
• Analog Output: yes
• PNP NO: yes
• Circuit: NC, NC/NO, NO
• Other parameters: Switching point
• Complementary Products: IO-Link converter
