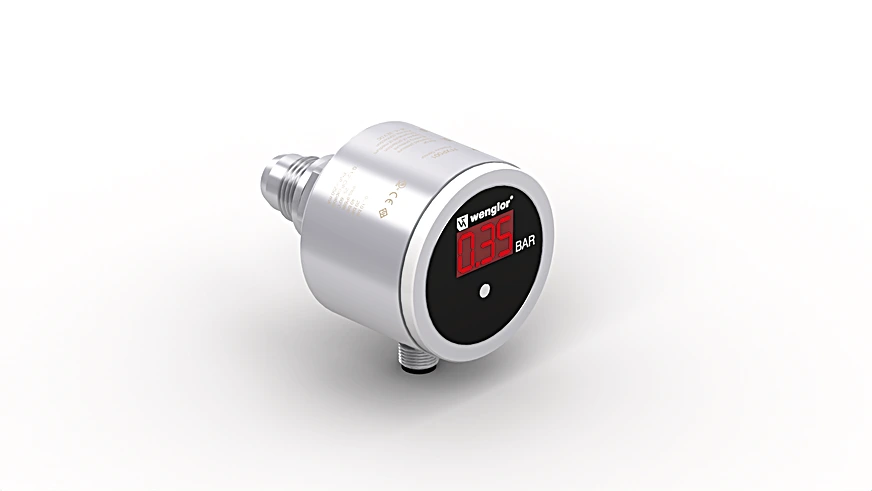

Wenglor FFXP034 Pressure Sensor

Features

• Piggable with flush mounting
• Space-saving process connection thanks to small pressure membrane
• Hygienic design makes it easy to clean
• Robust stainless steel housing with IP69K
• FDA compliant
• Measuring Range: 0 to 160 bar
• Measurement Type: relative
• Maximum overload pressure: 320 bar
• Bursting pressure: 640 bar
• Setting Range: 4 to 100 %
• Medium: Liquids, gases
• Response Time: 1.2 s
• Resolution: 10 bit
• Switching Hysteresis: 2 %
• Measuring error: < ± 0.5 %
• Temperature Drift: 0.025 %/K
• Temperature of medium: -13°F to 140°F
• Ambient temperature: -13°F to 176°F
• EMC: DIN EN 61326-2-3
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
• Supply Voltage: 16 to 32 V DC
• Current Consumption (Ub = 24 V): < 60 mA
• Number of Switching Outputs: 1
• Relay Output/Switching Current (24 VDC): < 1 A
• Analog Output: 0 to 10 V
• Signal source: Pressure
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III

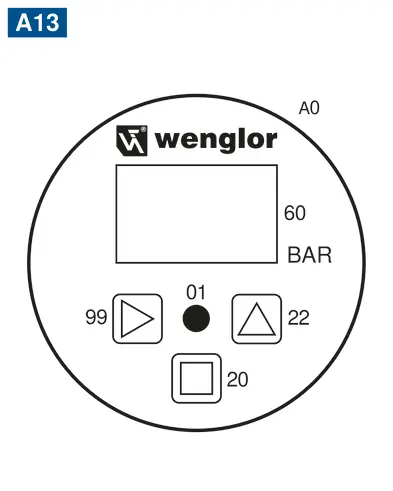

• Setting Method: Menu
• Housing Material: Stainless steel, V4A (1.4404/316L), Plastic, PC
• Material Control Panel: Polyester
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4435/316L)
• Degree of Protection: IP67 *, IP69K *

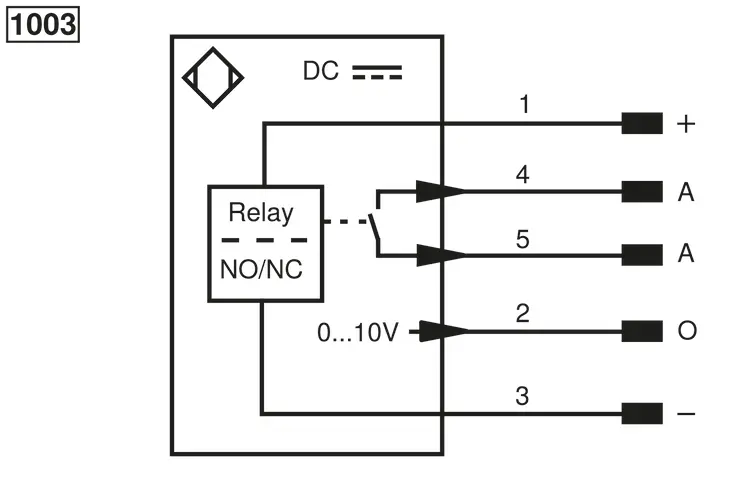

• Connection: M12 × 1; 5-pin

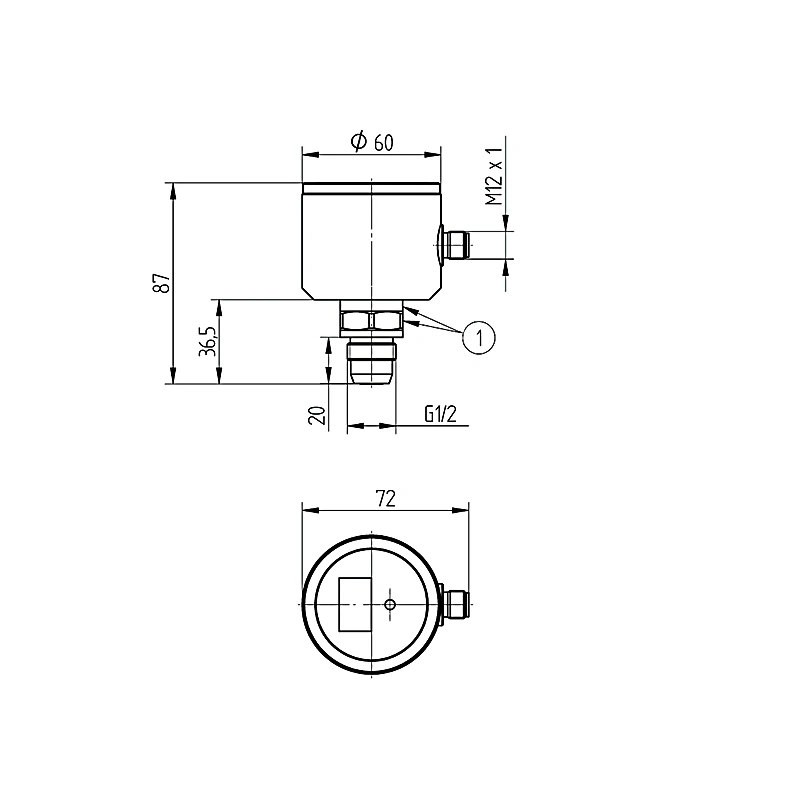

• Process Connection: G 1/2" CIP-capable
• Thread: External thread
• Weight: 750 g
• MTTFd (EN ISO 13849-1): 769.77 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Approvals: FDA compliant
• Analog Output: yes
• PNP NO: yes
• Circuit: NC, NC/NO, NO
• Other parameters: Selectable measurement range, Switching point
• Complementary Products: IO-Link converter
