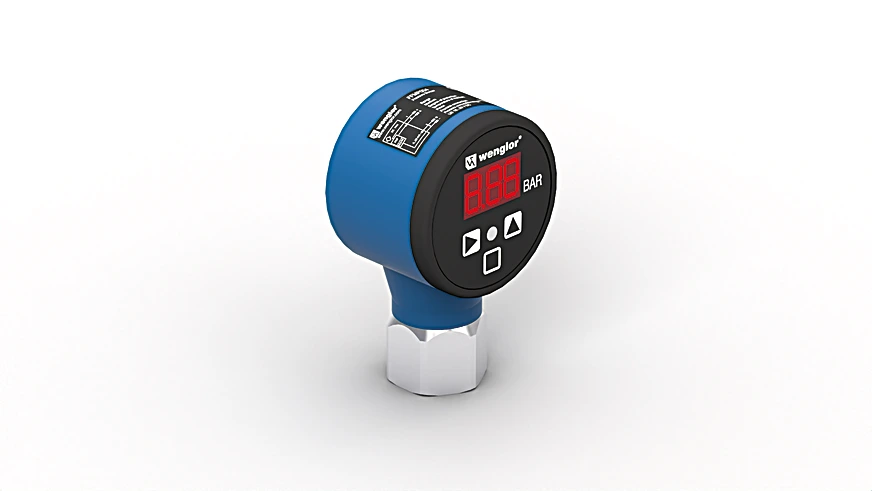

Wenglor FFMP197 Pressure Sensor

Pressure Sensor.

$638.00
Part Number
  • FFMP197
Highlights...

Features

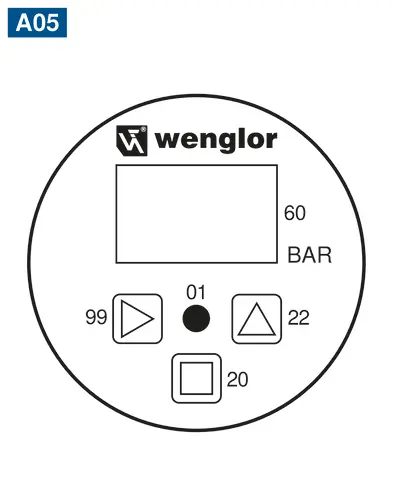

  • Simple operation via the display
  • Highly visible output indicator
  • Measuring Range: 0 to 25 bar
  • Measurement Type: relative
  • Maximum overload pressure: 50 bar
  • Bursting pressure: 100 bar
  • Setting Range: 4 to 100 %
  • Medium: Liquids, gases
  • Response Time: 30 ms
  • Resolution: 10 bit
  • Switching Hysteresis: 2 %
  • Measuring error: < ± 0.5 %
  • Temperature Drift: 0.025 %/K
  • Temperature of medium: -13°F to 176°F
  • Ambient temperature: -13°F to 176°F
  • EMC: DIN EN 61326-2-3
  • Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
  • Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
  • Supply Voltage: 16 to 32 V DC
  • Current Consumption (Ub = 24 V): < 60 mA
  • Number of Switching Outputs: 2
  • Switching Output/Switching Current: < 250 mA
  • Switching Output Voltage Drop: < 2 V
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Setting Method: Menu
  • Housing Material: Plastic, PBT, Plastic, PC
  • Material Control Panel: Polyester
  • Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
  • Degree of Protection: IP67 *

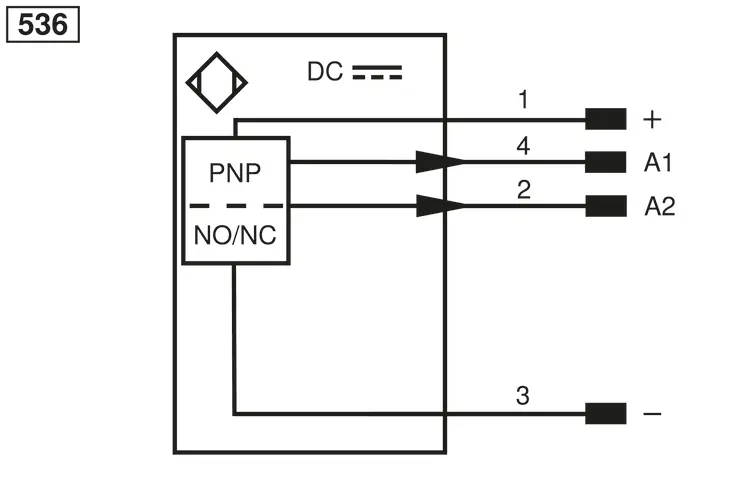

  • Connection: M12 × 1; 4-pin
  • Process Connection: G 1/4"
  • Thread: Internal thread
  • Weight: 280 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NO: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: 2 switching points
  • Complementary Products: Seal G1/4" ZH5G001
UniBar pressure sensors measure the relative pressure in closed systems of any medium in the range -1 to 600 bar. UniBar pressure sensors are very easy to use thanks to the integrated display. The highly visible switching status display enables the rapid localization of affected sensors for maintenance processes.
