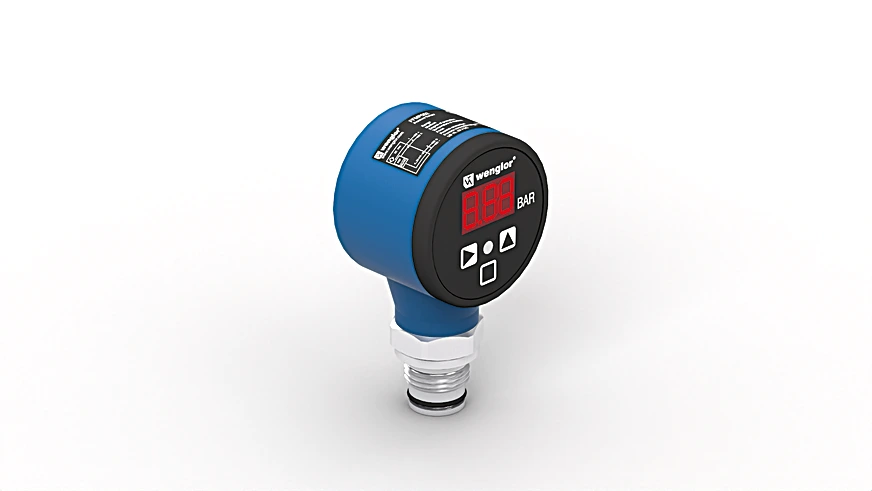

Wenglor FFMP150 Pressure Sensor

Pressure Sensor.

$873.00
Part Number
  • FFMP150
Highlights...

Features

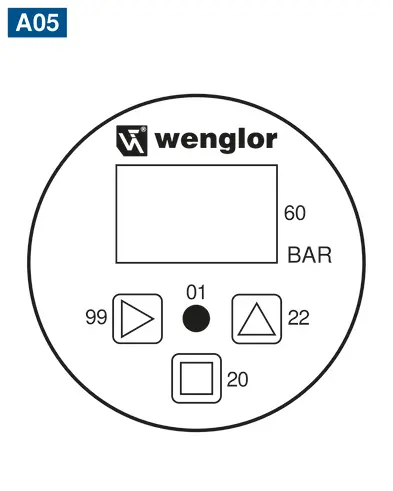

  • Simple operation via the display
  • Piggable with flush mounting
  • Space-saving process connection thanks to small pressure membrane
  • Highly visible output indicator
  • Measuring Range: 0 to 25 bar
  • Measurement Type: relative
  • Maximum overload pressure: 50 bar
  • Bursting pressure: 100 bar
  • Setting Range: 4 to 100 %
  • Medium: Liquids, gases
  • Response Time: 30 ms
  • Resolution: 10 bit
  • Switching Hysteresis: 2 %
  • Measuring error: < ± 0.5 %
  • Temperature Drift: 0.025 %/K
  • Temperature of medium: -13°F to 176°F
  • Ambient temperature: -13°F to 176°F
  • EMC: DIN EN 61326-2-3
  • Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
  • Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
  • Supply Voltage: 16 to 32 V DC
  • Current Consumption (Ub = 24 V): < 60 mA
  • Number of Switching Outputs: 1
  • Relay Output/Switching Current (24 VDC): < 1 A
  • Analog Output: 0 to 10 V
  • Signal source: Pressure
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Protection Class: III
  • Setting Method: Menu
  • Housing Material: Plastic, PBT, Plastic, PC
  • Material Control Panel: Polyester
  • Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
  • Degree of Protection: IP67 *

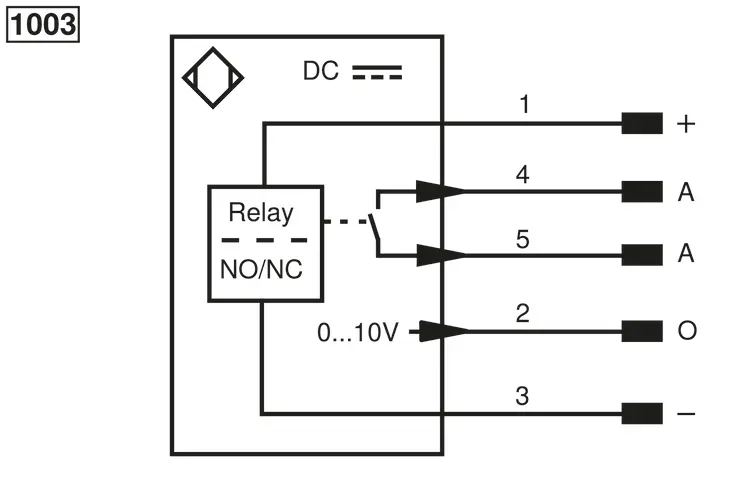

  • Connection: M12 × 1; 5-pin
  • Process Connection: G 1/2"
  • Thread: External thread
  • Weight: 270 g
  • MTTFd (EN ISO 13849-1): 769.77 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Analog Output: yes
  • Relay -NO: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Selectable measurement range, Switching point
  • Complementary Products: IO-Link converter
UniBar pressure sensors measure the relative pressure in closed systems of any medium in the range -1 to 600 bar. UniBar pressure sensors are very easy to use thanks to the integrated display. The highly visible switching status display enables the rapid localization of affected sensors for maintenance processes. Thanks to the metallic sealing edge on the process connection, no further seals are required.
