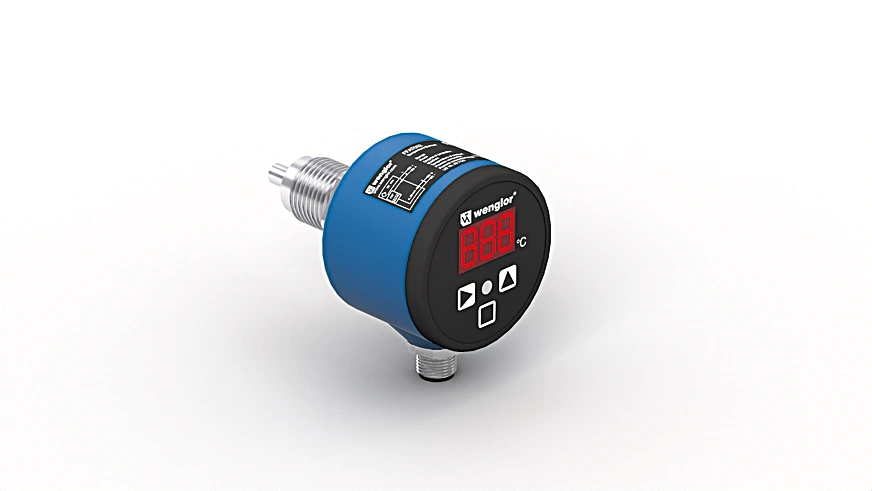

Wenglor FFAT010 Temperature Sensor

Features

• Simple operation via the display
• Highly visible output indicator
• Temperature range: 32°F to 392°F available
• Temperature Measurement Range: 32°F to 284°F
• Setting Range: 35.6°F to 282.2°F
• Medium: Liquids, gases
• Measuring error: ± 33.8°F
• Resolution: 33.8°F
• Switching Hysteresis: 35.6°F
• Response Time: 2 to 4 s
• Temperature of medium: 32°F to 284°F
• Ambient temperature: -4°F to 176°F
• Pressure Resistance: 60 bar
• EMC: DIN EN 61326-2-3
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
• Supply Voltage: 16 to 32 V DC
• Current Consumption (Ub = 24 V): 60 mA
• Number of Switching Outputs: 1
• Analog Output: 4 to 20 mA
• Signal source: Temperature
• Current Output Load Resistance: < 500 Ohm
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III

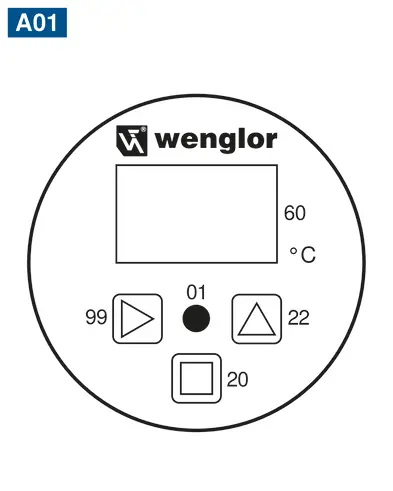

• Setting Method: Menu
• Housing Material: Plastic, PBT, Plastic, PC
• Material Control Panel: Polyester
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
• Degree of Protection: IP67 *

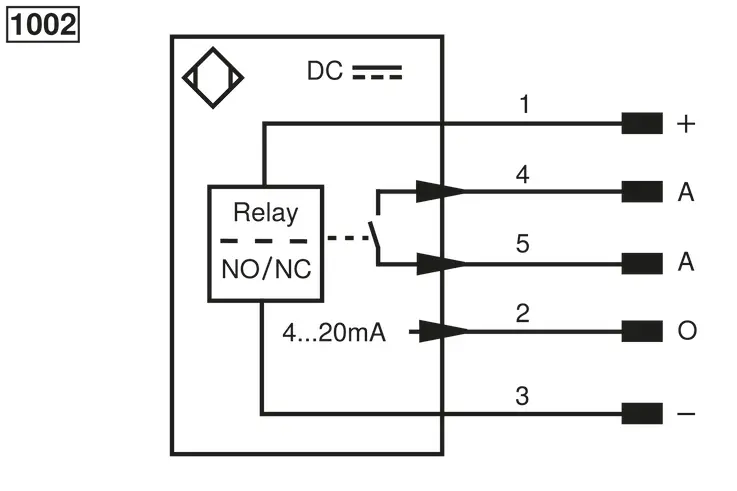

• Connection: M12 × 1; 5-pin

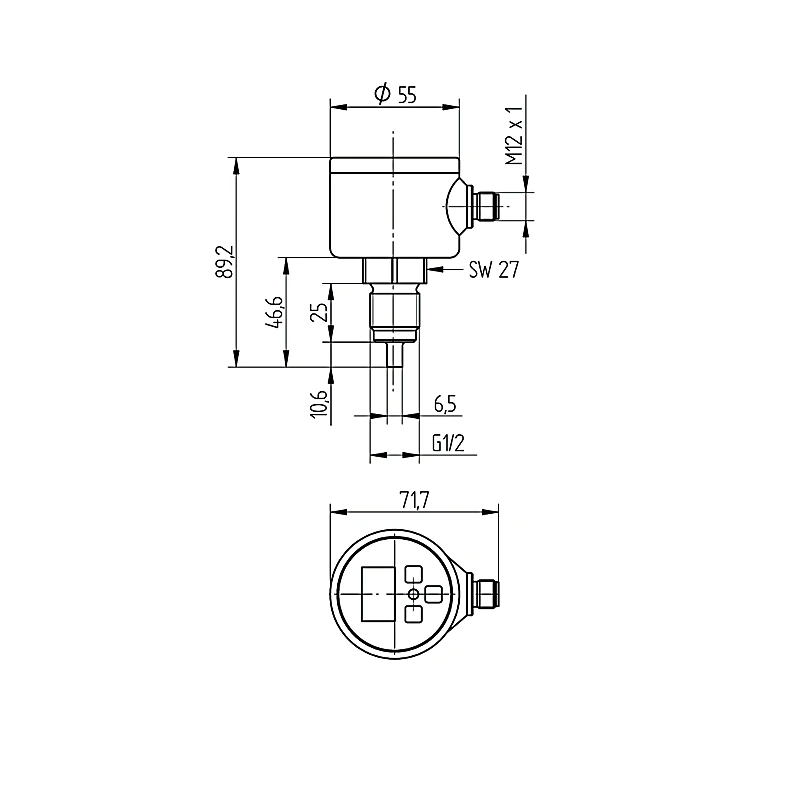

• Process Connection: G 1/2"
• Process Connection Length (PCL): 47 mm
• Probe Length (PL): 10 mm
• Weight: 275 g
• MTTFd (EN ISO 13849-1): 766.91 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Analog Output: yes
• Relay -NO: yes
• Circuit: NC, NC/NO, NO
• Other parameters: Switching point
• Complementary Products: Seal G1/2" ZH5G002, IO-Link converter
