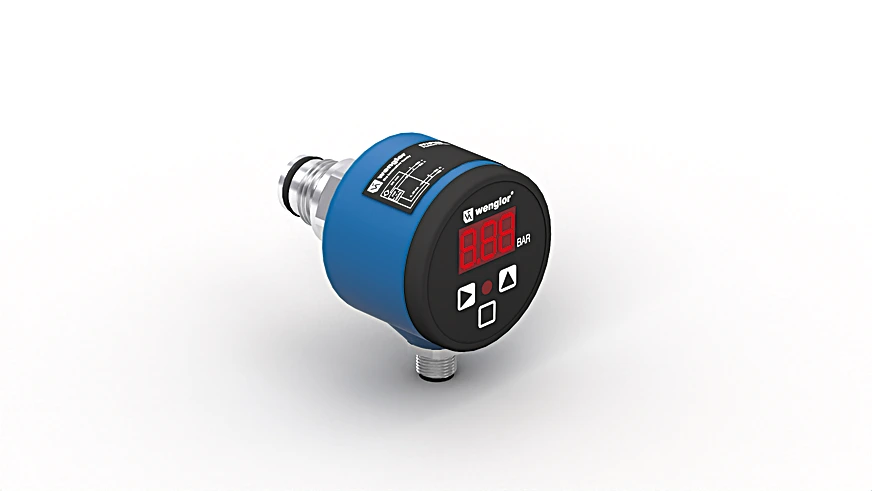

Wenglor FFAP228 Pressure Sensor

Features

• M12 plug housing electrically connected to the process connection for shielded conduction
• Measuring Range: 0 to 400 bar
• Switching point 1: 41 bar
• Switchback point 1 (hysteresis): 30 bar
• Switching point 2: 206 bar
• Switchback point 2 (hysteresis): 195 bar
• Measurement Type: relative
• Maximum overload pressure: 800 bar
• Bursting pressure: 1,600 bar
• Setting Range: 4 to 100 %
• Medium: Liquids, gases
• Response Time: 30 ms
• Resolution: 10 bit
• Switching Hysteresis: 2 %
• Measuring error: < ± 0.5 %
• Temperature Drift: 0.025 %/K
• Temperature of medium: -40°F to 176°F
• Ambient temperature: -40°F to 176°F
• EMC: DIN EN 61326-2-3
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
• Supply Voltage: 16 to 32 V DC
• Current Consumption (Ub = 24 V): < 60 mA
• Number of Switching Outputs: 2
• Switching Output/Switching Current: < 250 mA
• Switching Output Voltage Drop: < 2 V
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III

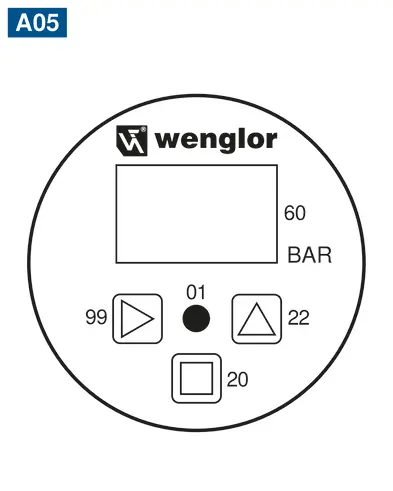

• Setting Method: Menu
• Housing Material: Plastic, PBT, Plastic, PC
• Material Control Panel: Polyester
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
• Degree of Protection: IP67 *

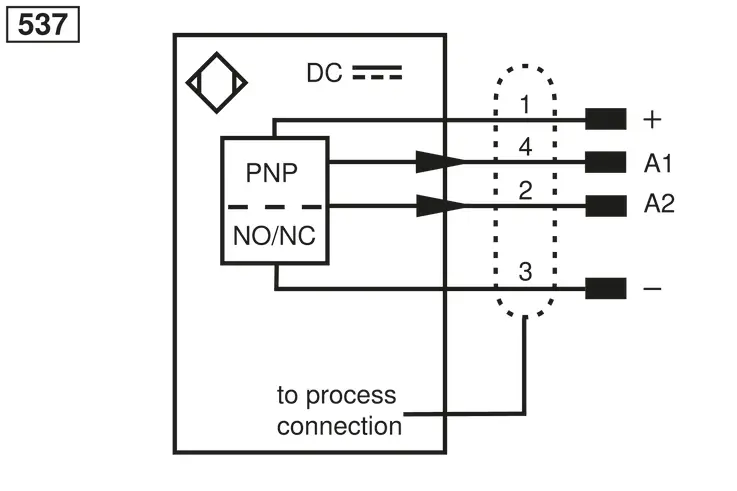

• Connection: M12 × 1; 4-pin

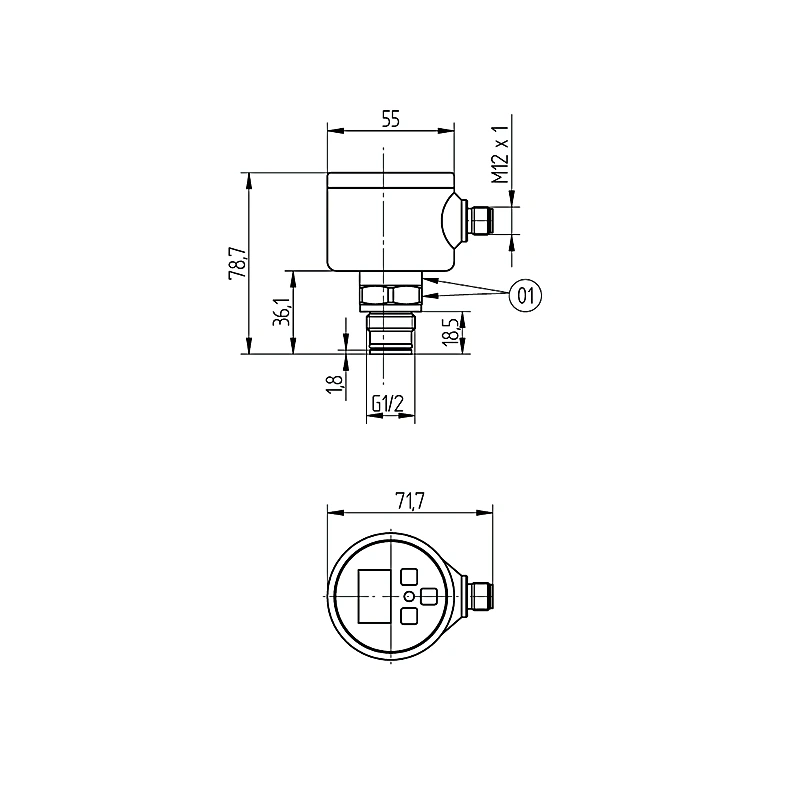

• Process Connection: G 1/2"
• Weight: 345 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NO: yes
• Circuit: NC, NC/NO, NO
• External Information: Customer-specific software, as modified switching points; M12 connector housing electrically connected with process connection for shielded cable
