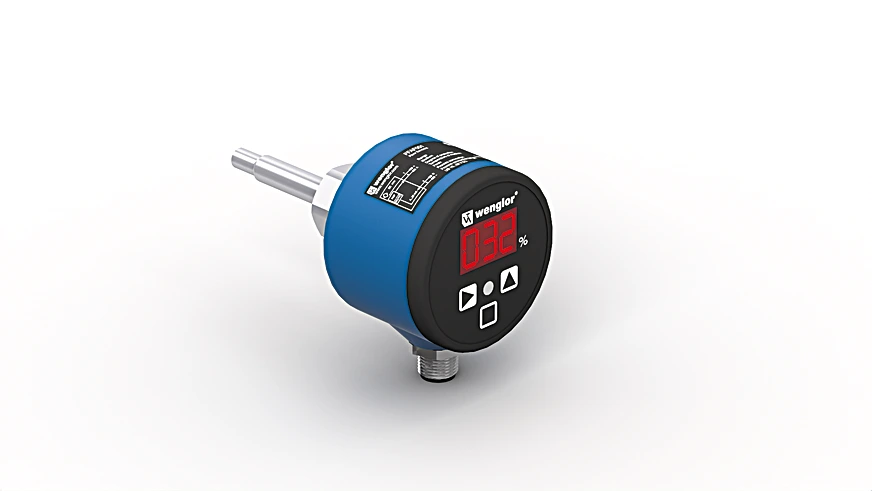

Wenglor FFAF031 Flow Sensor

Features

• Simple operation via the display
• Measurement independent of flow direction
• Installation in any position
• Highest precision of its class
• Display can be switched between flow and medium temperature
• Temperature of the medium: 32°F to 212°F (284°F for 24 hours without current measurement)
• Selectable measuring range: 10 to 300 cm/s
• Measuring range 1: 10 to 150 cm/s
• Setting range 1: 15 to 150 cm/s
• Measuring range 2: 20 to 300 cm/s
• Setting range 2: 30 to 300 cm/s
• Medium: Water
• Measuring error (total): 2 %
• MTTFd (EN ISO 13849-1): 766.91 a
• Switching Hysteresis: 5 %
• Temperature gradient: 30 K
• Response time in case of temperature jump: 10 s
• Temperature of medium: 32°F to 212°F
• Temperature of the medium, short-term: 284°F
• Ambient temperature: -4°F to 158°F
• Pressure Resistance: 60 bar
• EMC: DIN EN 60947-5-9
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 20 g (10 to 2000 Hz)
• Supply Voltage: 16 to 32 V DC
• Current Consumption (Ub = 24 V): 60 mA
• Number of Switching Outputs: 1
• Analog Output: 4 to 20 mA
• Signal source: Flow
• Response Time: 1 to 5 s
• Relay Output/Switching Current (24 VDC): < 1 A
• Current Output Load Resistance: < 500 Ohm
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III

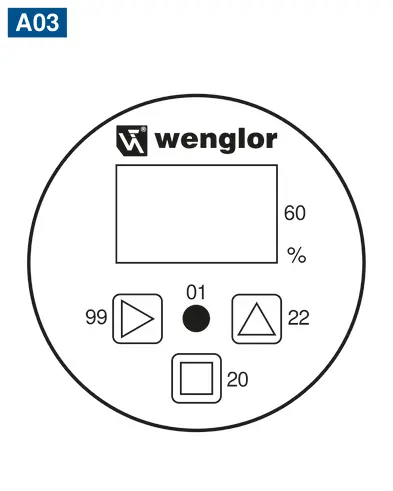

• Setting Method: Menu
• Housing Material: Plastic, PBT, Plastic, PC
• Material Control Panel: Polyester
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4435/316L), Rubber, FKM
• Degree of Protection: IP67 *

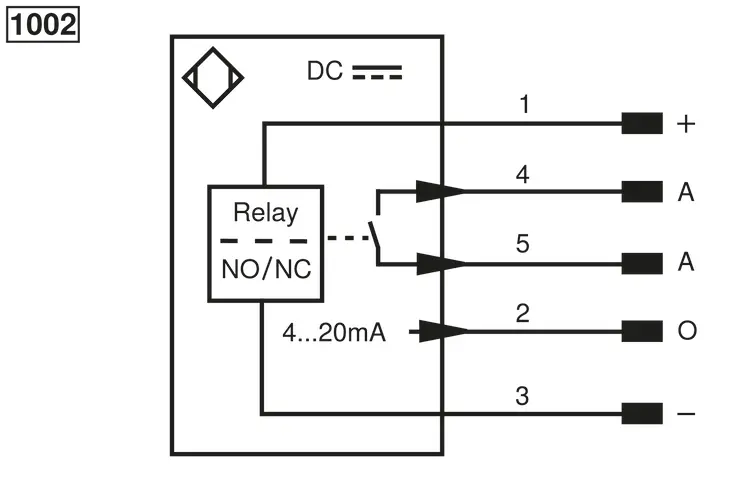

• Connection: M12 × 1; 5-pin
• Process Connection: Sealing cone M18 × 1,5

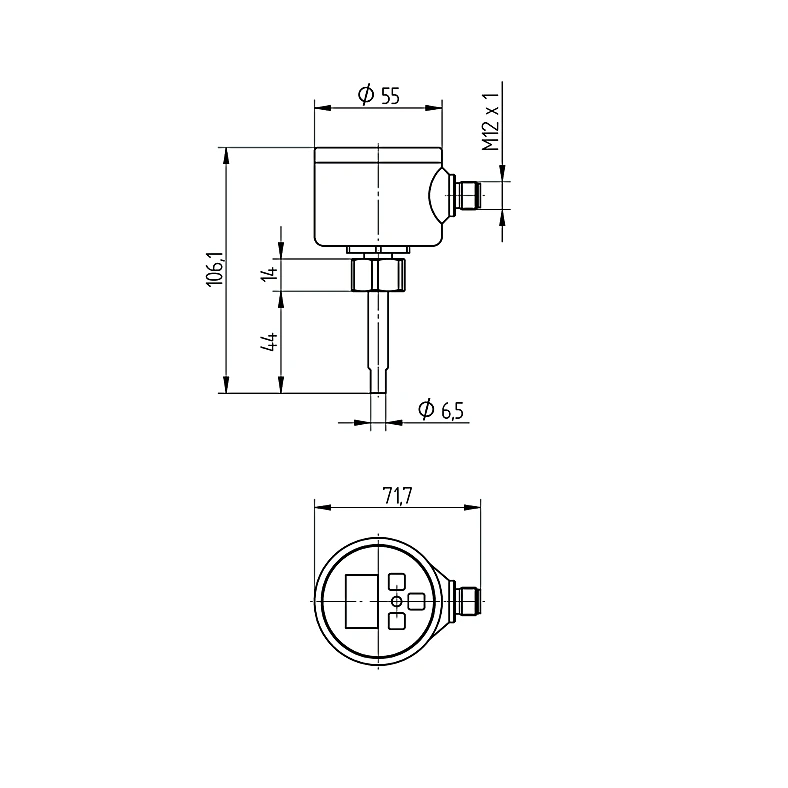

• Process Connection Length (PCL): 64 mm
• Probe Length (PL): 44 mm
• Weight: 177 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Analog output flow: yes
• PNP NO: yes
• Circuit: NC, NC/NO, NO
• Other parameters: Switching point, Selectable measurement range
• Complementary Products: IO-Link converter, Software
