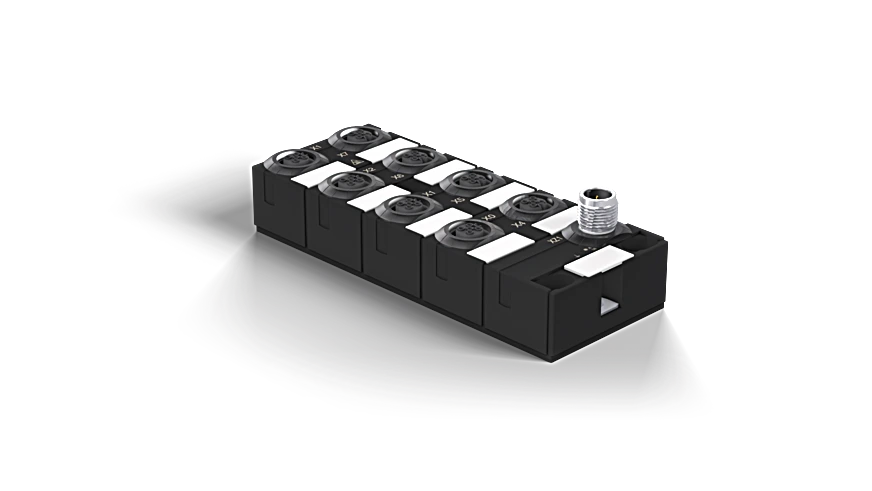

Wenglor EP8H001 IO-Link Hub for M12 × 1

Features

• 16 freely selectable input and output pins
• 8 digital I/O ports
• IP67 degree of protection for harsh industrial environments
• Supply Voltage: 18 to 30 V DC
• Max. Current Consumption: 4 A
• Max. current consumption per port: 0.5 A
• max. total current of the digital I/O ports: 4 A
• Sensor Supply Voltage (Pin 1): 2 A
• Temperature Range: -13°F to 158°F
• Digital I/O ports short circuit protected: yes
• Digital I/O ports overload protected: yes
• Digital I/O ports reverse polarity protected: yes
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Communication Mode IO-Link: COM3
• Interface: IO-Link V1.1
• Protection Class: III
• Shock resistance per DIN IEC 68-2-27: 50 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 15 g (5 to 500 Hz)
• Housing Material: Plastic, PBT/PC
• Degree of Protection: IP68

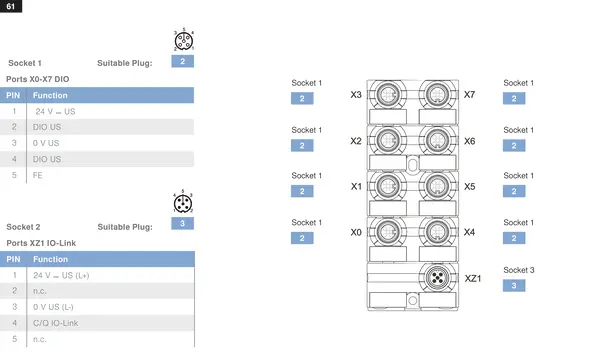

• Type of connection digital I/O ports: 8 × M12 × 1; 5-pin, A-coded
• IO-Link port connection type: M12 × 1, 5-pin, A-coded
• Weight: 200 g
• Scope of delivery: 1 × IO-Link hub
• Packaging unit: 1 Piece
• Interface: IO-Link
• Number of I/Os: 16 × switchable
• Inputs according to DIN EN 61131-2:2003: Type 1, Type 3
• Complementary Products: IO-Link Master, Closing caps
