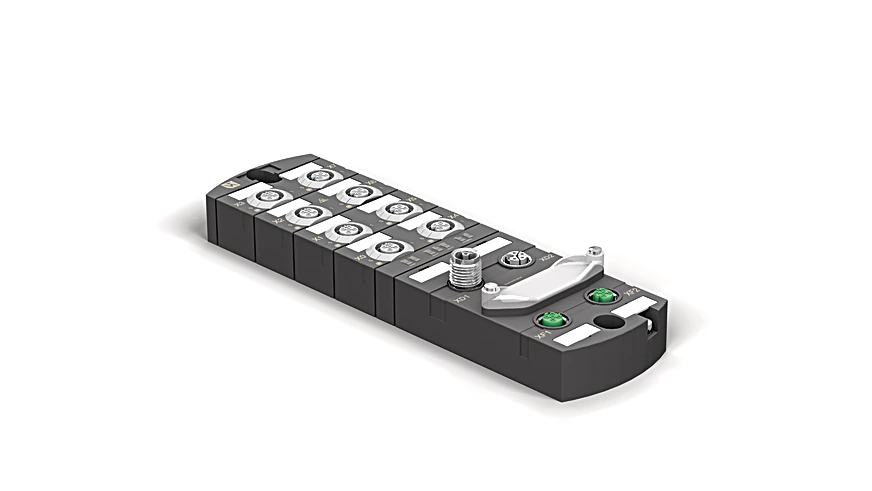

Wenglor EP8E001 IO-Link Master EtherNet/IP™

Features

• 8 flexible and configurable IO-Link ports
• Integrated cloud interfaces for Industrie 4.0 (IIoT-ready)
• IP67 degree of protection for harsh industrial environments
• Web server with a wide range of options, e.g. IODD interpreter
• Supply Voltage: 18 to 30 V DC
• Max. Current Consumption: 16 A
• Power consumption of device max.: 0.18 A
• Max. Switching Current Switching Outputs: 2 A
• Max. Switching Current Switching Outputs IO-Link: 2 A
• max. total current of the digital I/O ports: 10 A
• Sensor Supply Voltage (Pin 1): 2 A
• Temperature Range: -40°F to 158°F
• Atmospheric humidity: ≤95%
• Digital I/O ports short circuit protected: yes
• Digital I/O ports overload protected: yes
• Digital I/O ports reverse polarity protected: yes
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Standard I/O-Pins: 16
• Number of IO-link ports: 8
• Inputs according to DIN EN 61131-2:2003: Type 1 / Type 3
• Protection Class: III
• Shock resistance per DIN IEC 68-2-27: 50 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 20 g (58 to 150 Hz)
• Setting Method: Web server
• Housing Material: Plastic, PBT/PC
• Degree of Protection: IP67

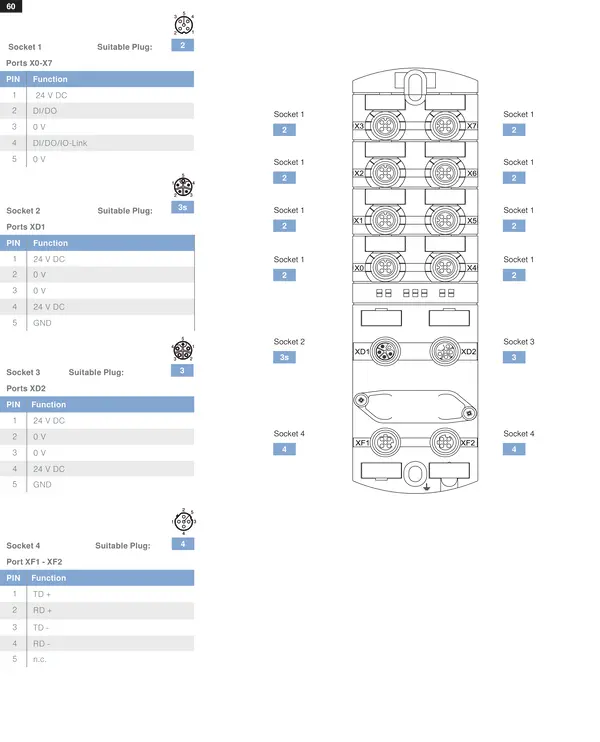

• Type of connection digital I/O ports: 8 × M12 × 1; 5-pin, A-coded
• Type of Connection Power: 2 × M12 × 1; 5-pin, L-coded
• Type of Connection Industrial Ethernet Ports: 2 × M12 × 1; 5-pin, D-coded
• Weight: 470 g
• Scope of delivery: 1 × IO-Link master
• IIoT functions: MQTT, OPC UA, REST API, Web server
• Interface: IO-Link, EtherNet/IP
• Number of Industrial Ethernet Ports: 2 × M12, 5-pin
• Number of I/Os: 16 × switchable
• Baud Rate Ethernet: 100 Mbit/s
• Communication Mode IO-Link: SIO, COM1, COM2, COM3
• Interface: Ethernet
• IO-Link Version: 1.1
• IO-link port: Class A, Class B
• Transmission rate: 100 Mbit/s
• Transmission Mode: Full Duplex
• Complementary Products: IO-Link converter, IO-Link hubs
