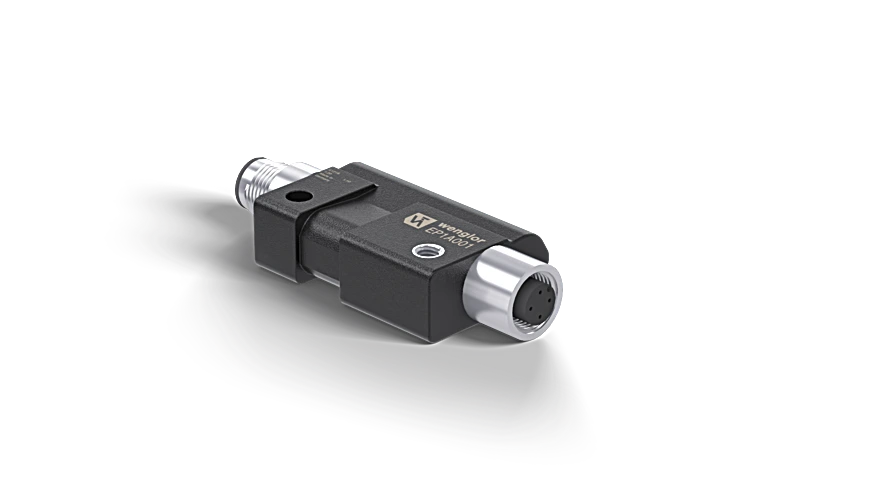

Wenglor EP1A001 IO-Link Converter for M12 × 1

Features

• IP67 degree of protection for harsh industrial environments
• Measuring range selectable from 0 to 20 mA, 4 to 20 mA, 0 to 10 V, –10 to 10 V
• Integration of a sensor with analog output into an IO-Link environment
• Temperature Range: -22°F to 158°F
• Max. sensor power supply: 200 mA
• Sensor Supply Voltage (Pin 1): 2 A
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: II
• Shock resistance per DIN IEC 68-2-27: 50 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 15 g (58 to 150 Hz)
• Housing Material: Plastic, ABS/PC
• Degree of Protection: IP65, IP67

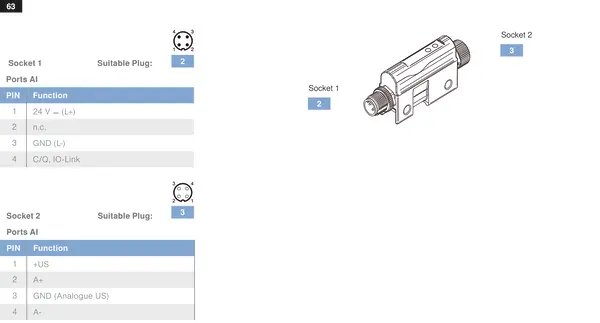

• IO-Link port connection type: M12 × 1, 4-pin, A-coded
• Weight: 53 g
• Scope of delivery: 1 × IO-Link converter
• Packaging unit: 1 Piece
• Interface: IO-Link
• IO-Link Version: 1.1
• Communication Mode IO-Link: COM2
• Complementary Products: IO-Link Master
