Wenglor EO98VB-U Through-Beam Sensor

Through-Beam Sensor.

$212.00
Part Number
  • EO98VB-U
Highlights...

Features

  • Ample performance reserves
  • Infrared light
  • Insensitive to contamination
  • Range: 10,000 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 8 °
  • Sensor Type: Receiver
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 250 Hz
  • Response Time: 2 ms
  • Temperature Drift: < 10 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67

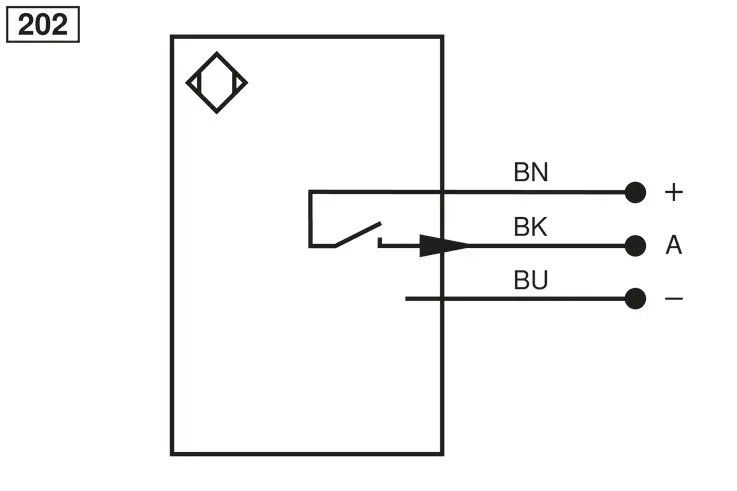

  • Connection: Cable; 3-wire
  • Cable length (L): 2 m
  • Cable Jacket Material: Plastic, PUR
  • Weight: 79 g
  • MTTFd (EN ISO 13849-1): 4,279.64 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
  • PNP NO: yes
  • Complementary Products: Path-Folding Mirror LA9
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
