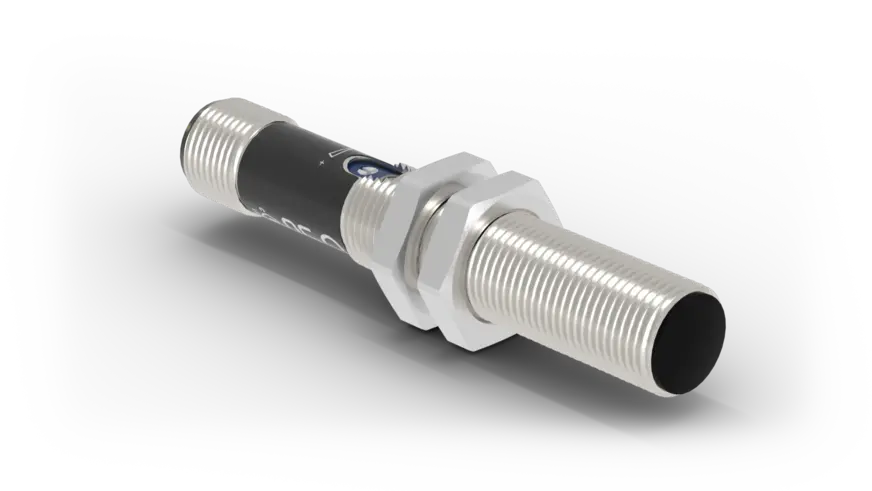

Wenglor EO98VB3S770 Through-Beam Sensor

Features

• Strong penetration when vision is obstructed (mist, smoke, dust)
• Insensitive to contamination
• Range: 15,000 mm
• Switching Hysteresis: < 15 %
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 50,000 Lux
• Opening Angle: 8 °
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 125 Hz
• Response Time: 4 ms
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

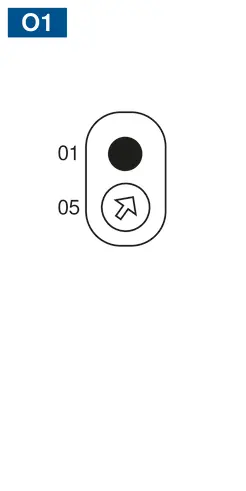

• Setting Method: Potentiometer
• Housing Material: Brass, nickel-plated
• Full Encapsulation: yes
• Degree of Protection: IP67

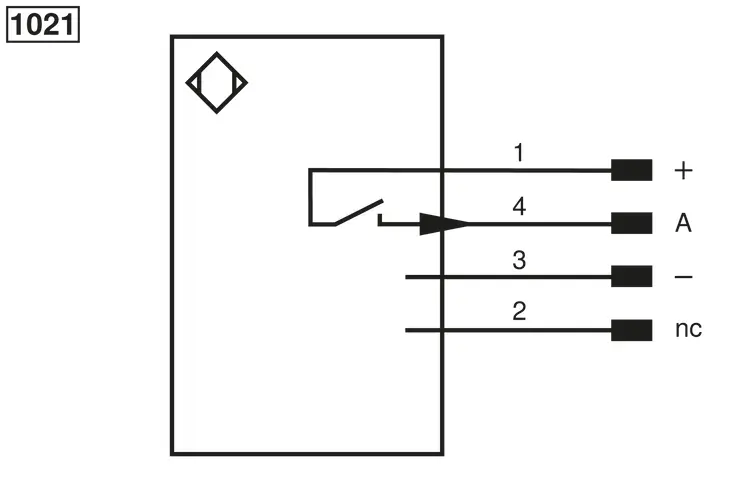

• Connection: M12 × 1; 4-pin
• Weight: 16 g
• MTTFd (EN ISO 13849-1): 4,237.93 a
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
• PNP NO: yes
• Complementary Products: PNP-NPN Converter BG2V1P-N-2M
