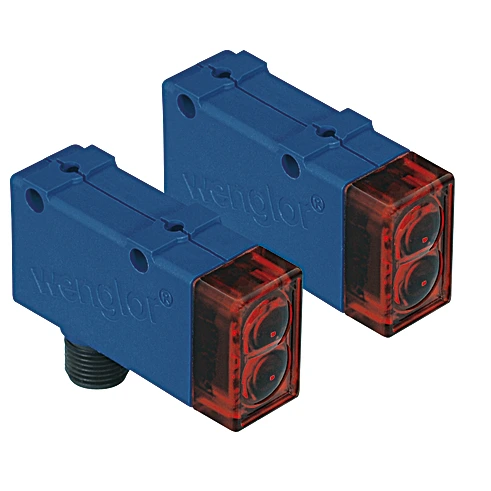

Wenglor EM98PA2 Through-Beam Sensor

Features

• Compact housing
• Red light
• Range: 10,000 mm
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 4 °
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 150 Hz
• Response Time: 3,300 µs
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

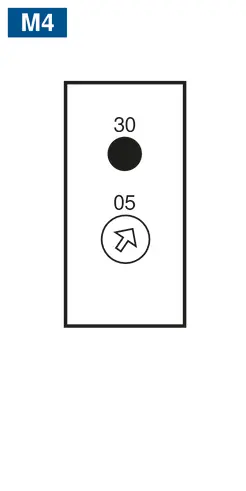

• Setting Method: Potentiometer
• Housing Material: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 50 g
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• Complementary Products: Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02, PNP-NPN Converter BG2V1P-N-2M
