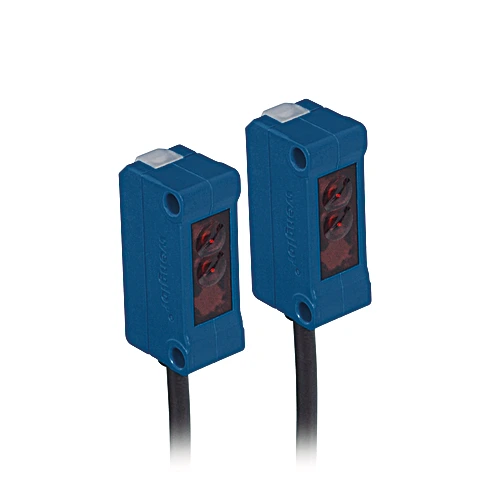

Wenglor EK96VD Through-Beam Sensor

Features

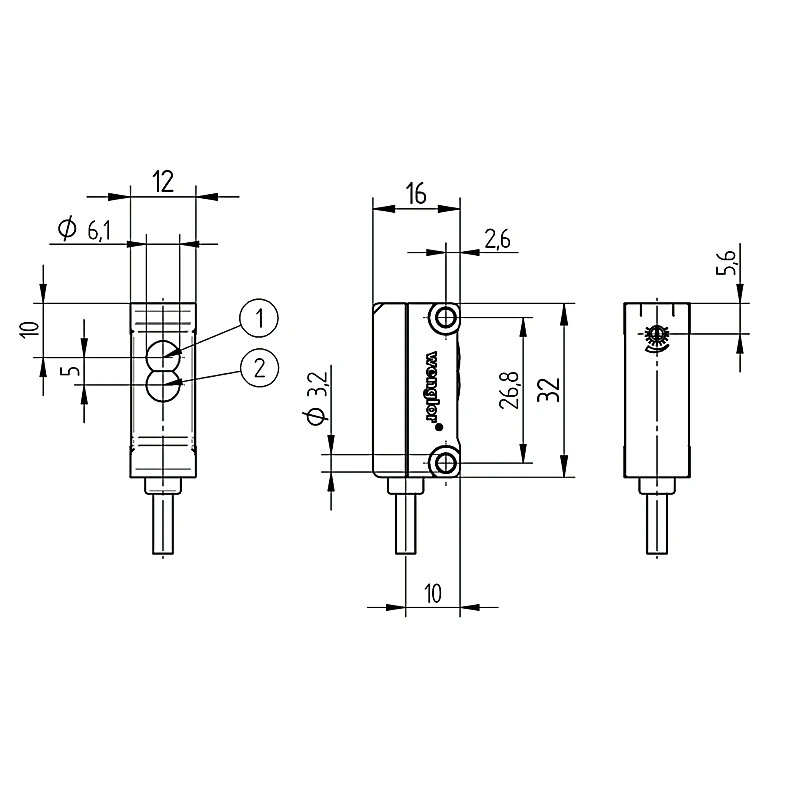

• Miniature design
• Rugged design with full encapsulation
• Range: 6,000 mm
• Smallest Recognizable Part: 1 mm
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 4 °
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 500 Hz
• Response Time: 1 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

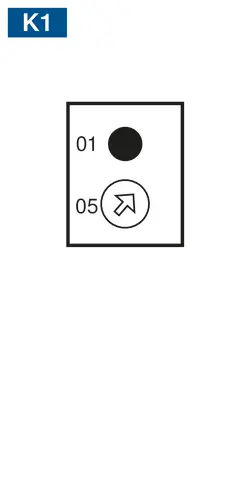

• Setting Method: Potentiometer
• Housing Material: Plastic
• Full Encapsulation: yes
• Degree of Protection: IP67

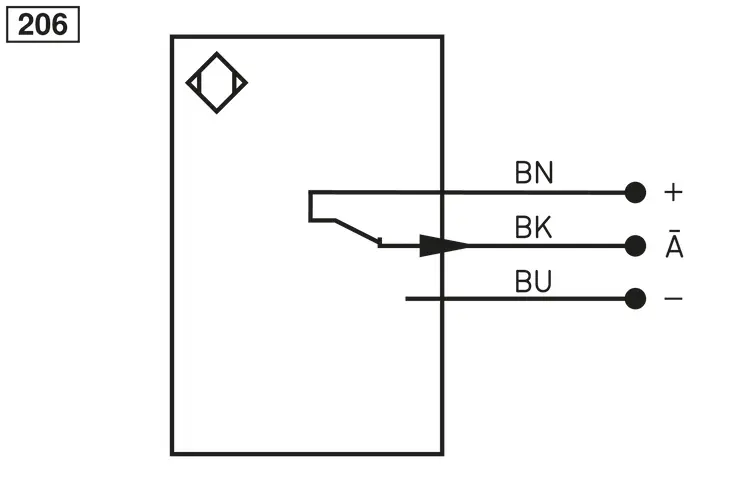

• Connection: Cable; 3-wire
• Cable length (L): 2 m
• Wire cross-section: 0.14 mm²
• Weight: 46 g
• Scope of delivery: 1 × BEF-SET-01 mounting set, 1 × initial start-up instructions, 1 × sensor
• PNP NC: yes
