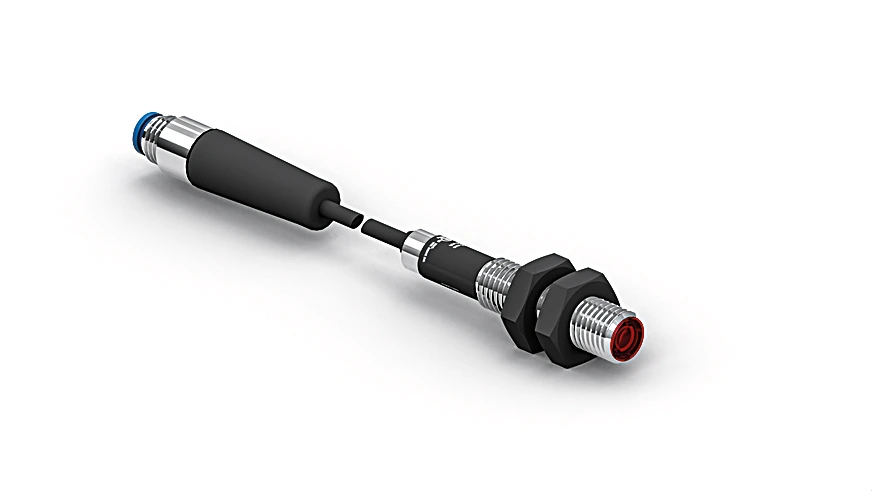

Wenglor EB77VD7K Through-Beam Sensor

Features

• Insensitive to contamination
• Ample performance reserves
• Infrared light
• Range: 1,500 mm
• Switching Hysteresis: < 15 %
• Light Source: Infrared Light
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 20 °
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 10 mA
• Switching Frequency: 500 Hz
• Response Time: 1 ms
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V2A (1.4305/303)
• Full Encapsulation: yes
• Degree of Protection: IP67

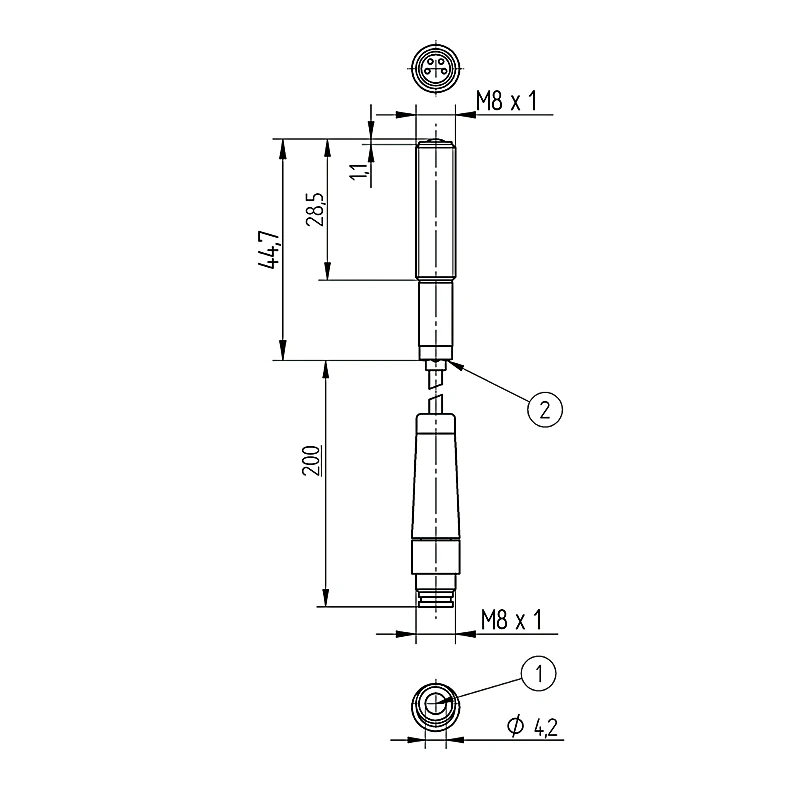

• Connection: M8 × 1; 4-pin
• Cable length (L): 200 mm
• Cable Jacket Material: PVC
• Weight: 32 g
• MTTFd (EN ISO 13849-1): 5,301.68 a
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M8-E002 hex nut, 1 × sensor

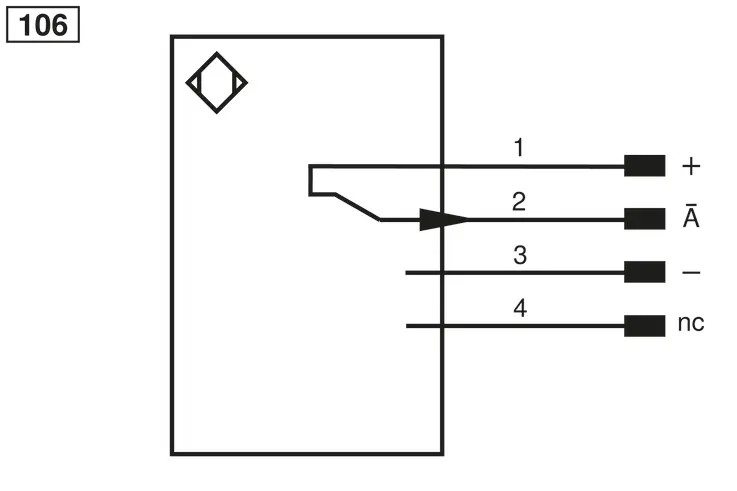

• PNP NC: yes
• Complementary Products: PNP-NPN Converter BG7V1P-N-2M
