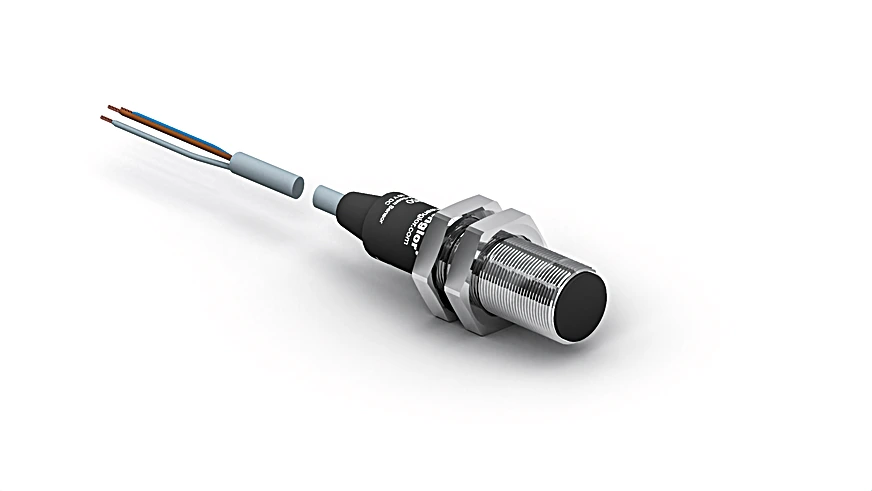

Wenglor EA250-P24 Through-Beam Sensor

Through-Beam Sensor.

$88.30
Part Number
  • EA250-P24
Highlights...

Features

  • For connection to LV250 controller
  • Functions reliably with severe contamination
  • No interactive influence
  • Light Source: Infrared Light
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 8 °
  • Sensor Type: Receiver
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Full Encapsulation: yes
  • Degree of Protection: IP67

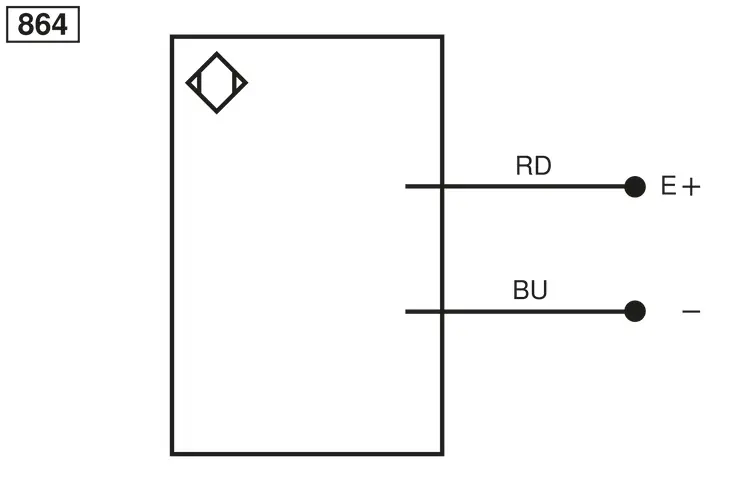

  • Connection: Cable; 2-wire
  • Cable length (L): 6 m
  • Cable Jacket Material: PVC
  • Weight: 159 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M12-E001 hex nut, 1 × sensor
  • For connection to LV250 control module: yes
  • Complementary Products: Controller LV250
These through-beam sensors work in combination with the LV250 controller. They can be freely positioned as desired. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments.
