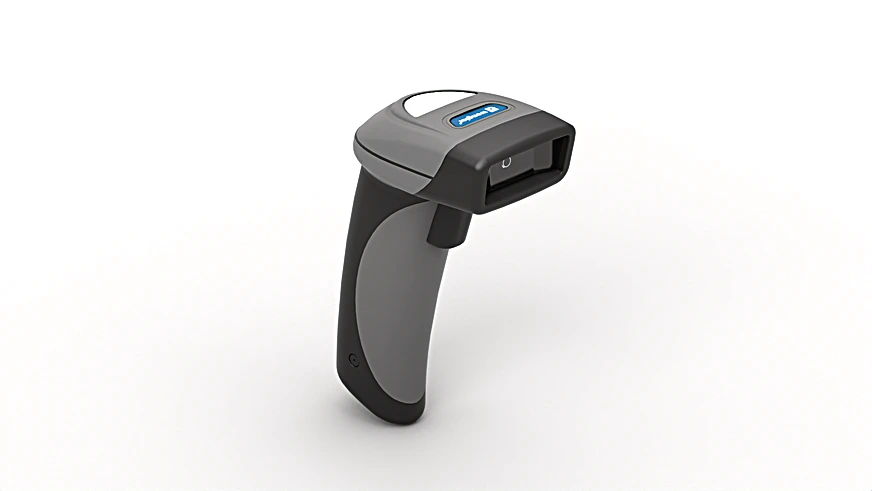

Wenglor CSMH010 1D/2D Handheld Scanner

1D/2D Handheld Scanner.

$1,379.00
Part Number
  • CSMH010
Highlights...

Features

  • Decoding of DPM codes (e.g. needle-punched, etched or embossed codes)
  • Direct feedback after decoding (vibration, visual/acoustic signal)
  • Resistant to cleaning agents
  • Quick alignment and capture of 1D/2D codes

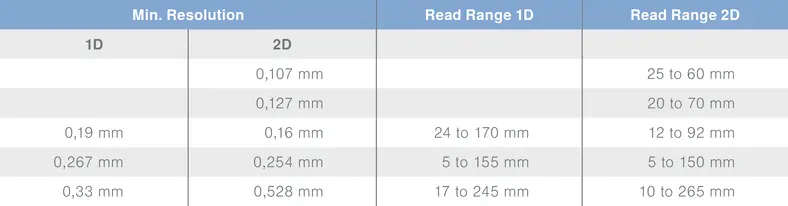

  • Read Range: 5 to 265 mm
  • Resolution: 1,280 × 960 Pixel
  • Light Source: Red Light
  • Max. Ambient Light: 97,000 Lux
  • Barcode Printing Contrast: > 15 %
  • Temperature Range: -4°F to 131°F
  • Supply Voltage: 5 V DC
  • Current Consumption (Ub = 5V): < 350 mA
  • Interface: RS-232
  • Transmission rate: 115.2 Kbit/s
  • Acoustic signal: yes
  • Vibration signal: yes
  • Visual signal: yes
  • Housing Material: Plastic, PC
  • Degree of Protection: IP54
  • Connection: Prewired
  • Cable length (L): 2.4 m
  • Shock Resistance: > 50 *
  • Halogen-free: yes
  • Weight: 564 g
  • DPM codes: yes
  • RS-232 Interface: yes
  • Complementary Products: Fieldbus Gateway ZAGxxxN01, EPGG001, Interface Cable ZDNV001, Interface Cable ZDNV002, Connection Line ZCLL001, Software
These wenglor handheld scanners are suitable for mobile use with needle punched, printed, laser printed and etched 1D and 2D barcodes on a wide variety of different materials. Good scanning results are even obtained with poor code quality. Readable code types: DataMatrix, DataMatrix rectangle extension, QR codes, micro QR codes, QR model 1, Aztec code, PDF417, composite, Grid Matrix, Maxicode, micro PDF417, PDF417, code 11, code 32, code 39, code 49, code 128, interleaved 2 of 5, Telepen, MSI Plessey, Plessey, Pharmacode, UPC/EAN/JAN, Codabar, Codablock F, GS1 Databar, GS1 composite, Planet, Code93, BC412, Postal Codes.
