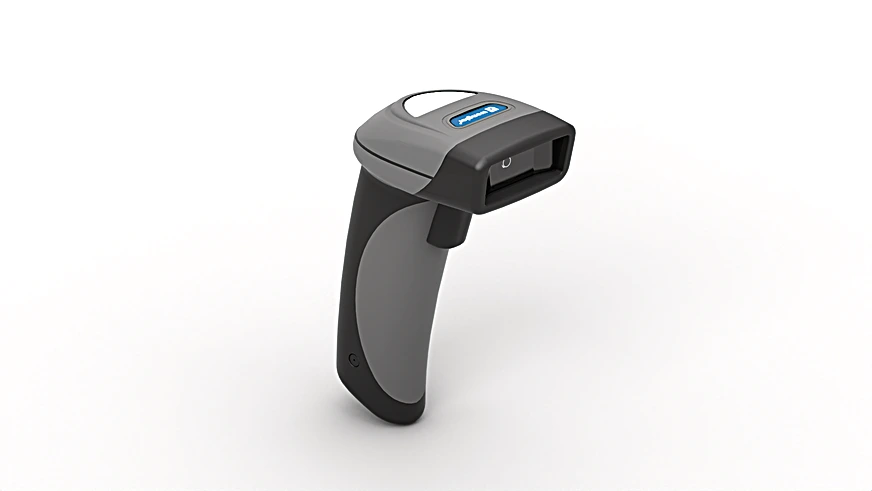

Wenglor CSMH008 1D/2D Handheld Scanner

1D/2D Handheld Scanner.

$640.00
Part Number
  • CSMH008
Highlights...

Features

  • Direct feedback after decoding (vibration, visual/acoustic signal)
  • Resistant to cleaning agents
  • Quick alignment and capture of 1D/2D codes

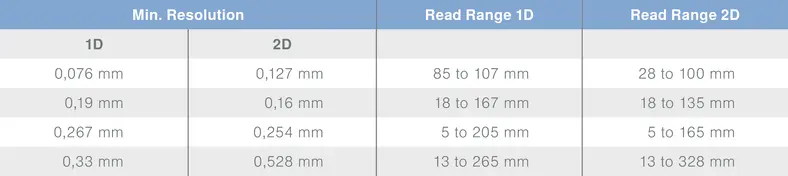

  • Read Range: 5 to 328 mm
  • Resolution: 1,280 × 960 Pixel
  • Light Source: Red Light
  • Max. Ambient Light: 97,000 Lux
  • Barcode Printing Contrast: > 15 %
  • Temperature Range: -4°F to 131°F
  • Supply Voltage: 5 V DC
  • Current Consumption (Ub = 5V): < 350 mA
  • Interface: RS-232
  • Transmission rate: 115.2 Kbit/s
  • Acoustic signal: yes
  • Vibration signal: yes
  • Visual signal: yes
  • Housing Material: Plastic, PC
  • Degree of Protection: IP54
  • Connection: Prewired
  • Cable length (L): 2.4 m
  • Shock Resistance: > 50 *
  • Halogen-free: yes
  • Weight: 557 g
  • Scope of delivery: 1 × handheld scanner, 1 × ZDNV001
  • RS-232 Interface: yes
  • Complementary Products: Fieldbus Gateway ZAGxxxN01, EPGG001, Interface Cable ZDNV002, Connection Line ZCLL001, Software
These wenglor handheld scanners are suitable for the mobile scanning of 1D and 2D codes on a wide variety of different materials. Good scanning results are even obtained with poor code quality. Readable code types: DataMatrix, Data Matrix Rectangle Extension, QR Code, Micro QR Code, QR Model 1, Aztec Code, PDF417, Composite, Grid Matrix, Maxicode, Micro PDF417, PDF417, Code 11, Code 32, Code39, Code 49, Code128, Interleaved 2 of 5, Telepen, MSI Plessey, Plessey, Pharmacode, UPC/EAN/JAN, Codabar, Codablock F, GS1 Databar, GS1 Composite, Planet, Code93, BC412, Postal Codes, Trioptic.
