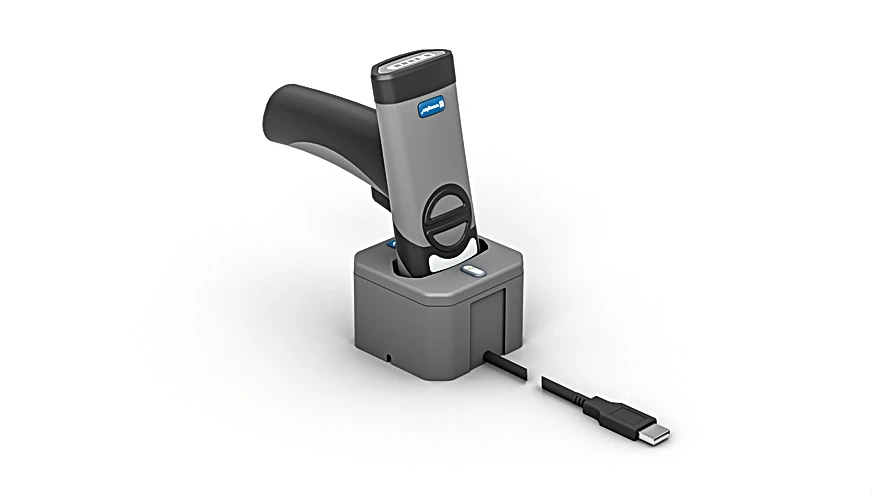

Wenglor CSLH003 1D/2D Handheld Scanner
1D/2D Handheld Scanner.
Overview
Features
- Resistant to cleaning agents
- Direct feedback after decoding (vibration, visual/acoustic signal)
- Wireless data transmission
- Decoding of DPM codes (e.g. needle-punched, etched or embossed codes)

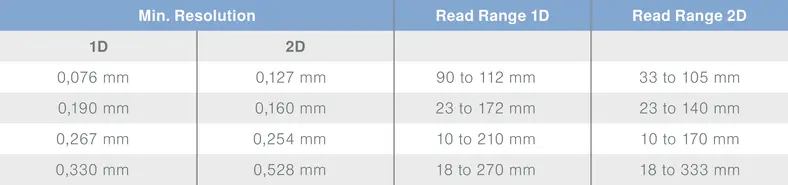

- Read Range: 10 to 333 mm
- Resolution: 1,280 × 960 Pixel
- Light Source: Red Light
- Wavelength: 650 nm
- Max. Ambient Light: 97,000 Lux
- Temperature Range: -4°F to 131°F
- Atmospheric humidity: 5 to 95%, non-condensing
- Supply Voltage: 5 V DC
- Current Consumption (Ub = 5V): < 250 mA
- Battery operating hours per charge: 50,000 scans
- Interface: Bluetooth (Class II)
- Acoustic signal: yes
- Vibration signal: yes
- Visual signal: yes
- Housing Material: Plastic, PPSU
- Degree of Protection: IP65
- Shock Resistance: > 50 *
- Halogen-free: yes
- Weight: 508 g
- DPM codes: yes
- Scope of delivery: 1 × handheld scanner, 1 × ZNNG047, 1 × ZNNG048
- Bluetooth Interface: yes
- USB Interface: yes
- Complementary Products: Software DNNF018
Description
These wenglor handheld scanners are suitable for mobile use with needle punched, printed, laser printed and etched 1D and 2D barcodes on a wide variety of different materials. Good scanning results are even obtained with poor code quality. Readable code types: DataMatrix, DataMatrix rectangle extension, QR codes, micro QR codes, QR model 1, Aztec code, PDF417, composite, Grid Matrix, Maxicode, micro PDF417, PDF417, code 11, code 32, code 39, code 49, code 128, interleaved 2 of 5, Telepen, MSI Plessey, Plessey, Pharmacode, UPC/EAN/JAN, Codabar, Codablock F, GS1 Databar, GS1 composite, Planet, Code93, BC412, Postal Codes.
