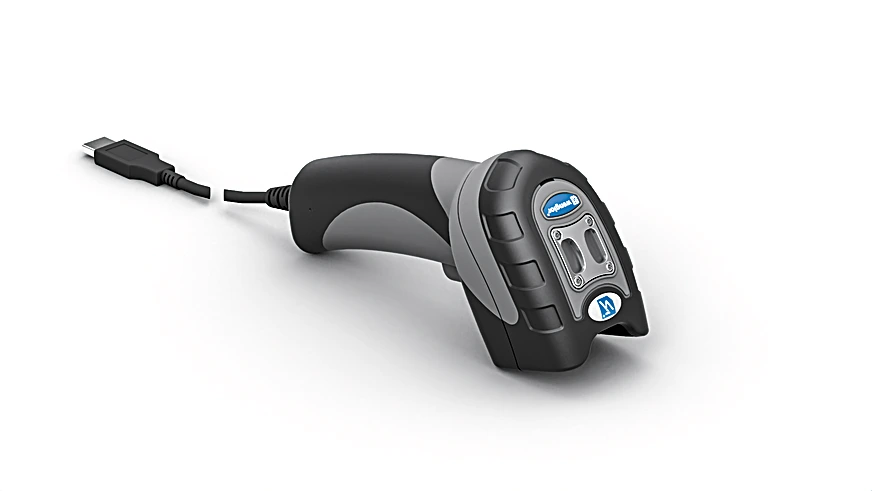

Wenglor CSHH001 1D/2D Handheld Scanner
1D/2D Handheld Scanner.
Overview
Features
- Excellent reading performance on glossy or curved surfaces
- Innovative illumination technology
- Rugged housing design
- Decoding of DPM codes (e.g. needle-punched, etched or embossed codes)
- Read Range: 0 to 51 mm
- Resolution: 1,280 × 960 Pixel
- Light Source: Red Light/Blue Light
- Max. Ambient Light: 97,000 Lux
- Barcode Printing Contrast: > 15 %
- Temperature Range: -4°F to 131°F
- Supply Voltage: 5 V DC
- Power Consumption: 2,040 mW
- Interface: USB
- Acoustic signal: yes
- Vibration signal: yes
- Visual signal: yes
- Housing Material: Plastic, PC
- Degree of Protection: IP54
- Connection: Prewired
- Cable length (L): 1.8 m
- Shock Resistance: > 50 *
- Halogen-free: yes
- Weight: 110 g
- DPM codes: yes
- Scope of delivery: 1 × handheld scanner, 1 × ZDNV002
- USB Interface: yes
- Complementary Products: Interface Cable ZDNV001, Software
Description
These wenglor handheld scanners are suitable for mobile use with needle punched, printed, laser printed and etched 1D and 2D barcodes on a wide variety of different materials. Good scanning results are even obtained with poor code quality. Readable code types: DataMatrix, DataMatrix rectangle extension, QR codes, micro QR codes, QR model 1, Aztec code, PDF417, composite, Grid Matrix, Maxicode, micro PDF417, PDF417, code 11, code 32, code 39, code 49, code 128, interleaved 2 of 5, Telepen, MSI Plessey, Plessey, Pharmacode, UPC/EAN/JAN, Codabar, Codablock F, GS1 Databar, GS1 composite, Planet, Code93, BC412, Postal Codes.
