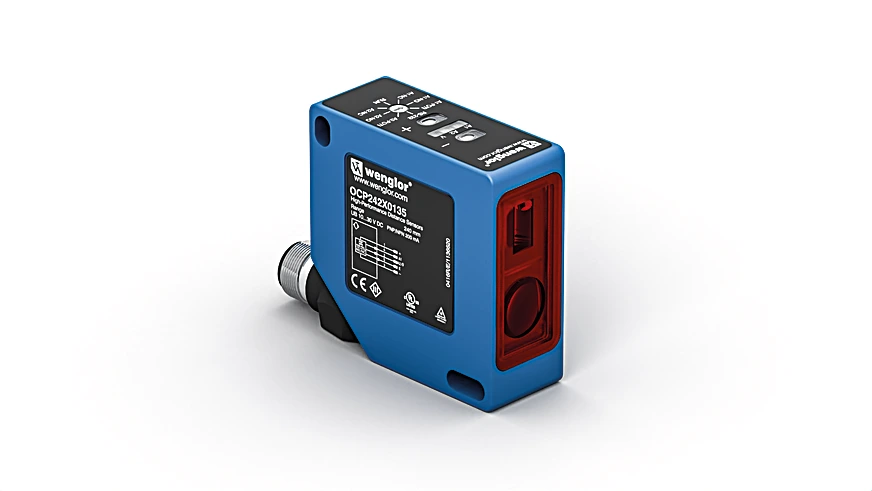

Wenglor CP70QXVT80 Laser Distance Sensor Triangulation

Features

• CMOS line array
• Highly accurate switching distance
• Minimal switching hysteresis
• Switching point independent of material, color and brightness
• Range: 660 mm
• Setting Range: 60 to 660 mm
• Switching Hysteresis: < 1 %
• Light Source: Laser (red)
• Wavelength: 655 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 50 mA
• Switching Frequency: 250 Hz
• Response Time: 2 ms
• On-/Off-Delay (RS-232): 0 to 1 s
• Temperature Drift: < 50 µm/K
• Temperature Range: -13°F to 140°F
• Number of Switching Outputs: 2
• Switching Output Voltage Drop: < 1.5 V
• Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Teach Mode: HT, VT, TP
• Transmission rate: 38,400 Bd
• Protection Class: III
• FDA Accession Number: 0820587-000

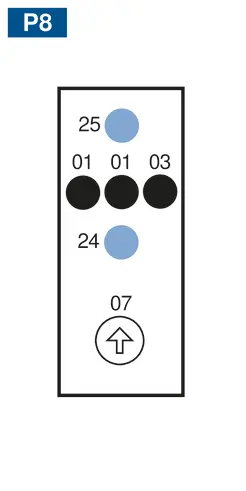

• Setting Method: Teach-In
• Housing Material: Plastic, ABS, Plastic, PC
• Degree of Protection: IP67

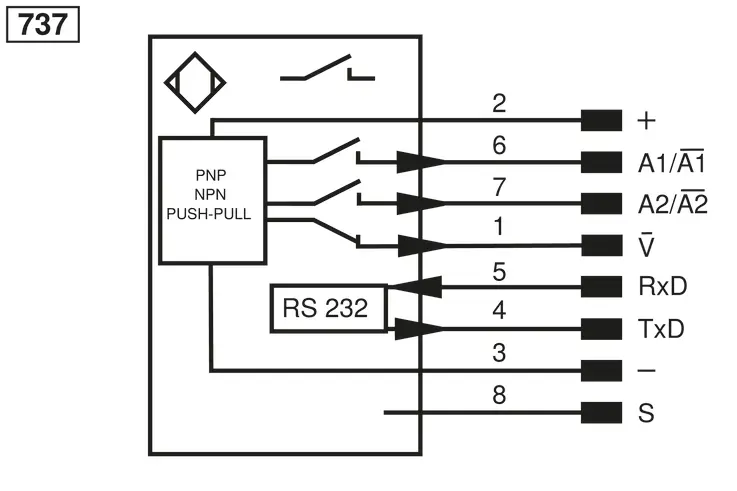

• Connection: M12 × 1; 8-pin
• Optic Cover: Plastic, PMMA

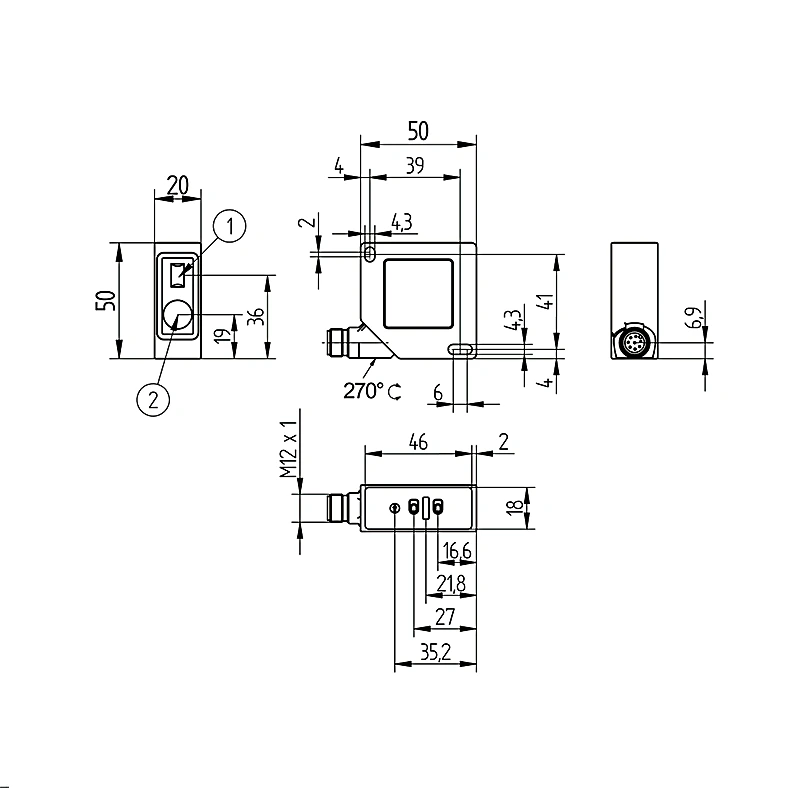

• Weight: 45 g
• Scope of delivery: 1 × initial start-up instructions, 1 × laser warning sign, 1 × sensor
• Error Output: yes
• PNP NO: yes
• RS-232 Interface: yes
• Output: Error Output, Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
• Other parameters: Exposure time, Laser light, Switching hysteresis, Teach-in mode, Off-delay, On-delay
• Detection Range: 60 mm, 660 mm
• Spot Size: 0,6 × 2,5 mm, 3 × 8 mm
• Complementary Products: Interface Cable S232W3, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Software, Dust extraction tube
